Overview

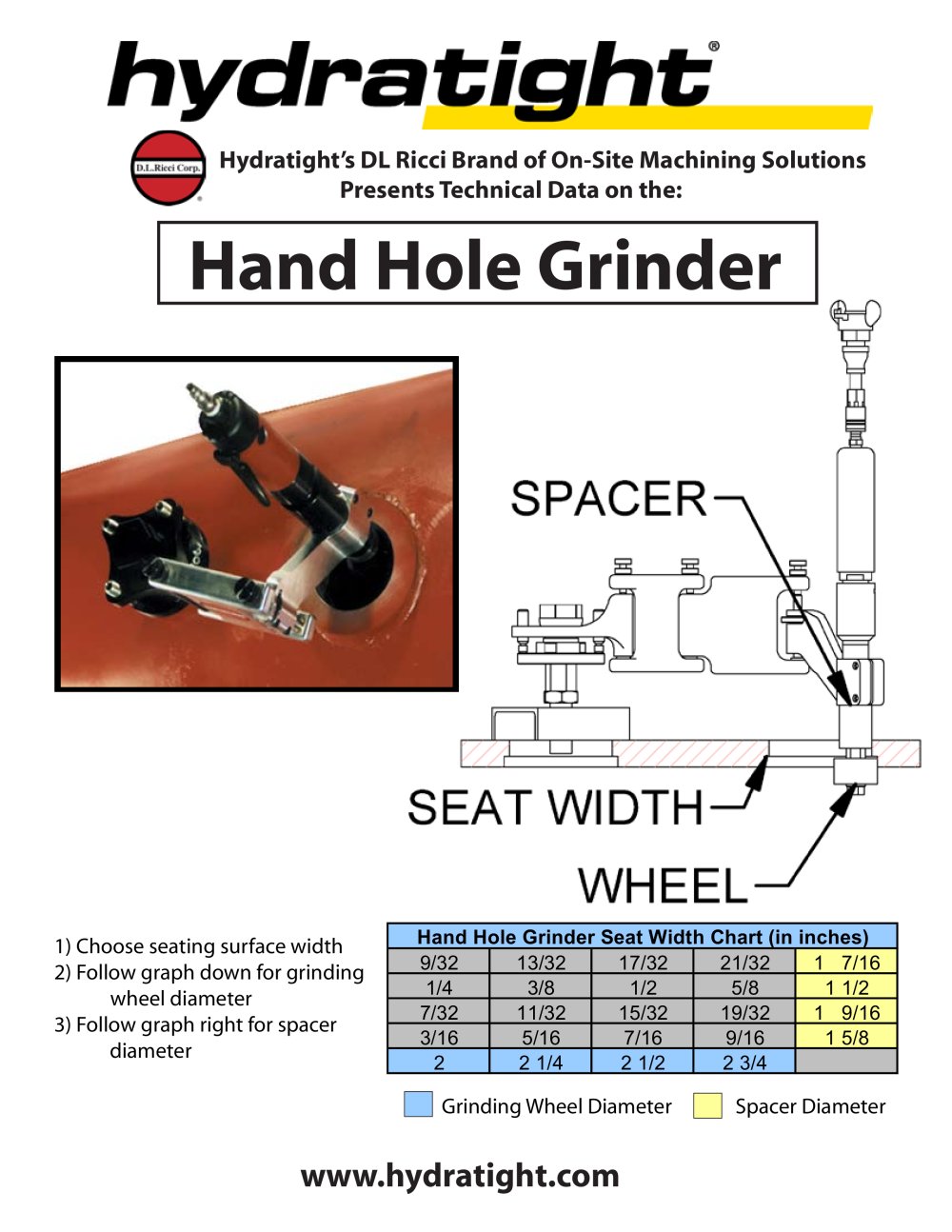

This document provides technical data related to Hydratight’s DL Ricci brand Hand Hole Grinder, a tool used in on-site machining solutions.

Hand Hole Grinder Seat Width Chart

The chart presents measurements in inches for seat widths, grinding wheel diameters, and spacer diameters. It is designed to assist users in selecting the appropriate components for the grinder.

Instructions for Use

1. Choose the seating surface width from the chart.
2. Follow the chart vertically downward to identify the corresponding grinding wheel diameter.
3. Follow the chart horizontally to the right to determine the appropriate spacer diameter.

Key Dimensions

• Seat Widths: Range from 9/32 inch up to 2 3/4 inches.
• Grinding Wheel Diameters: Include sizes such as 1/4, 3/8, 1/2, 5/8, 1, 1 1/2 inches.
• Spacer Diameters: Correspond to grinding wheel sizes and seating widths to ensure proper fit and function.

Critical Information

The chart is essential for ensuring the correct combination of seat width, grinding wheel diameter, and spacer diameter, which is critical for the effective and safe operation of the Hand Hole Grinder.

Users should carefully follow the selection procedure to avoid mismatches that could lead to tool malfunction or damage.
