geniSYS 220 Portable 3D CNC Mill

geniSYS 220 Portable 3D CNC Mill

Product catalog summary

Overview
The document introduces advanced in-situ machining capabilities, emphasizing complex 3D milling and thread cutting. It highlights the ease of large diameter boring and the precision of CNC programs, ensuring safety with hands-free operation and a compact design for quick setup.

Key Specifications

3D milling and thread cutting for various industries including turbines, petrochemical, pharmaceutical, and automotive.
Maximum bore diameter of 220mm (8¾”) and depth of 300mm (12”).
High accuracy CNC machining with repeatable quality.
Hands-free operation for enhanced safety.

Applications

Suitable for turbines, reactor vessels, diesel engines, marine propulsion, and more.
Applicable in sectors like nuclear, chemical, and power generation.

Dimensions and Weight

3D CNC Milling Machine: 440 x 700 x 640mm, 235kg (17.32" x 27.6" x 25.2", 518lbs).
Power Supply & Motion Control Cabinet: 770 x 800 x 600mm, 120kg (30.3" x 31.5" x 23.6", 264.5lbs).
CNC Control Terminal: 360 x 360 x 320mm, 6kg (14.7" x 14.7" x 12.6", 13.5lbs).

Power Requirements

Europe/R.o.W: 380 volts, 3 phase + neutral, 50-60 Hz, 50-60 watts.
USA: 480/400 volts, 3 phase + neutral, 50-60 Hz, 50-60 watts.

Benefits & Features

High accuracy portable CNC for on-site machining, eliminating dismantling and transport costs.
Ultimate safety with hands-free, guarded cutting and low stress cuts.
Powerful and stable cutting, capable of handling most metals and impurities.
Quick setup with a small footprint and flexible operation for a wide range of applications.

Conclusion
The document underscores the unmatched accuracy and efficiency of Hydratight's 3D CNC milling and thread boring services, which have proven to keep projects on track and satisfy customers.

Catalog excerpts

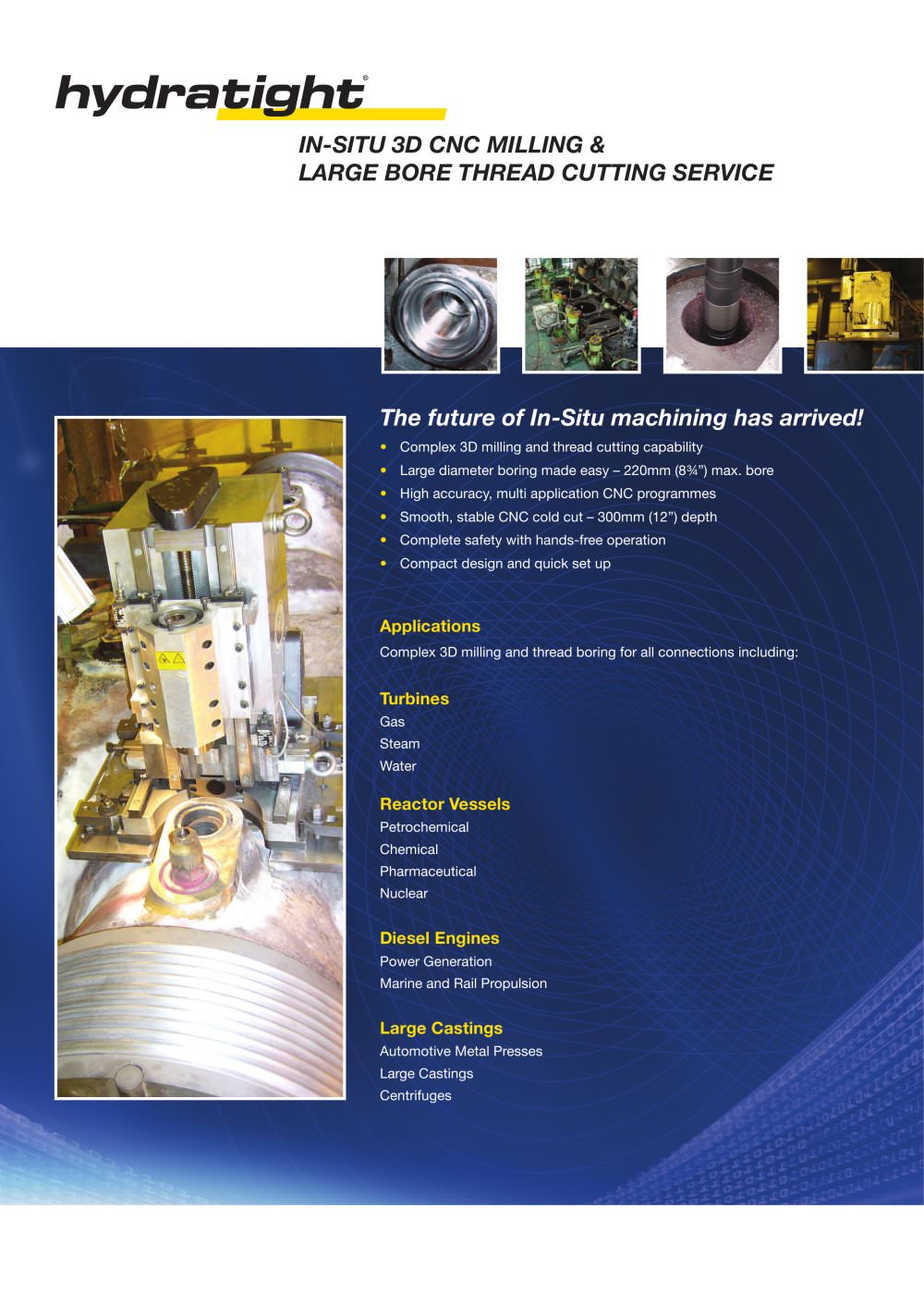

The future of In-Situ machining has arrived! • Complex 3D milling and thread cutting capability • Large diameter boring made easy – 220mm (8¾”) max. bore • High accuracy, multi application CNC programmes • Smooth, stable CNC cold cut – 300mm (12”) depth • Complete safety with hands-free operation • Compact design and quick set up Applications Complex 3D milling and thread boring for all connections including: Turbines Gas Steam Water Reactor Vessels Petrochemical Chemical Pharmaceutical Nuclear Diesel Engines Power Generation Marine and Rail Propulsion Large Castings Automotive Metal Presses Large Castings Centrifuges IN-SITU 3D CNC MILLING & LARGE BORE THREAD CUTTING SERVICE
