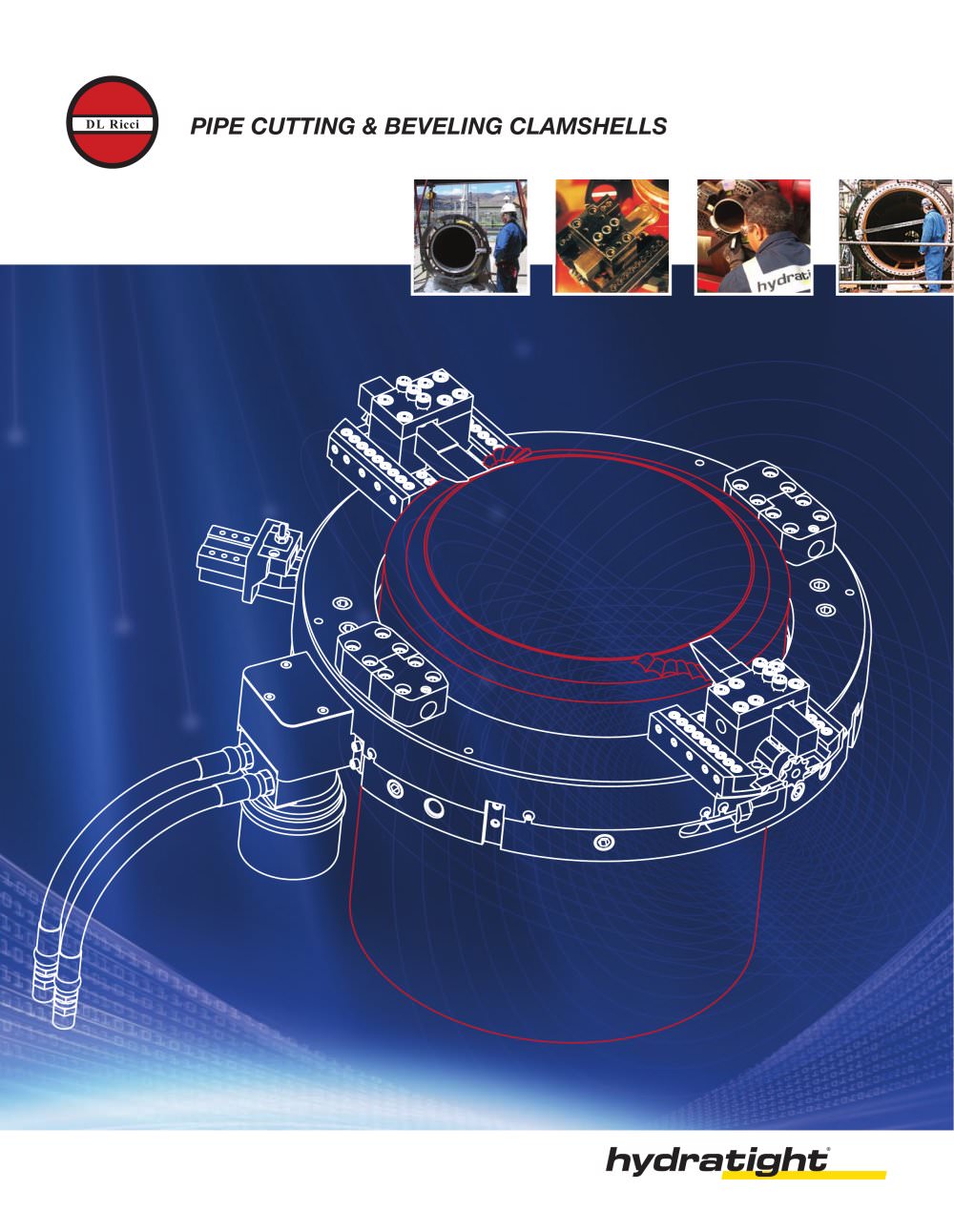

PIPE CUTTING & BEVELING CLAMSHELLS

One Company, Total Support, Complete Solutions Over many years Hydratight has provided world class bolted joint solutions and continues to set international standards in joint integrity for our customers on a global scale. 2 3 One Company Hydratight works in partnership with the world’s leading OEMs using the latest computer technology and market leading development facilities. We continue to push back the boundaries of technology to provide fast, accurate and reliable solutions to critical assembly problems. Our people are the key to our success – Hydratight’s staff is qualified, competent,...

* “D” dimension (or cutline) may change with different tooling. Contact consultant for specifics. MC Clamshells 4 5 NB Clamshells • MC is designed for on-site severing and beveling on small piping and valve systems • Lightweight structure with low friction bearing design • Design adds strength, accuracy and minimized wear • Machine quickly splits and easily mounts on in-line piping systems • The compact design allows easy set-up in tight places • The low profile tool slides provide an even feed rate and rigidity • Used for cutting and beveling wall thickness up to .375" (9.5mm) thick on all alloys...

6 7 MS Clamshells HD Clamshells • The MS series is the latest addition to our clamshell line offering unsurpassed control and power • The new gear clamping feature and motor mount allow for faster, more secure set-ups and increased rigidity • Locator extensions are compatible with the NB Clamshells, tool blocks/slides are also compatible with the NB and HD series of clamshells • Provides ultimate longevity with the patented fully adjustable bearing design • Designed for severing, beveling, I.D. boring, flange facing and O.D. turning • Produces excellent surface finishes and holds tight tolerances...

8 9 Axial Feed Module Clamshell Casing Cutter • In just five months, Hydratight’s DL Ricci engineers designed and built this clamshell to cut and prep a giant steam generator surface • Patented bearing technology • Comes with a variety of attachments for accurate severing, beveling and facing • Machine rotates on 72 precision ground bearings • Up to 28 locator pads that are all adjustable for concentricity • Includes eight locator pads that are axially adjustable • The flexibility allows this machine to be quickly and easily adjusted for virtually any machining operation • Powered by quiet running,...

10 11 Clamshell Accessories Clamshell accessories from Hydratight’s DL Ricci line-up are available to enhance the performance and expand the capabilities of the clamshells. For more operational information on these clamshells and accessories, ask your sales representative for a copy of the Clamshell Instructional CD. Axial Feed Module: The Axial Feed Module is designed to work in limited space and hostile environments. Adaptable to the clamshell machine, the module is used in some journal turning applications where areas of a shaft are worn and in need of repair. Designed for applications within...
