MODEL HT6G

Product catalog summary

Overview: The document provides detailed specifications and features of the Portable Hydraulic Power Unit, Model HT6GE/G, manufactured by Hydra-Tech. This unit is designed for driving 2" trash pumps, slim-line borehole pumps, and other hydraulic tools.

Key Features:

Equipped with a reliable electric start Honda gas engine featuring Oil-Alert™ safety shutdown.
Includes a roll cage frame with a single-point lifting eye for easy transport.
Features a gear-type hydraulic pump and a spin-on return filter with an indicator.
Variable speed controls for hydraulic output and a hydraulic oil cooler are included.
Comes with HTMA quick-disconnect couplings and a system relief valve.
Designed for small hydraulic tools and includes a liquid-filled pressure gauge and fluid level/temperature gauge.
Optional wheel kit and recoil start available for the HT6G model.

Specifications:

Engine: Honda GX200 Gasoline with 5.5 horsepower at 3600 RPM.
Hydraulic Output: Options of 3 GPM at 2500 PSI or 4.5 GPM at 1800 PSI.
Hose Port Size: 1/2" NPT.
Hydraulic Oil: SAE 10W or 20W Type AW, Dexron ATF, or biodegradable oil.
Oil Filtration: 10 Micron standard.
Oil Reservoir Capacity: 4 U.S. gallons (15.1 liters).
Fuel Tank Capacity: 0.75 U.S. gallons (3 liters).
Fuel Consumption: Approximately 0.9 U.S. gallons per hour (3.4 liters per hour).
Dimensions: Without wheel kit: H 25" x W 20" x L 30"; With wheel kit: H 28 3/4" x W 30 1/2" x L 41".
Weight: 150 lbs. (68 kg) dry.

Additional Information: The unit is made in the USA and specifications are subject to change as the company continuously works on product improvements. For non-standard flows and pressures, consultation with the factory is recommended.

Catalog excerpts

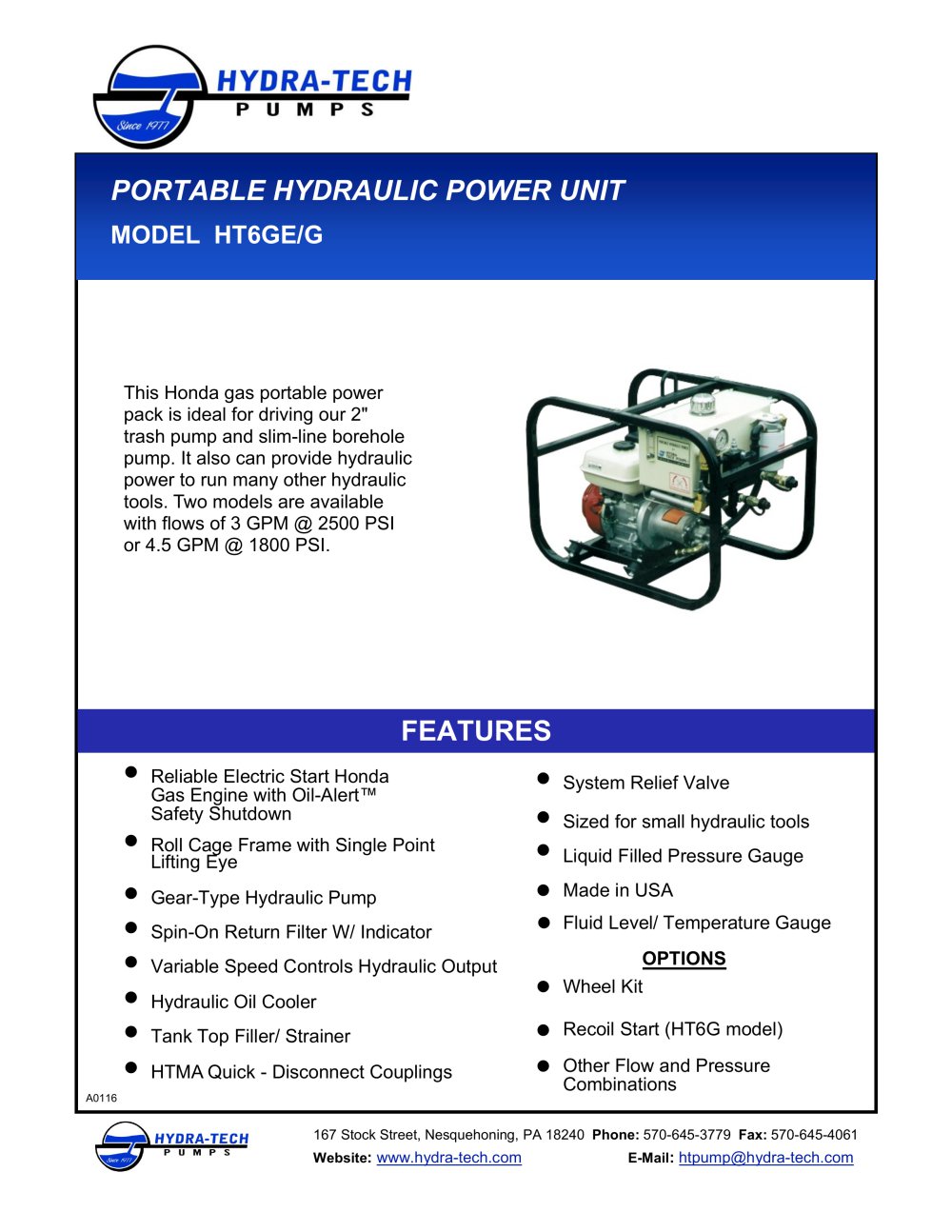

HYDRA-TECH PUMPS This Honda gas portable power pack is ideal for driving our 2" trash pump and slim-line borehole pump. It also can provide hydraulic power to run many other hydraulic tools. Two models are available with flows of 3 GPM @ 2500 PSI or 4.5 GPM @ 1800 PSI. System Relief Valve Sized for small hydraulic tools Liquid Filled Pressure Gauge Made in USA Fluid Level/ Temperature Gauge OPTIONS Wheel Kit Recoil Start (HT6G model) Other Flow and Pressure Combinations • Reliable Electric Start Honda Gas Engine with Oil-Alert™ Safety Shutdown • Roll Cage Frame with Single Point Lifting Eye • Gear-Type Hydraulic Pump • Spin-On Return Filter W/ Indicator • Variable Speed Controls Hydraulic Output • Hydraulic Oil Cooler • Tank Top Filler/ Strainer • HTMA Quick - Disconnect Couplings A0116 167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061 Website: www.hydra-tech.com E-Mail: [email protected]

Open the catalog to page 1

Model HT6G Overall Dimensions 167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061 Website: www.hydra-tech.com E-Mail: [email protected]
