MODEL HT150DD / DV

Product catalog summary

Overview: The HT150DD/DV is a portable hydraulic power unit designed for powering large submersible pumps and other hydraulic equipment. It features a Deutz liquid-cooled diesel engine and offers both fixed and variable displacement hydraulic pump options.

Features:

Multiple hydraulic circuits for versatile applications.
Skid frame chassis with built-in fuel tank and forklift slots for easy transportation.
Dependable Deutz diesel engine with an engine-mounted hydraulic oil cooler.
Pressure compensating piston pump available in the DV model.
Single point lifting bracket for convenient handling.
Automatic engine safety shutdown package for enhanced safety.
Optional highway trailer for mobility.
Fluid level and temperature gauge for monitoring.
Pressure control and relief valves for operational safety.
Spin-on return filter with indicator for maintenance ease.

Options:

Various flow and pressure combinations to suit different needs.
Liquid-filled pressure gauge for accurate readings.

Specifications:

Engine: Deutz BF6M1013 Diesel, 150 horsepower at 2300 RPM.
Hydraulic Output: Variable, maximum 70 GPM (265 LPM).
Operating Pressure: Maximum 2500 PSI (170 Bar).
Hose Port Size: 1 1/2" NPT.
Hydraulic Oil: SAE 10W or 20W Type AW, biodegradable options available.
Oil Filtration: 10 Micron standard.
Oil Reservoir Capacity: 95 U.S. Gallons (385 Liters).
Fuel Tank Capacity: 89 U.S. Gallons (337 Liters).
Fuel Consumption: Approximately 6 U.S. Gal/Hr (23 Liters/Hr).
Dimensions: Height 59" (150 cm), Width 51" (130 cm), Length 124" (315 cm).
Weight (Dry): 4100 lbs. (1857 kg).

Note: Specifications are subject to change as part of ongoing product improvements.

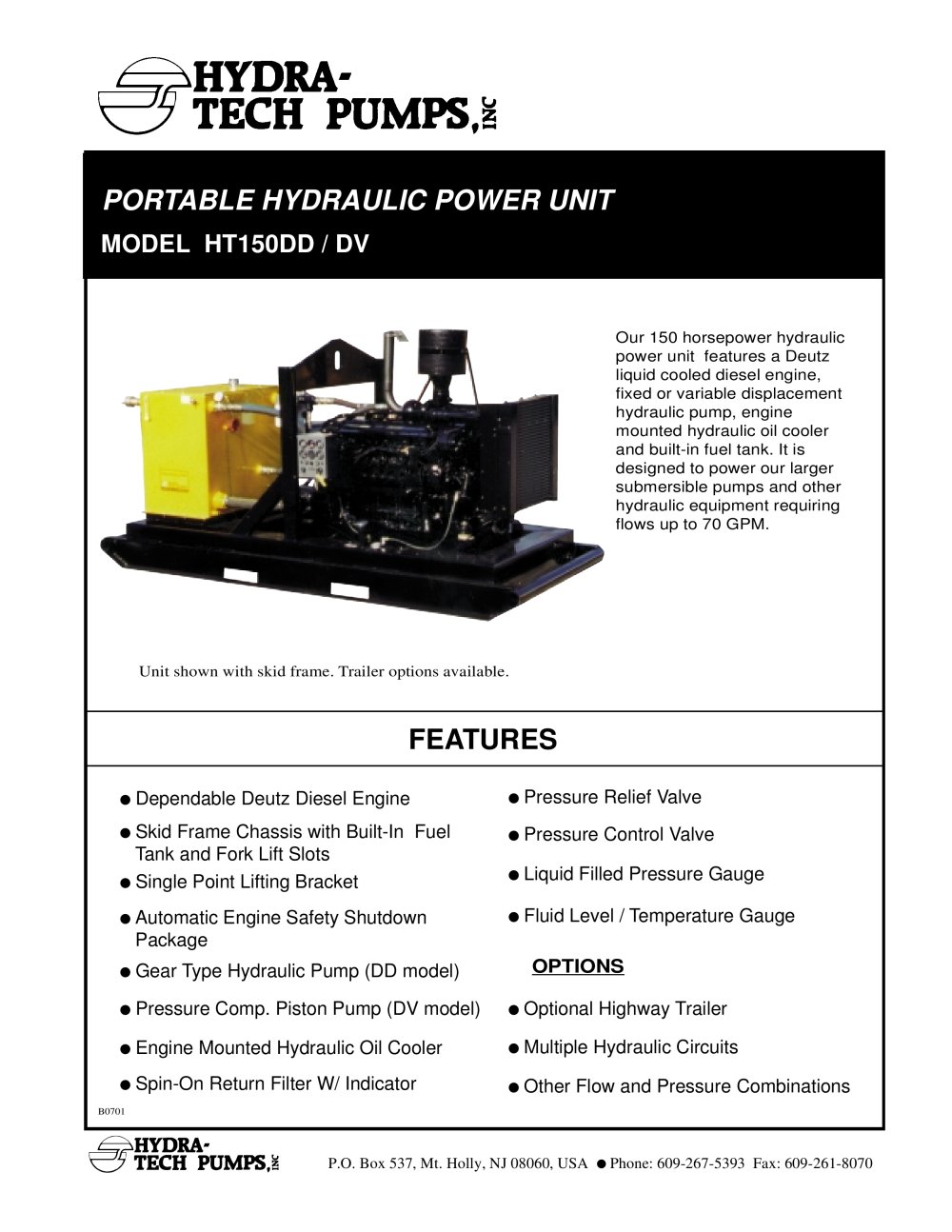

Catalog excerpts

P.O. Box 537, Mt. Holly, NJ 08060, USA Phone: 609-267-5393 Fax: 609-261-8070 MODEL HT150DD / DV PORTABLE HYDRAULIC POWER UNIT FEATURES B0701 Multiple Hydraulic Circuits Skid Frame Chassis with Built-In Fuel Tank and Fork Lift Slots Dependable Deutz Diesel Engine Engine Mounted Hydraulic Oil Cooler Pressure Comp. Piston Pump (DV model) Single Point Lifting Bracket Automatic Engine Safety Shutdown Package Optional Highway Trailer Fluid Level / Temperature Gauge Pressure Control Valve Pressure Relief Valve Spin-On Return Filter W/ Indicator OPTIONS Other Flow and Pressure Combinations Liquid Filled Pressure Gauge Unit shown with skid frame. Trailer options available. Our 150 horsepower hydraulic power unit features a Deutz liquid cooled diesel engine, fixed or variable displacement hydraulic pump, engine mounted hydraulic oil cooler and built-in fuel tank. It is designed to power our larger submersible pumps and other hydraulic equipment requiring flows up to 70 GPM. Gear Type Hydraulic Pump (DD model)
