MODEL HT100DJV

Product catalog summary

Overview: The document provides detailed specifications and features of the Portable Hydraulic Power Unit, Model HT100DJV, manufactured by Hydra-Tech. This unit is designed for high performance, featuring a John Deere turbocharged 4-cylinder diesel engine and a pressure-compensated hydraulic pump.

Key Features:

Equipped with a skid frame chassis, extended-run fuel tank, and fork-lift slots for easy transport.
Includes a single-point lifting bracket and tie-downs.
Automatic engine safety shutdown and variable volume piston hydraulic pump.
Efficient hydraulic oil cooler and dual spin-on return filter with indicator.
Variable speed control, tank top filler/strainer, and system relief valve.
Made in the USA with a liquid-filled pressure gauge and fluid level/temperature gauge.
Available with a highway trailer featuring independent suspension, D.O.T. brakes, and lights.
Multiple hydraulic circuits and other flow and pressure combinations are available.

Specifications:

Engine: John Deere Diesel (Tier IV Final) with 99 horsepower at 2400 RPM.
Hydraulic Output: Variable, maximum 53 GPM (201 LPM).
Operating Pressure: Maximum 2500 PSI (170 Bar).
Hose Port Size: 1 1/4" NPT.
Hydraulic Oil: SAE 10W or 20W Type AW, biodegradable oil available upon consultation.
Oil Filtration: 10 Micron standard.
Oil Reservoir Capacity: 75 U.S. Gallons (284 Liters).
Fuel Tank Capacity: 88 U.S. Gallons (333 Liters).
Fuel Consumption: Approximately 6 U.S. Gal/Hr (23 Liters/Hr).
Dimensions: Height 68" (173 cm), Width 51" (130 cm), Length 104" (264 cm).
Weight (Dry): 2800 lbs. (1268 kg).

Options: The unit can be equipped with a float switch control operation.

Note: Specifications are subject to change as the company continuously works to improve its products.

Catalog excerpts

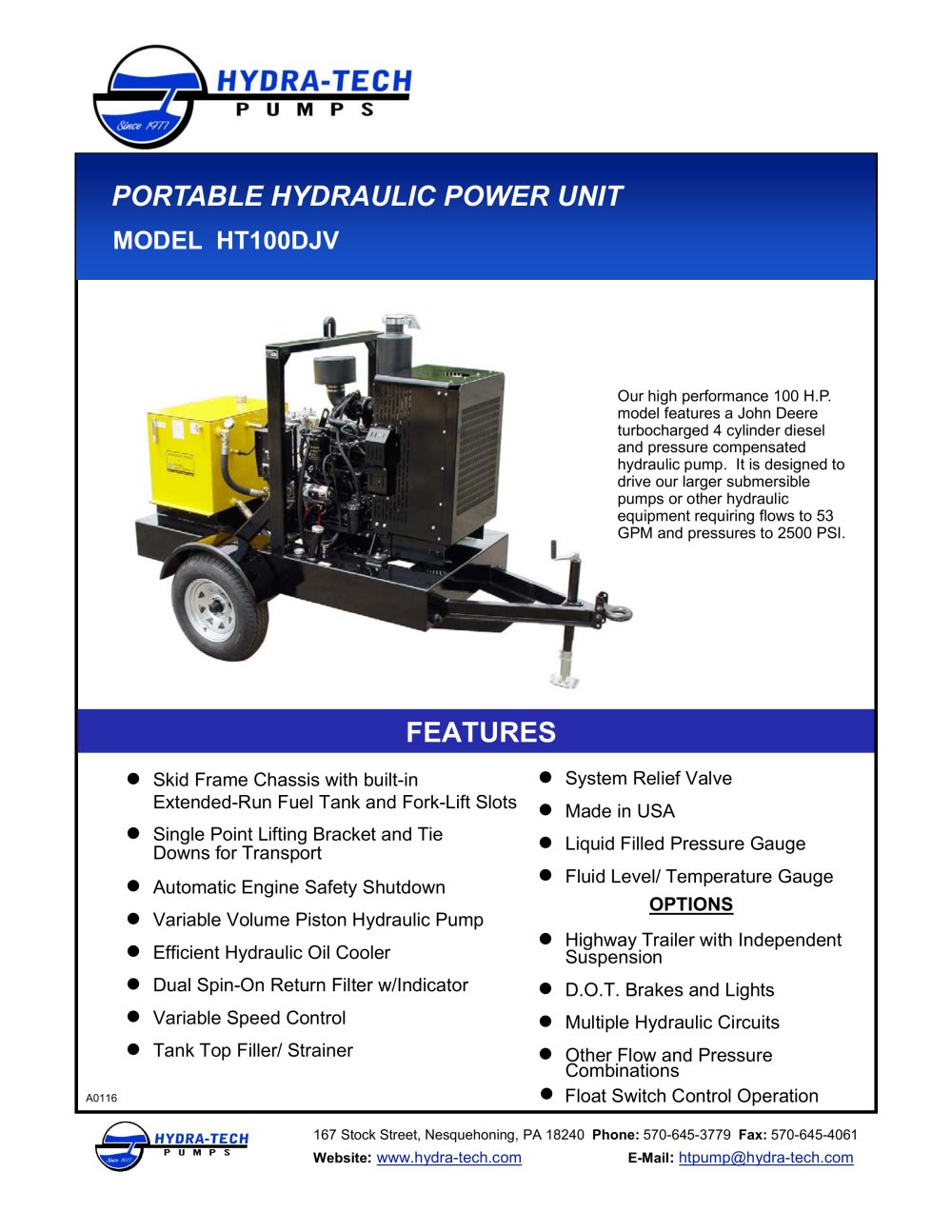

PORTABLE HYDRAULIC POWER UNIT MODEL HT100DJV Our high performance 100 H.P. model features a John Deere turbocharged 4 cylinder diesel and pressure compensated hydraulic pump. It is designed to drive our larger submersible pumps or other hydraulic equipment requiring flows to 53 GPM and pressures to 2500 PSI. FEATURES S Skid Frame Chassis with built-in Extended-Run Fuel Tank and Fork-Lift Slots Single Point Lifting Bracket and Tie Downs for Transport Automatic Engine Safety Shutdown Variable Volume Piston Hydraulic Pump Efficient Hydraulic Oil Cooler Dual Spin-On Return Filter w/Indicator Variable Speed Control Tank Top Filler/ Strainer System Relief Valve Made in USA Liquid Filled Pressure Gauge Fluid Level/ Temperature Gauge OPTIONS Highway Trailer with Independent Suspension D.O.T. Brakes and Lights Multiple Hydraulic Circuits Other Flow and Pressure Combinations Float Switch Control Operation 167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061 Website: www.hydra-tech.com

Open the catalog to page 1

Model HT100DJV Overall Dimensions 167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061 Website: www.hydra-tech.com E-Mail: [email protected]
