Diesel Driven Hydraulic Power Unit

Product catalog summary

Overview: The HT30DJS is a portable hydraulic power unit powered by a John Deere diesel engine, designed to drive various pump models and other equipment requiring up to 16 GPM flow. It features a large fuel tank for extended operation.

Key Features:

Fluid Level/Temperature Gauge
Vane Type Hydraulic Pump
Spin-On Return Filter with Indicator
Engine Mounted Oil Cooler
Variable Speed Control
Tank Top Filler/Strainer
System Relief Valve
Pressure Control Valve
Automatic Engine Safety Shutdown Package
Liquid Filled Pressure Gauge
Multiple Hydraulic Circuits
Skid Frame

Options:

Various Flow and Pressure Combinations
Highway Trailer Chassis with Built-In Fuel Tank and Independent Suspension
Single Point Lifting Bracket

Specifications:

Engine: John Deere 3015D Liquid Cooled Diesel
Horsepower: 30 @ 2800 RPM
Hydraulic Output: Variable, Max. 16 GPM (61 LPM)
Operating Pressure: Max. 2700 PSI (184 Bar)
Hose Port Size: 3/4" NPT
Hydraulic Oil: SAE 10W or 20W Type AW, Bio-degradable oil (Consult Factory)
Oil Filtration: 10 Micron (Standard)
Oil Reservoir Capacity: 30 U.S. Gallons (114 Liters)
Fuel Tank Capacity: 55 U.S. Gallons (208 Liters)
Fuel Consumption: Approx. 1.7 U.S. Gal/Hr (6.4 Liters/Hr)
Dimensions: H 64" (163 cm) x W 58" (147 cm) x L 110" (279 cm)
Weight (Dry): 1200 lbs. (544 kg)

Additional Information: Specifications are subject to change without notice. For non-standard flows and pressures, consult the factory.

Catalog excerpts

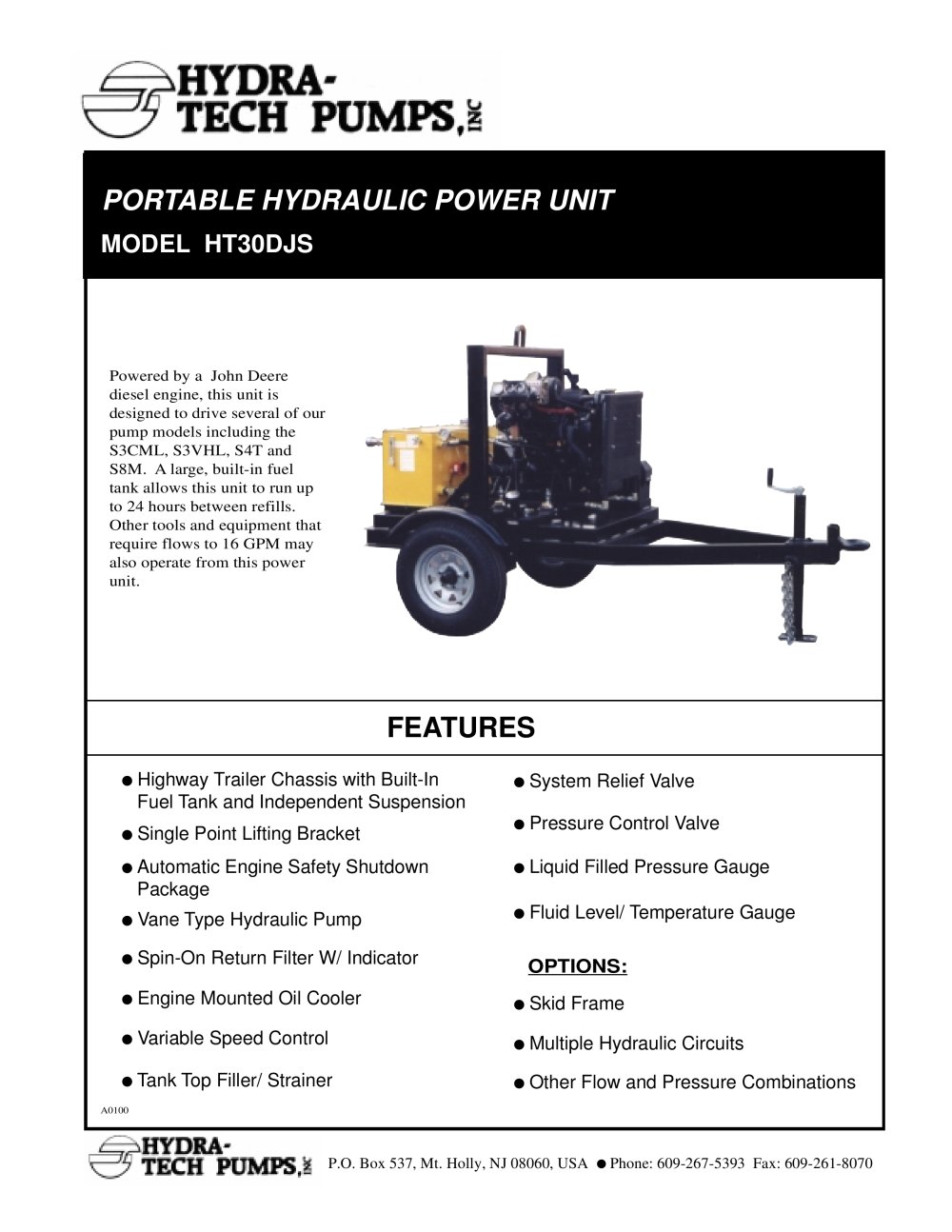

Powered by a John Deere diesel engine, this unit is designed to drive several of our pump models including the S3CML, S3VHL, S4T and S8M. A large, built-in fuel tank allows this unit to run up to 24 hours between refills. Other tools and equipment that require flows to 16 GPM may also operate from this power unit. Highway Trailer Chassis with Built-In Fuel Tank and Independent Suspension System Relief Valve Single Point Lifting Bracket Pressure Control Valve Automatic Engine Safety Shutdown Package Liquid Filled Pressure Gauge Vane Type Hydraulic Pump Fluid Level/ Temperature Gauge Spin-On Return Filter W/ Indicator OPTIONS: Engine Mounted Oil Cooler Skid Frame Variable Speed Control Multiple Hydraulic Circuits Tank Top Filler/ Strainer Other Flow and Pressure Combinations > A0100 P.O. Box 537, Mt. Holly, NJ 08060, USA Phone: 609-267-5393 Fax: 609-261-8070 size="-1">
