Overview: The document provides technical specifications and features of the Hurst Series 100 packaged boilers, which are designed for low-pressure applications with a three-pass firebox design. These boilers are constructed in accordance with ASME Boiler Codes and are registered with the National Board of Boiler & Pressure Vessel Inspectors.

Specifications: The boilers are available in capacities ranging from 7.4 to 650 BHP, with outputs from 248 to 21,759 MBTU/HR. They are UL approved and feature a low-pressure firebox design based on 5 square feet per BHP. The boilers are designed for 15 PSI steam and 30 PSI water, with an optional 60 PSI water configuration.

Design Features: The boilers feature a three-pass design for efficient combustion and flexibility to use gas, oil, heavy oil, or a combination of gas/oil. They have a large furnace volume for optimal combustion efficiency, a unified refractory base floor, and are factory insulated with 2-inch mineral wool to minimize heat loss. The boilers are fully automated with forced draft burners and wet back construction.

Standard Features: Each unit is factory packaged with operating controls, relief valves, burners, and fuel trains. They are designed for easy installation, requiring only service connections. The boilers include ample waterside cleanout openings, flame observation ports, and are factory test-fired. They also feature U.L. listed controls and trim.

Steam and Water Trim: The steam trim includes a steam pressure gauge, low water cut-off, pump control, auxiliary low water cut-off, water column gauge glass set, and ASME safety relief valves. The water trim includes a combination pressure and temperature gauge, low water cut-off control, and ASME relief valves.

Additional Information: The document notes that dimensions are subject to change without notice and certified drawings are available upon request. The boilers are represented by Hurst Boiler & Welding Co., Inc., located in Coolidge, Georgia.

Catalog excerpts

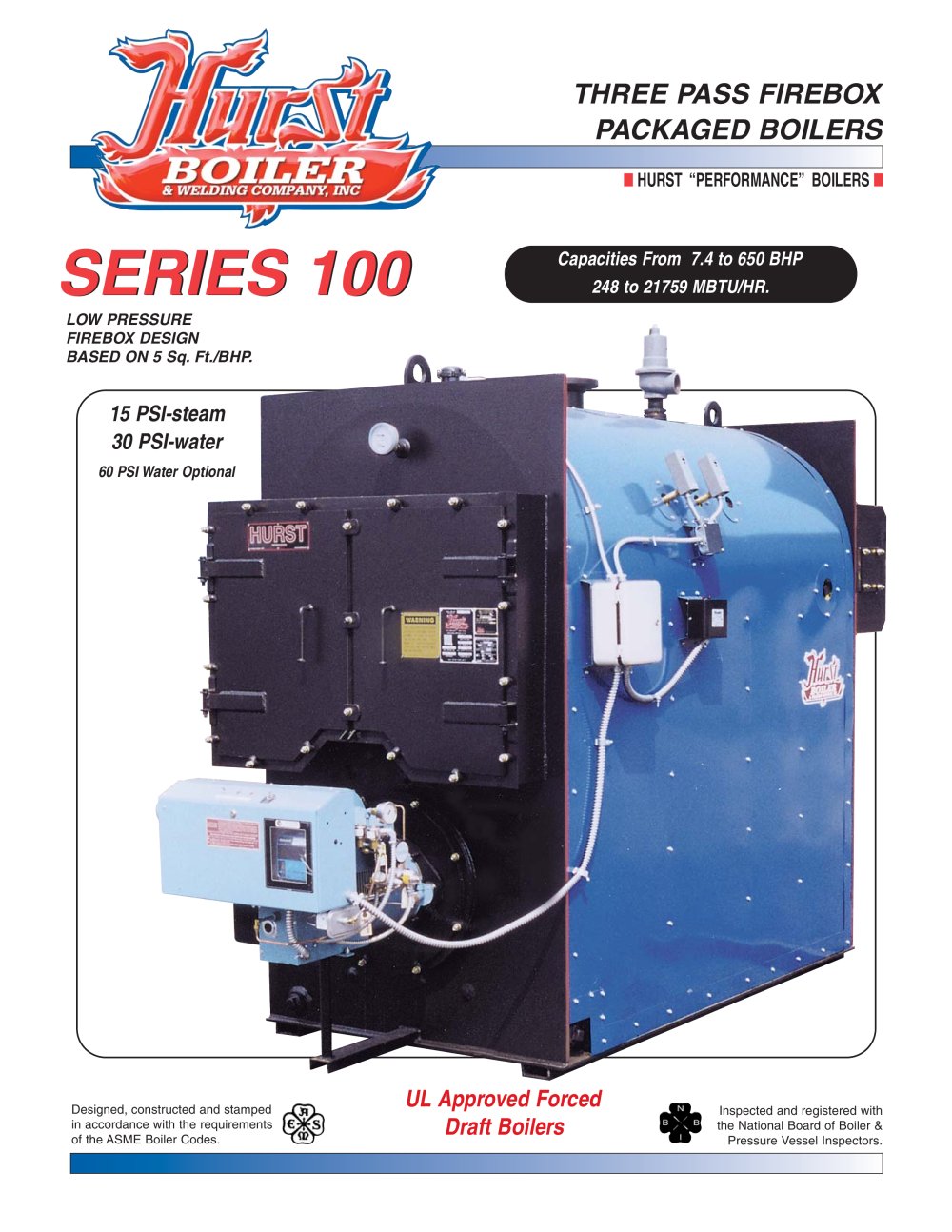

Capacities From 7.4 to 650 BHP248 to 21759 MBTU/HR. > LOW PRESSURE FIREBOX DESIGNBASED ON 5 Sq.Ft./BHP. 60 PSI Water Optional Designed, constructed and stampedin accordance with the requirements of the ASME Boiler Codes. Inspected and registered withthe National Board of Boiler &Pressure Vessel Inspectors. size="-2">

Open the catalog to page 1

ON 91.6 HP.12"X16" MANWAY (FOR OPTIONAL & LARGER SECOND LWCO PROBE) SAFETY VALVECONNECTIONS 1" WATER COLUMNCONNECTION CONNECTIONSWASHOUT 3/4" CONTROL WASHOUT FURNACE ACCESSON 40 HP. & LARGER O

Open the catalog to page 2

■ Efficient 3-Pass Design ■ Flexibility Gas, Oil, Heavy Oil, and Combination Gas/Oil ֢֠ ASME Code Constructed & Stamped for 15 PSI Steam/30 Water ■ Registered with the National Board of Boiler Inspectors ■ Competitively Priced, Easily Maintained, Designed for Efficiency ■ Large Furnace Volume for Ultimate Combustion Efficiency ■ Unified Refractory Base Floor ■ Steel Skids and Lifting Eyes ■ Low Heat Release - 5 Sq. Ft./HP. ■ Factory Insulated 2֔ Mineral Wool ■ Factory Jacketed & Painted ■ Easy Access to Fireside Surfaces ■ Ample Waterside Cleanout Openings ■ Fully Automatic Operation ■ U.L. Listed,...
