Feedmiser Brochure

Product catalog summary

Overview: The document provides technical specifications and options for Hurst's 'Feedmiser' packaged boiler feedwater systems, suitable for steam boilers with pressures up to 300 psig and capacities ranging from 30 to 1000 gallons, with larger sizes available upon request.

Specifications: The systems are factory-packaged units, fully piped, wired, and assembled. They include turbine or centrifugal pump assemblies with specified capacities and discharge pressures. The tank is an open vented vessel made of carbon steel, supported by structural steel legs to meet NPSH requirements.

Dimensions: The document lists dimensions for various capacities, including length, width, height, and shipping weight. It notes that overall height may vary based on pump NPSH requirements and that customer supply pressure should be less than 40 psi.

Optional Equipment: Options include control panels, pump function lights, high/low water level alarms, ASME code construction, and more. Additional features like magnesium corrosion rods and electric solenoid valve assemblies are available.

Standard Pump Configuration: The document provides configurations for different pressure levels and pump numbers, with selections based on 212°F water and a 1.5 ft NPSHr safety margin.

Contact Information: Hurst Boiler's contact details are provided for further inquiries.

Catalog excerpts

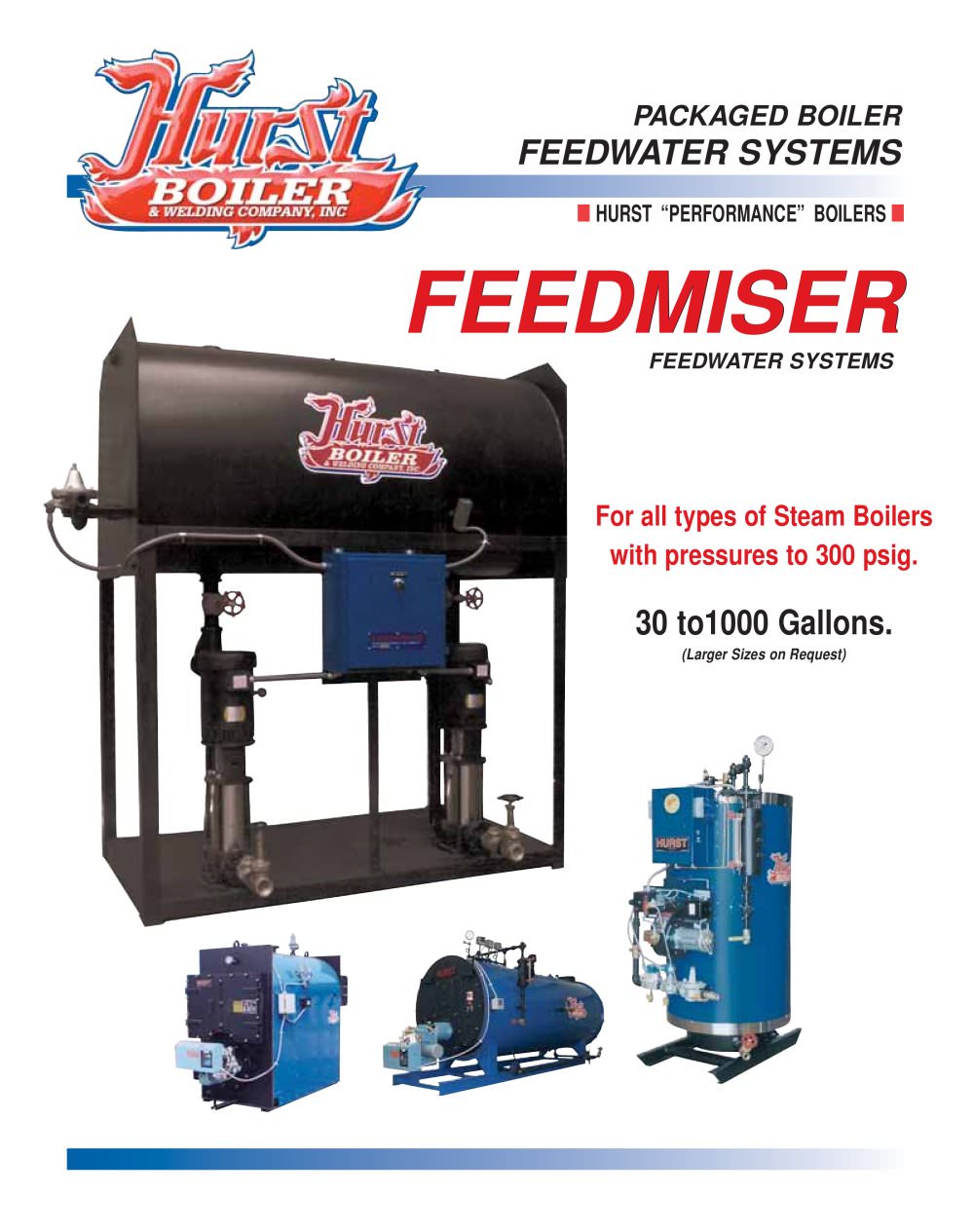

PACKAGED BOILER FEEDWATER SYSTEMS ■ HURST PERFORMANCEӔBOILERS ■ FEEDMISER FEEDMISER > FEEDWATER SYSTEMS For all types of Steam Boilerswith pressures to 300 psig. 30 to1000 Gallons. (Larger Sizes on Request) size="-5">

Open the catalog to page 1

Represented by: 100 Boilermaker LaneCoolidge, Georgia 31738 (229) 346-3545 (Tel.) (229) 346-3874 (Fax.) e-mail: [email protected] > Revised 08/08 size="-1">

Open the catalog to page 4
