4VT Cyclone (Hot Water) Brochure

Product catalog summary
Overview: The document provides technical specifications and features of the Cyclone Hot Water Boilers, specifically the 4VT Series by Hurst Performance Boilers. These boilers are designed for high efficiency and durability, suitable for a range of 6 to 100 horsepower.
Key Features:
  • Vertical tubeless design for space-saving and efficiency.
  • Four-pass design for enhanced heat transfer and efficiency.
  • Shock-proof construction with no tubes to loosen or burn out.
  • Convenient access to the burner at eye level.
  • Solid-state controls for reliable operation.
  • Factory-assembled and fully automatic for ease of installation.
  • Compliance with UL and ASME CSD-1 standards.
  • Low water pressure drops and standard design pressure of 30 PSI, with options up to 160 PSI and 250°F.
Specifications:
  • Standard water trim includes a combination pressure and temperature gauge, low water cutoff with manual reset, ASME safety relief valve, and temperature controls with manual reset.
  • Boiler horsepower ranges from 6 to 100 HP, with corresponding gross output and input requirements detailed in BTU and kcal.
  • Firing rates are specified for natural gas and oil, with detailed measurements for outlet, return, drain sizes, stack diameter, and overall dimensions.
  • Water capacity and shipping weight are provided for each model in gallons and pounds.
Contact Information: Hurst Performance Boilers is located in Coolidge, Georgia, with contact details provided for further inquiries.
See more

Catalog excerpts

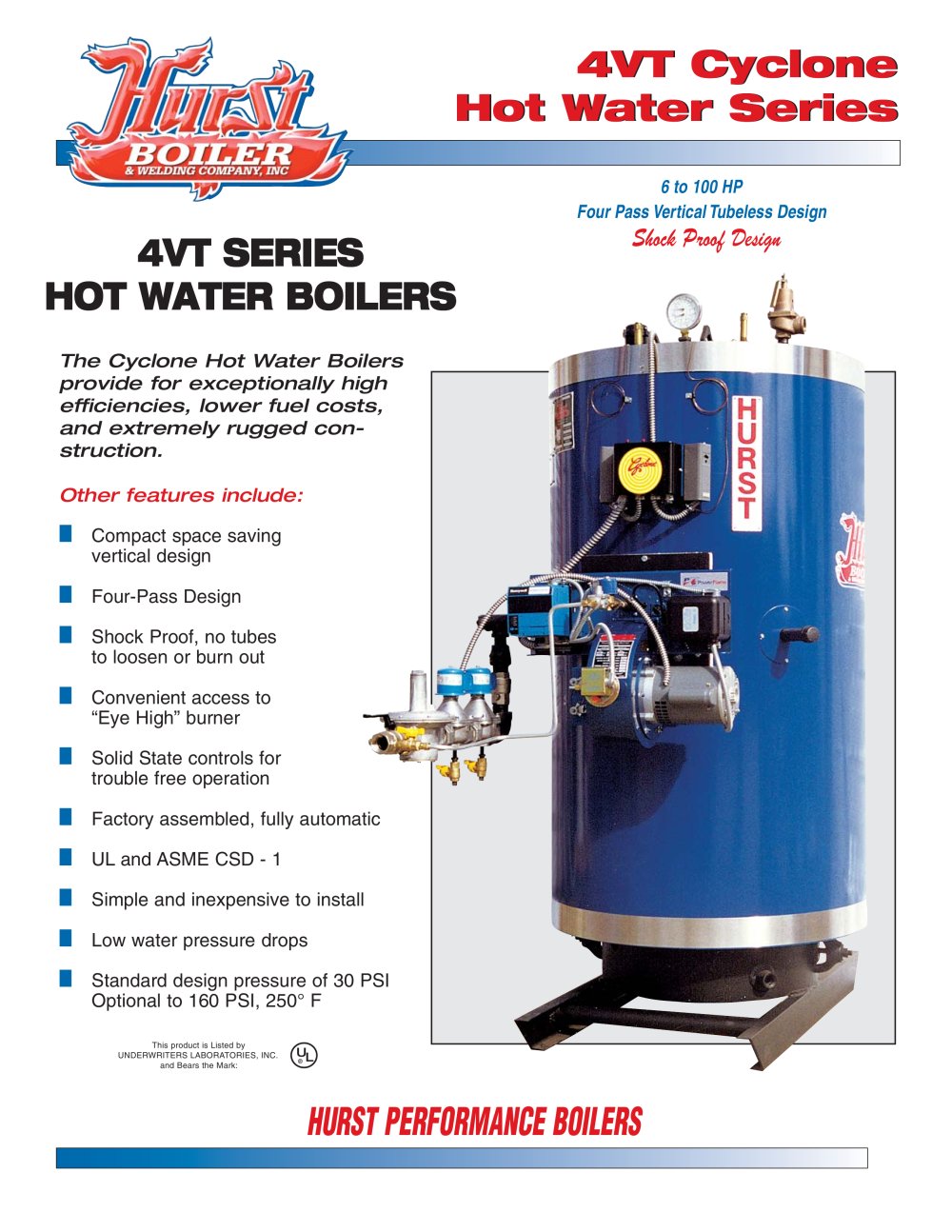

4VT Cyclone (Hot Water) Brochure-1

6 to 100 HPFour Pass Vertical Tubeless Design > The Cyclone Hot Water Boilers provide for exceptionally high efficiencies, lower fuel costs,and extremely rugged con-struction. Other features include: > Compact space saving vertical design > Shock Proof, no tubes to loosen or burn out > Convenient access to Eye HighӔ burner > Solid State controls for trouble free operation > Factory assembled, fully automatic > Simple and inexpensive to install > Low water pressure drops > Standard design pressure of 30 PSI Optional to 160 PSI, 250F > This product is Listed byUNDERWRITERS LABORATORIES, INC.and Bears the Mark: U Ю L

 Open the catalog to page 1
