Argweld® Flexible Welding Enclosures (Power Point Presentation)
14Pages

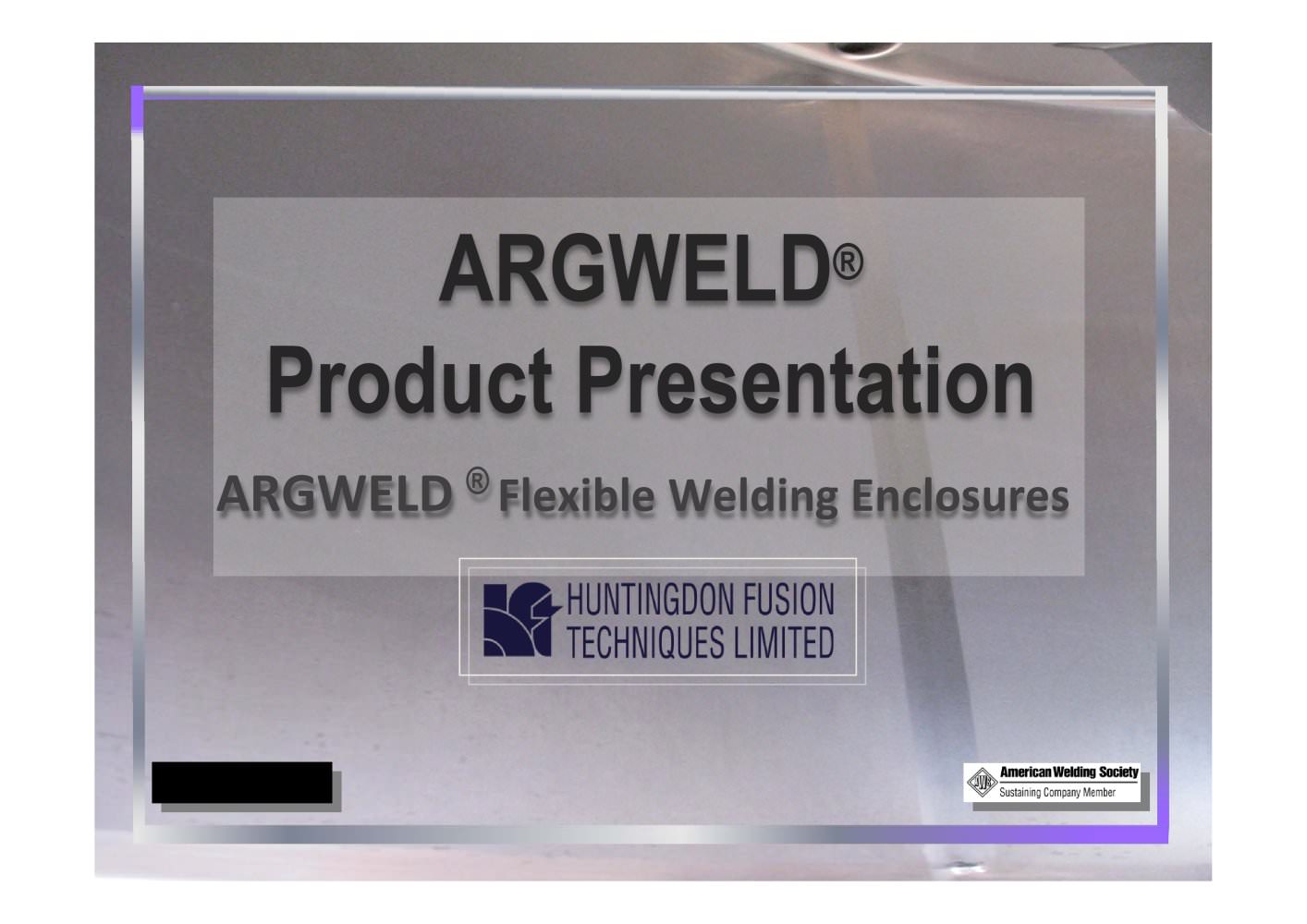

ARGWELD® Product Presentation ARGWELD ® Flexible Welding Enclosures

USING PROVISIONAL DAM SYSTEMS Flexible Welding Enclosures ARGWELD® Flexible Welding Enclosures 2 The range of 'Flexible Welding Enclosures' has been designed for applications where a rigid chamber may not be economically viable, where space may be at a premium or where a transportable system is desirable.

USING PROVISIONAL DAM SYSTEMS Advantages ARGWELD® Flexible Welding Enclosures 3 ¡ Frees up valuable floor space ¡ Fast delivery ¡ Bright, shiny, oxide free welds ¡ Very low cost, yet high quality ¡ Operator comfort and ease of use ¡ Fast, easy purge

USING PROVISIONAL DAM SYSTEMS Flexible Welding Enclosures ARGWELD® Flexible Welding Enclosures 4 ARGWELD ® Flexible Welding Enclosures can achieve an oxygen level of 20 parts per million or less for the satisfactory welding of reactive materials

USING PROVISIONAL DAM SYSTEMS Applications ARGWELD® Flexible Welding Enclosures 5 ¡ The welding of stainless steel components ¡ Nuclear and chemical industries ¡ Eliminate the expensive cleaning of discoloration ¡ The occasional and production welding of titanium and nickel alloy components for the aerospace industry (Jet Aero engines) ¡ Medical instrument and surgical implant manufacturers ¡ Sports and racing car industries

USING PROVISIONAL DAM SYSTEMS Misconceptions ARGWELD® Flexible Welding Enclosures 6 ¡ Cold purge gas takes away any heat emitted from the welding process and the heated metal without detrimental effects to the HFT PVC Enclosures ¡ TIG Welding does not produce sparks. Titanium has to be TIG welded with low heat input process using a small, shielded arc Most common misconception: Welding in a plas,c enclosure doesn’t necessarily melt it! ¡ Most titanium components are lightweight and thin wall: welding current is quite low and creates low heat input to the welding environment. ¡ The PVC...

USING PROVISIONAL DAM SYSTEMS Flexible Welding Enclosures ARGWELD® Flexible Welding Enclosures 7 ¡Half baseplate inserted into enclosure, to show stainless steel purge line below and heat protecting shroud at rear.

USING PROVISIONAL DAM SYSTEMS Flexible Welding Enclosures vs solid metal enclosures ARGWELD® Flexible Welding Enclosures 8 . . ¡ Huntingdon Fusion Techniques offers extensive Customer Support Program ¡ Flexible Enclosures are preferred by welders because of the soft material and greater comfort when moving for welding ¡ Prices of Flexible Enclosures are less than 0.1 – 0.05 of the cheapest metal enclosures ¡ Many home made metal enclosures leak because of bad construction ¡ Flexible Enclosures offers better results in faster times than the solid enclosures

USING PROVISIONAL DAM SYSTEMS Customer support: ARGWELD® Flexible Welding Enclosures 9 ¡Technical Papers showing our expertise, published on web site HFT has the expertise to ensure that the customer can obtain the results that he wants and that he has a partner to help solve all difficulties: ¡ Apart from the standard models, special enclosures are designed and manufactured to suit all applications ¡ Extended knowledge of applications in aerospace, motor sport, nuclear and chemical industry ¡ Comprehensive and easy to use Instruction Manual ¡ Training via customer ‘hand holding’. From...

USING PROVISIONAL DAM SYSTEMS hhjjjj Flexible Welding Enclosures ARGWELD® Flexible Welding Enclosures 10 Rotary manipulator inside a welding enclosure ¡ ? Note: All parts being brought inside a welding enclosure must be cleaned and be grease free. (Rotary manipulator bearings for example my have oils containing water and absorbed oxygen. The bearings should be exchanged with those lubricated by graphite

USING PROVISIONAL DAM SYSTEMS Flexible Welding Enclosures ARGWELD® Flexible Welding Enclosures 11 Titanium Purge Monitor sensor fitted to exhaust port. Exhaust gas flows over sensor, while electronic signal goes back to monitor. (indicated in parts per million of oxygen).

USING PROVISIONAL DAM SYSTEMS Flexible Welding Enclosures ARGWELD® Flexible Welding Enclosures 12 ¡ Glove ¡ 1800 mm & specials to order ports in entry lock ¡ Entry/exit lock area ¡ Glove ports either side ¡ Standard rectangular enclosures ¡ Side lengths 900,1200, 1500 mm

USING PROVISIONAL DAM SYSTEMS Flexible Welding Enclosures ARGWELD® Flexible Welding Enclosures 13 Working Enclosure showing Titanium Purge Monitor top centre

ARGWELD® All photos courtesy of Huntingdon Fusion Techniques Limited, UK. Thank you 2010
