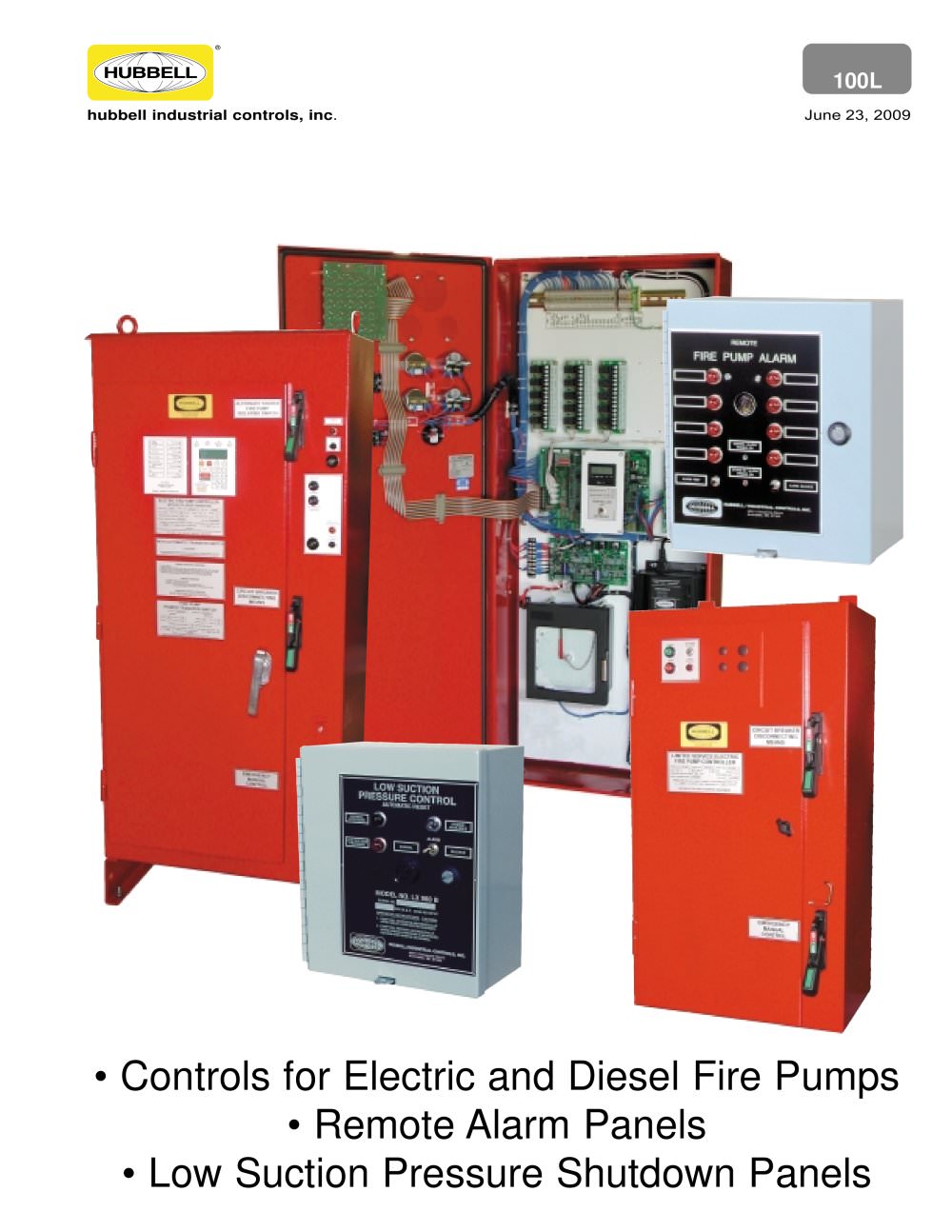

Overview
Hubbell Industrial Controls, Inc. provides a range of control solutions for electric and diesel fire pumps, including remote alarm panels and low suction pressure shutdown panels. These products are designed to meet various specifications and standards, such as NFPA 20, ensuring reliable operation in fire protection systems.

Remote Alarm Panel (LX-908)
The LX-908 Remote Alarm Panel is designed to comply with NFPA 20 specifications, particularly for situations where the pump room is not constantly attended. Key features include a solid-state printed circuit board, NEMA Type 1 enclosure for indoor wall mounting, front-mounted LEDs and controls, and optional battery backup. It operates within a temperature range of 41ºF (5ºC) to 104ºF (40ºC).

Low Suction Pressure Alarm and Shutdown Panel (LX-960)
The LX-960 panel provides pump shutdown in low suction pressure conditions, suitable for both electric and diesel-driven fire pumps. It features visual and audible alarms, a surface-mounted NEMA Type 1 enclosure, and operates within the same temperature range as the LX-908. It is intended for use where local authorities require pump shutdown under such conditions.

Full Service Electric Fire Pump Controls
These controllers are available with or without an Automatic Transfer Switch (ATS) and are listed by Underwriter’s Laboratories, Inc., and ULC. They meet or exceed NFPA 20 and NFPA 70 requirements. The controllers feature LXi Microprocessor Logic and Control, with real-time LCD displays for system pressure, amps, and volts. Sixteen models are available, supporting pumps from 208–480VAC and 15–400HP.

Controller for Diesel Engine Driven Fire Pumps (LX-3000)
The LX-3000 controller supports 12V or 24V diesel-powered fire pumps, providing start and stop signals, monitoring engine conditions, and offering alarms for various engine and controller conditions. It includes a dual, current-limiting, switch-mode charger to ensure battery charge.

Jockey Pump Controllers
These controllers maintain uniform system pressure without cycling the main system pump. Available in three-phase (model LX-600) for motors up to 25 hp and single-phase (model LX-601) for motors up to 3/4 hp, they feature rugged enclosures and adjustable pressure switches.
