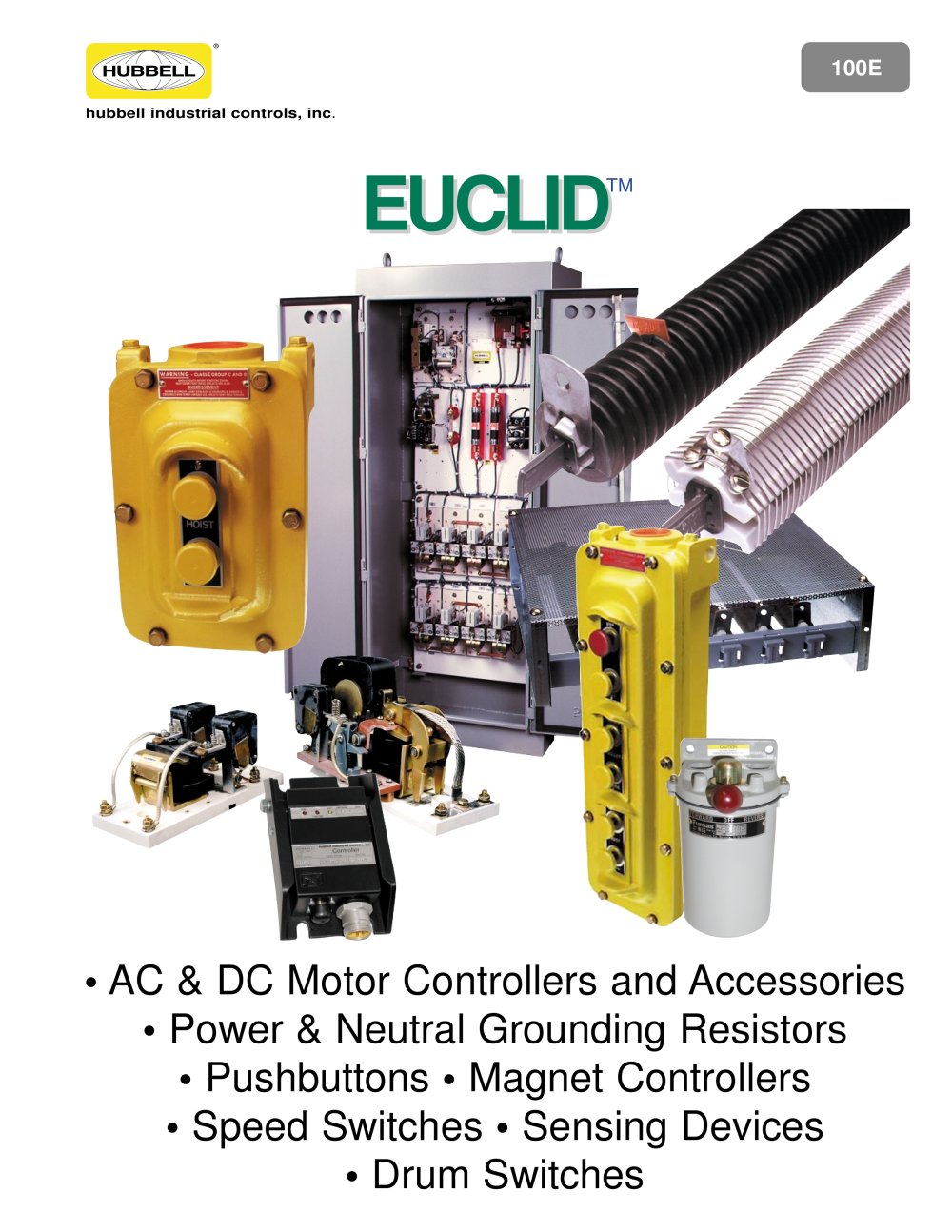

100E hubbell industrial controls, inc . TM Ε AC & DC Motor Controllers and Accessories ? Power & Neutral Grounding Resistors ? Pushbuttons ? Magnet Controllers ? Speed Switches ? Sensing Devices ? Drum Switches >

NEMArated heavy-duty controls for travel or hoisting motors. Both types include mill dutycomponents on a panel that allows front wiring and front component accessibility. NEMAtype 1, NEMAtype 1Awith gasket, and NEMAtype 3R enclosures are available. Travel Control units feature: Hoist Control units feature: ? Smooth, responsive acceleration. ? Safe, controlled stopping. ? Complete operator control both hoisting and lowering. ? Dynamic braking; no mechanical brake required. ? High speed no-load hoisting and lowering. > Euclid AC controllers are for use with new or existing wound rotor or...

Master/slave system designed to be used with wound rotor motor controls. Master unit, which can be used as a stand-alone relay, is a complete frequency relay provid- ing one point of frequency detection. The slave unit must be used with the master unit and provides additional point of frequency detection. Up to five slave units can be used with each master. Standard features include: ? Green Relay-onӔ and red Relay Picked-upӔ indicators. ? 5.5218 hz response range. ? Single frequency adjustment set point for each device. ? Hand held calibration module to monitor, calibrate or troubleshoot...

PBM Pushbutton Station CPB Station Series PBP ? Basic modular construction. ? Light weight, rugged, Safety YellowӔ molded enclosures. ? NEMA3, 3R, 4, 4X when equipped with Hubbell PBM 4X inserts and Hubbell Cord Connector Kits.? Readily available 22mm NEMA4X pushbutton elements. ? Five sizes, 3 to 11 buttons. ? AC or DC > ? AC or DC. ? Molded, high visibility yellow all rubber enclosure. ? NEMATypes 4 & 4XSuitable for most indoor or outdoor industrial environments. ? One to five speed inserts plug into front accessible terminal board. Series PBC > Series WPBC ? 150 VAC or 300 VDC.?...

Type HHC Type K ? 125 to 695 Amps ? Computer designed, free floating folded ribbon stainless steel element. ? No welds in element to cause mechanical or electrical failure. ? Designed for effective cooling air flow. Type SSR ? 38 to 195 Amps ? Continuous stainless steel edgewound element. ? Mill type construction ? Floating element expands and contracts freely. Ideal for use in secondary of AC wound rotor motors.? 1.3 to 101 Amps. ? Hexwound or edgewound continuous resistive elements. ? Porcelain core strips. ? Corrosion resistant materials. Type HHC Power Resistor Edgewound Resistive...

Varistor or resistor type, automatic discharge or manual, EUCLID has them.Discharge resistor and varistor types provide safe discharge path for storedenergy. EUCLID Model 4291Varistortype. Automatic discharge > TM magnet controls are kind to your lifting magnet. They allfeature:? Suited for many uses from light scrap to heavy billets or plates. ? Fast and clean release of full load load. ? Accurate release of partial load. ? Precise control of dribbling. ? Front wired and front accessible components for quick installation and service. Model 4292֖Yardmaster.Varistortype. Automatic discharge...

Speed switches are designed to respond tooverspeed, underspeed or stopped condi-tions. Typical applications include con-veyors, motors, generators, fans, pumpsand machine tools. EUCLID can sup-ply three types: Fluid/eddy current (simi-lar to the old centrifugal switches but upgraded forgreater accuracy and durability); Light chopping disk with an LEDlight source and light sensitive cell; Proximity sensing (a non-contacttechnology which requires no physical connection such as input shaftextension). Cast iron, cast aluminum, brass or fiberglass reinforced poly-ester enclosures meet...
