100P - Pressure Switches
4Pages

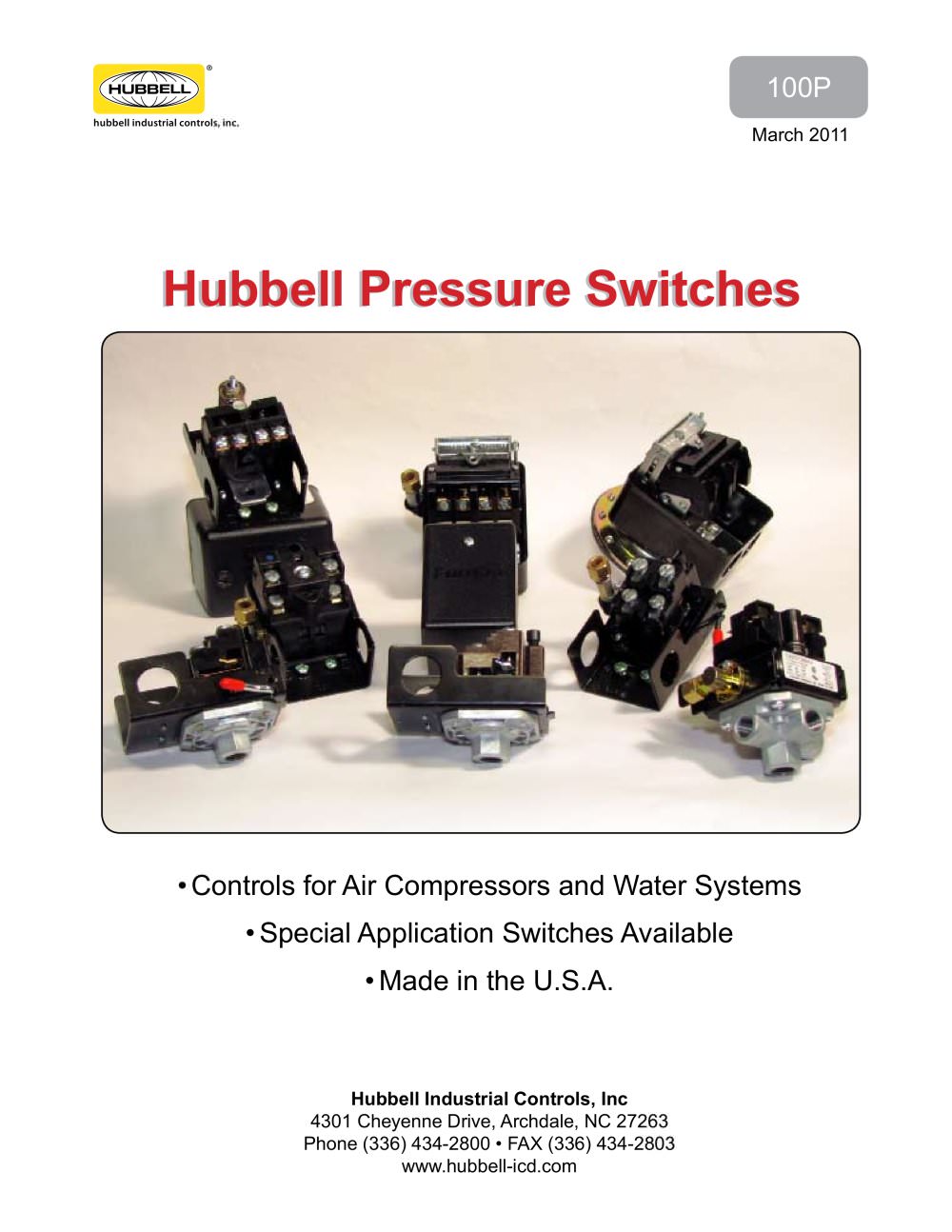

HUBBELL hubbell industrial controls, inc. March 2011 Hubbell Pressure Switches v_j Controls for Air Compressors and Water Systems Օ Special Application Switches Available Made in the U.S.A. Hubbell Industrial Controls, Inc 4301 Cheyenne Drive, Archdale, NC 27263 Phone (336) 434-2800 Օ FAX (336) 434-2803 www.hubbell-icd.com

Hubbell Industrial Controls Hubbell Pressure Switches Class 69J Sries Pressure Switch - Air Systems Class 69J Switch Standard Features Include: 3 and 5 HP 200 PSI maximum 镕 Improved unloader valve design Several terminal options Օ Optional bottom cable entry Silver cad-oxide brazed contacts Օ Various pipe locations Choice of auto-Off lever locations Օ UL listed and CSA Certified CE and CCC approved Օ 1/4" female NPT connection standard 4 x 1/4" female NPT available Designed to be the most adaptable switch on the market, the 69J offers the user the flexibility to build the pressure...

Class 69ES Sries Pressure Switch - Water Systems Class 69ES Switch Standard Features Include: Contact block replaceable without loss of System pressure 镕 100% copper terminais with silver cad-oxide contact points Extra wide diaphragm orifice reduces clogging Օ Roomy wiring space Visible contacts Օ Enclosed, state of the art switch mechanism Rugged, non-metallic cover Օ Two large ground screws UL listed Օ CSA certified Optional pulsation orifice Օ % F NPT fitting standard; % M NPT & %" barb fitting available Electrical Ratings Horsepower Catalog Control 1 Phase 3 Phase DC No. Circuit...

Class 69W Sries Pressure Switch - Water Systems Class 69W Switch Standard Features Include: Corrosion r镩sistant non-metallic cover Straight through wiring Օ Visible contacts- 2 pole double break No-drift pressure settings Օ Easy to adjust UL Listed and CSA Certified Class 69W Special Application Pressure Switches Reverse Action-69WR Closes the contacts on rising air or water pressure designed to ground ignition on gas driven pumps and compressors. Can also act as a low pressure alarm or to prevent pump operation at low pressure. Reset lever optional. Hi-Gard-69WH Wired in series with a...
