Static Grounding Reels

Product catalog summary

Introduction
Hose & Reel Products offers static grounding reels designed for use in environments where static electricity could cause sparks and explosions. These reels are suitable for aircraft refueling, chemical plants, grain elevators, and rescue and hazmat operations. They are not intended for lightning protection.

Specifications
The static grounding reels provide payout, retraction, and compact storage for up to 200 feet (61 meters) of grounding cable. They feature spring rewind mechanisms for smooth operation and minimal cable pull. A declutching arbor prevents damage from reverse winding, and an adjustable guide arm prevents cable build-up during rewinding.

Models and Features

Model GR75: Comes with a 1/8", 7x19 galvanized carbon steel cable and a 100 amp Alligator Clamp. Options for stainless steel or plastic-covered cables and "Y" branches are available. It features a permanently sealed spring and is lightweight and compact.
Model MGR75: Similar to GR75 with manual rewind option.
Model HGR100: Heavy-duty reel with a nonsparking ratchet assembly, suitable for industrial and mobile applications. It is repairable with readily available parts and holds large cable capacities.

Ordering Information
When ordering, specify gauge, length, O.D., coating, "Y" branch if needed, finish, and complete model number. Reels are UPS shippable, and specifications are subject to change.

Dimensions and Capacities

Model	Weight (kg)	Cable Capacity (m)
GR75	6	23
MGR75	6	30
HGR100	16	30

Reel dimensions are provided for each model, detailing measurements for various components.

Catalog excerpts

Hose > PRODUCTS & Reel > Aircraft Refueling Chemical Plants Օ Grain Elevators Rescue and Hazmat Operations size="-2">

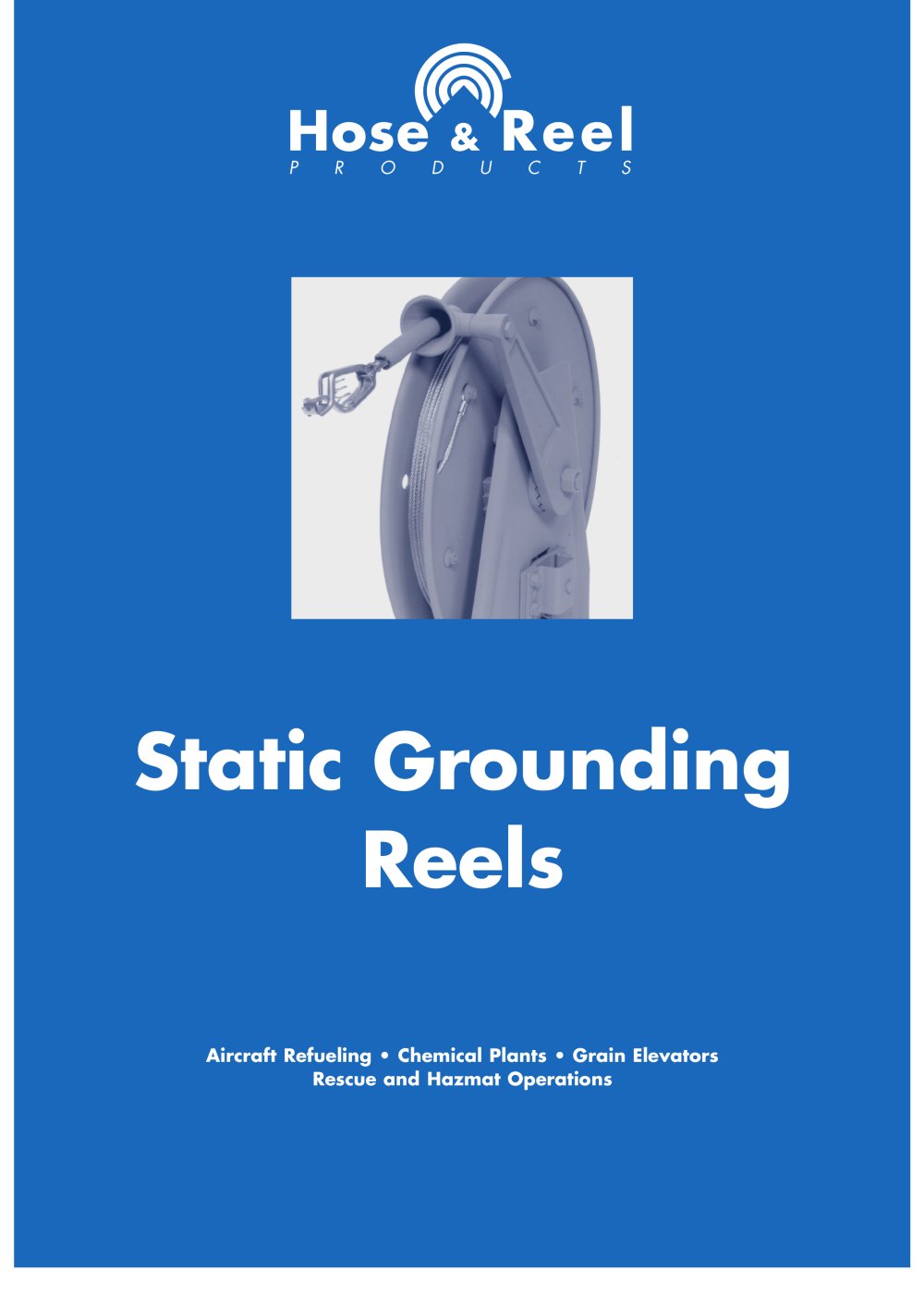

Open the catalog to page 1

Static Grounding Reels These reels are for Static Grounding ONLY.NOT intended for lightning protection! Hose & Reel Products static grounding reels providefor the payout, retraction and compact storage capacities of up to 200 feet of grounding cable. These spring rewind reels are used in any flammable atmosphere where a build-up of static electricity could cause a spark and sub- sequent explosion. > Introduction Hose & Reel Products BV Reinaldstraat 6 Օ 6301 EC Valkenburg a/d Geul, The NetherlandsTel. +31(0)43-3653102 Fax +31(0)43-3653103 Օ [email protected] www.hosereel-products.com...

Open the catalog to page 2

Static Grounding Reels For Aircraft Refueling, Chemical Plants, Grain Elevators, Rescue and Hazmat Operations Hose & Reel Products static grounding reels provide forthe payout, retraction and compact storage capacities of up to 61m of grounding cable. These spring rewind reels are used in any flammable atmosphere where a build-up of static electricity could cause a spark and subsequent explosion. They bond and/or ground aircraft,fuel trucks and other equipment during refueling or otherhazardous operations. Their spring motors provide smooth operation and require minimum cable pull to rele- ase...

Open the catalog to page 3

Static Grounding Reels To Order (specify all items listed): 1. Gauge, length, O.D., and coating if required 2. Specify YӔ branch if required 3. Finish if other than standard 4. Complete model number 5. Reels are UPS shippable.6. Accessory seperated.7. Specifications subject to change. YD BCXAF GH E YD FB C XA GH E

Open the catalog to page 4

Static Grounding Reels

Static Grounding Reels
