Rescue Hose Reels

Product catalog summary

Introduction
Hose & Reel Products offers a range of rescue reels designed for emergency situations such as haz-mat incidents, vehicular extrications, and utility air applications. The products are engineered to provide reliable performance in critical scenarios.

Product Specifications

F1500 Hose Reel: Lightweight and rugged, suitable for utility or breathing air applications. Available in sizes 1/4", 3/8", and 1/2" I.D. with pressures up to 414 bar.
CR1600 Electric Cable Reel: Designed for live electric cable handling, essential for power supply at emergency scenes. Supports various conductor sizes with a maximum capacity of 122 meters.
F2000 Dual Hydraulic Hose Reel: Ideal for power rescue tools, handling dual hydraulic hoses with pressures up to 724 bar.
EF2200 CORETM Rescue Tools Reel: Supports Holmatro CORE TechnologyTM coaxial twin hose, offering lighter weight and single fitting connection.
FN700 Spring Rewind Reels: Suitable for utility or breathing air hoses, featuring a heavy-duty spring motor and non-sparking ratchet assembly.

Procedures and Recommendations

Reels can be customized with different drum lengths and disc sizes upon request.
Power rewind models are available with air or electric motors (12v and 24v DC).
Standard finish is oven-cured enamel, with optional polished stainless steel and chrome frames.
Accessories such as rollers and mounting brackets are available and should be specified during ordering.

Technical Notes

Specifications are subject to change; consult the factory for custom requirements.
Ensure compatibility with rescue tool manufacturers for hydraulic hose threads and packing materials.
Reels are non-explosion proof and should be used accordingly.

Conclusion
Hose & Reel Products provides a comprehensive range of reels tailored for various emergency applications, ensuring reliability and efficiency in critical situations. For specific needs or configurations, customers are encouraged to contact the company directly.

Catalog excerpts

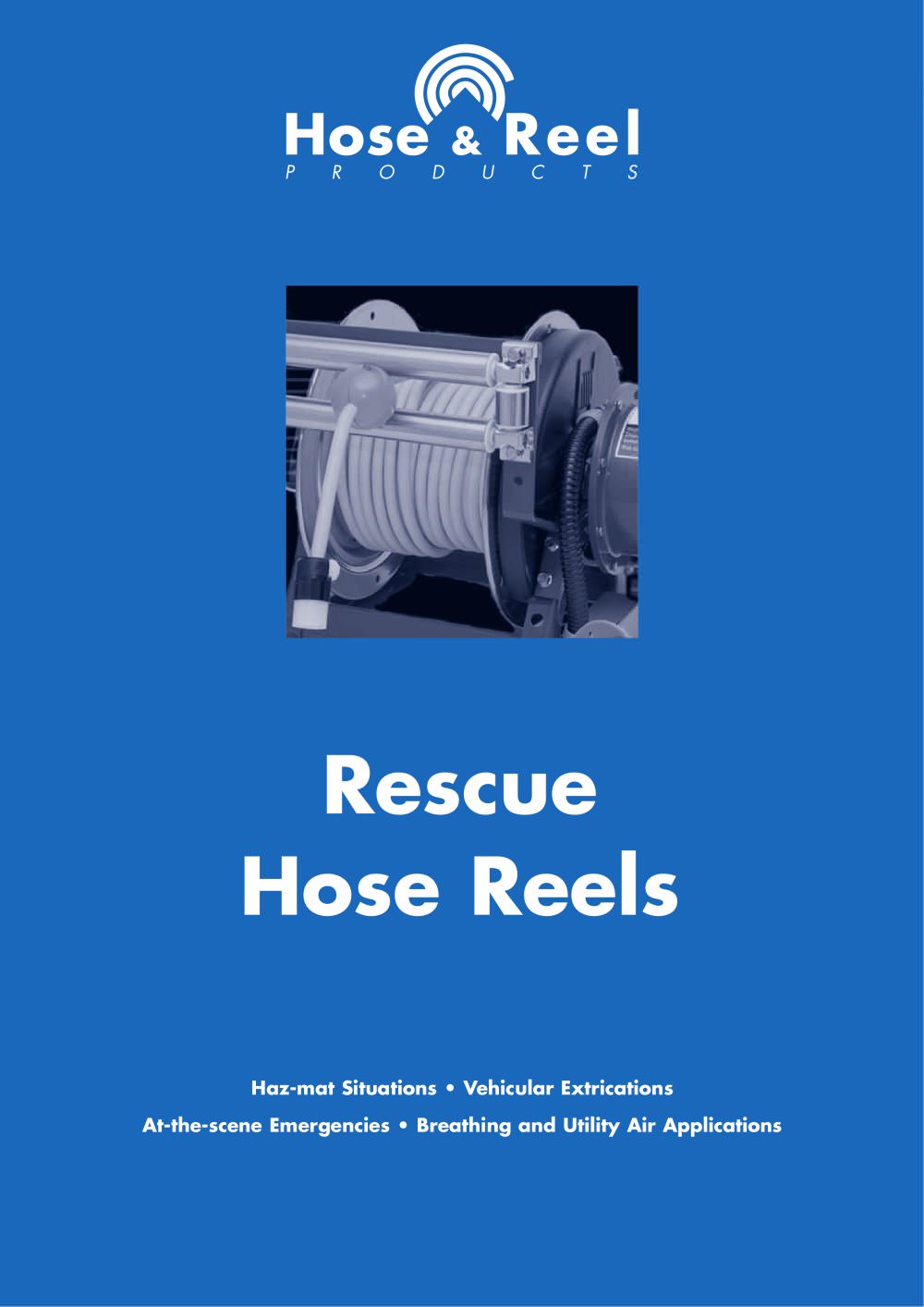

Hose > PRODUCTS & Reel > Haz-mat Situations Vehicular ExtricationsAt-the-scene Emergencies Օ Breathing and Utility Air Applications size="-2">

Open the catalog to page 1

Rescue Reels Hose & Reel Products Rescue Reels come to the rescue inemergency situations. The F1500 hose reel is a rugged, but lightweight reel thatՒs ideal for utility air or breathing air when specified. The CR1600 handles live electric cable and is invaluable when you need power at the scene of an emergency. Օ The durable F2000 dual-hose reel is unsurpassed in rescue situations that require hydraulic hose for power tools such as cutters, spreaders, or jacks. The hose of these Rescue Reels are:Amkus compatible (on request)Holmako compatible (on request)Hurs compatible (on request) > Introduction/Contents...

Open the catalog to page 2

Rescue Reels

Open the catalog to page 6

Rescue Hose Reels

Rescue Hose Reels
