Aviation Reels

Product catalog summary

Introduction
The document provides a comprehensive overview of aviation hose and reel products, focusing on refueling and airport hydrant fueling operations. It highlights the standard industry models, emphasizing high-quality construction using materials like 5000 and 6000 Series aluminum and 304 stainless steel to prevent rust and corrosion.

Specifications
The catalog details various reel types, including manual or power rewind reels, and single wrap power rewind reels. Key specifications include:

Pressure capacity up to 41 bar.
Temperature range from -40°C to +107°C, depending on the model.
Materials used for jet fuels include aluminum and stainless steel internals.

Reel Types and Features

Manual or Power Rewind Reels: Available in sizes from 1" to 4" I.D., featuring gear-driven crank rewind or chain and sprocket drive powered by electric, hydraulic, or compressed air motors. Optional auxiliary crank rewind and various brake systems are available.
Single Wrap Power Rewind Reels: Designed for effortless and fast rewinding, these reels are powered by electric, hydraulic, or compressed air motors. They include features like a 12-volt rewind and comet brake.

Model Specifications
The document includes detailed tables listing model numbers, hose capacities, approximate weights, and dimensions for each reel type. These tables help in selecting the appropriate reel based on specific operational needs.

Notes and Recommendations
Specifications are subject to change, and custom configurations are available upon request. The document advises consulting the factory for specific pressure and temperature requirements and highlights the availability of accessories like rollers and mounting brackets.

Conclusion
The catalog serves as a detailed guide for selecting aviation reels, providing essential information on construction materials, operational specifications, and customization options to meet diverse aviation fueling needs.

Catalog excerpts

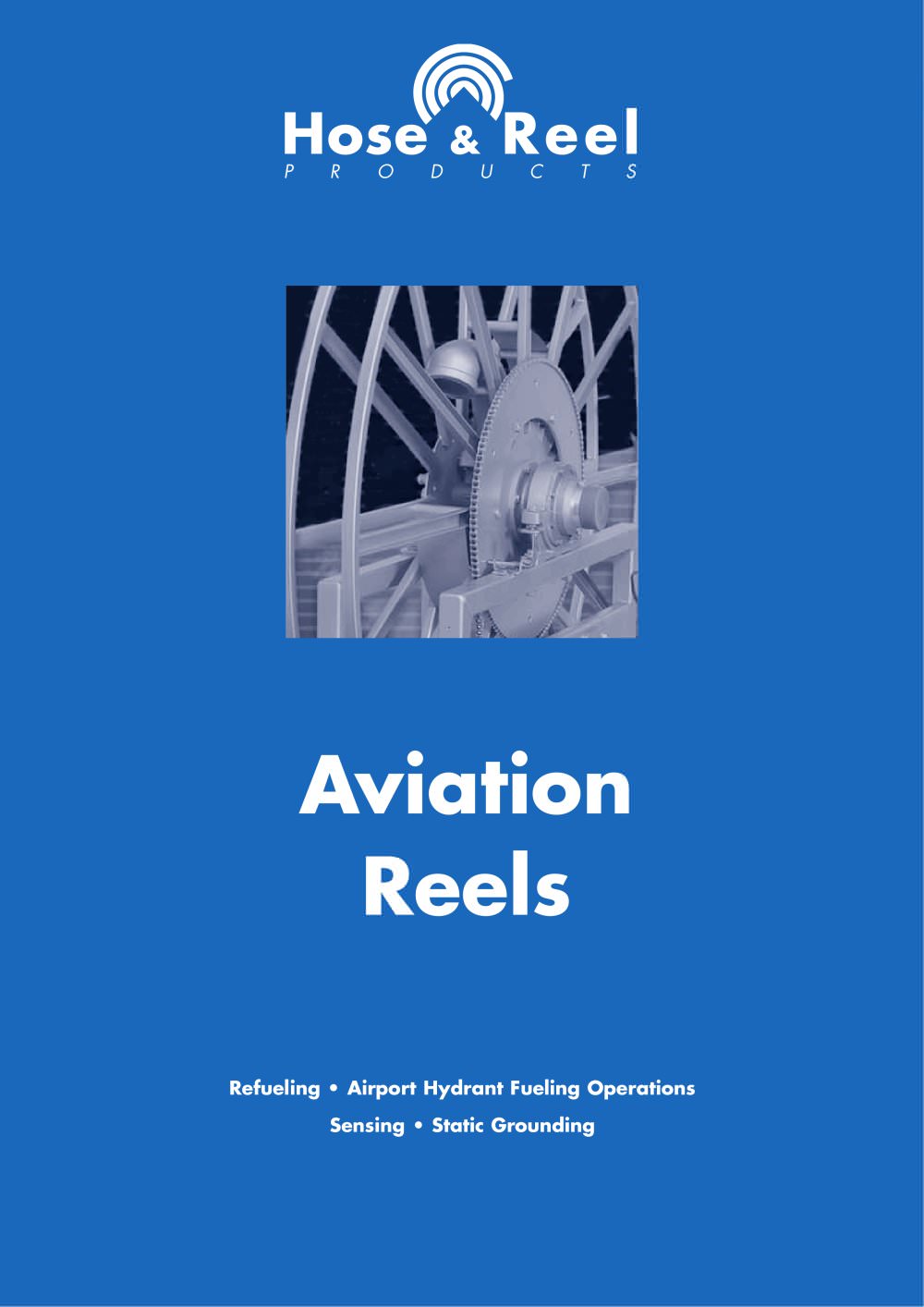

Hose P R O D & U Reel C T S Aviation Reels Refueling • Airport Hydrant Fueling Operations Sensing • Static Grounding

Open the catalog to page 1

Note to the designers & engineers. Aviation Reels The reels shown in this catalog are the standard of the industry. These models reflect various installation and per- formance requirements. The high quality of our standard steel construction is only the beginning. Hose & Reel Products offers any size configuration to fit a defined space, and we construct many models of reels of aluminum or stainless steel. Specifically, we use 5000 and 6000 Series aluminum and 304 stainless steel in the manufacture of frames, discs, drums and internals as well as other structural components. This type of construction...

Open the catalog to page 2

Manual or Power Rewind reels • A strong, heavy-duty reel. • Gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic or compressed air • Optional auxiliary crank rewind for power rewind reels. • Crank rewind reels supplied with pinion brake and power rewind reels with a comet brake. • 90° ball bearing swivel joint with 1-1/2" female BSP threads and 2" victaulic groove. • Flanged riser with 1-1/2" female BSPs threads. • Standard inlet, outlet riser, hub assembly are aluminum • Rollers and roller mounting brackets are accessory items. Specify roller position. • Consult...

Open the catalog to page 3

Hose & Reel Manual or Power Rewind reels • Gear-driven crank rewind, or chain and sprocket drive powered by an electric, hydraulic or compressed air • Optional auxiliary crank rewind for power reels. • Crank rewind reels supplied with pinion brake and power rewind reels with a comet brake. • 90° ball bearing swivel joint with 2-1/2" victaulic. • Flanged riser with 2" female BSP threads. • Standard inlet, riser, hub assembly are aluminum for jet • Rollers and roller mounting brackets are accessory items. Specify roller position. • Consult factory for other pressures & temps. Standard Configuration...

Open the catalog to page 4

Hose & Reel Manual or Power Rewind reels • Rugged, industrial-duty channel frame construction. • Gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic or compressed air • Pinion shaft brake as auxiliary crank rewind on power reels, at extra cost. • Crank rewind supplied with pinion brake, power reels with comet brake. Other brakes and locking devices may be specified. • 90° ball bearing swivel joint with 3" victaulic groove. • Flanged riser with 3" female BSP threads. • Standard inlet, outlet riser and hub assembly are • Rollers and roller mounting brackets are...

Open the catalog to page 5

Manual or Power Rewind reels • Rugged, industrial-duty channel frame construction. • Gear-driven crank rewind, or chain and sprocket drive powered by an electric, hydraulic or compressed air • Pinion shaft brake as auxiliary on power reels, at extra • Crank rewind reels supplied with pinion brake, power reels with comet brake. Other brakes and locking • 90° ball bearing swivel joint with 4" female BSP • Flanged riser with 4" female BSP threads. • Standard outlet riser and hub assembly are steel with iron inlet swivel joint. For jet fuels can be supplied in stainless steel, at extra cost. • Rollers...

Open the catalog to page 6

7 Av i a t i o n R e e l s to handle 1-1/2“ through 3” I.D. hose 5000 Single Wrap Power Rewind reels • Effortless and fast rewinding, wrapping, guiding of hose. • Chain and sprocket drive powered by electric, hydraulic, or compressed air motor. • Auxiliary crank rewind, optional. • 12 volt rewind, comet brake, reduction unit standard. • Air brake optional. • Inlet, hub assembly is aluminum and/or stainless steel for jet fuel. • Consult factory for other pressures & temps. Series 5100 • 90° ball bearing swivel joint 1-1/2" female BSP threads, 2" victaulic groove, flanged riser with 1-1/2" female...

Open the catalog to page 7
