Witte Gerätebau Barskamp KG offers a range of hook clamps designed for secure fixation of large surface car parts, particularly in areas that are difficult to access. These clamps are economical, compact, and easy to use, with compatibility to current systems. They can be operated via lever or hex key and are available with one or two hooks, positioned on the right, left, or both sides.

Certifications
The company is certified under DIN EN ISO 9001, DIN EN ISO 9100, and QSF-A for aerospace suppliers.

Product Features
The hook clamps include a rotation and shim unit allowing for 360° rotation and ±1mm shim in X, Y, and Z directions. The new Compact “ECO” hook clamp incorporates light materials like aluminum alloys, reducing wear parts and integrating functions for high performance in automotive body fixturing.

Technical Specifications
Hook clamps are adaptable to sheet metal parameters, with specifications such as hole contour, nominal diameter, tolerance, height of raised edge, sheet metal thickness, radius, and slot length. The Compact series includes models like "Eco," "Classic," "Exzenter," and "Mini," each with specific dimensions and force capacities.

Special Features
Special hook clamps include spring-loaded hooks with predefined clamping forces, mechanical clamps with self-centering pins, and pneumatic or hydraulic operated clamps. The autocenter hook clamps support and center workpieces through radial movement of hooks.

Contact Information
Witte has offices in Germany, Asia, USA & Canada, and Mexico, providing contact details for each location.

Catalog excerpts

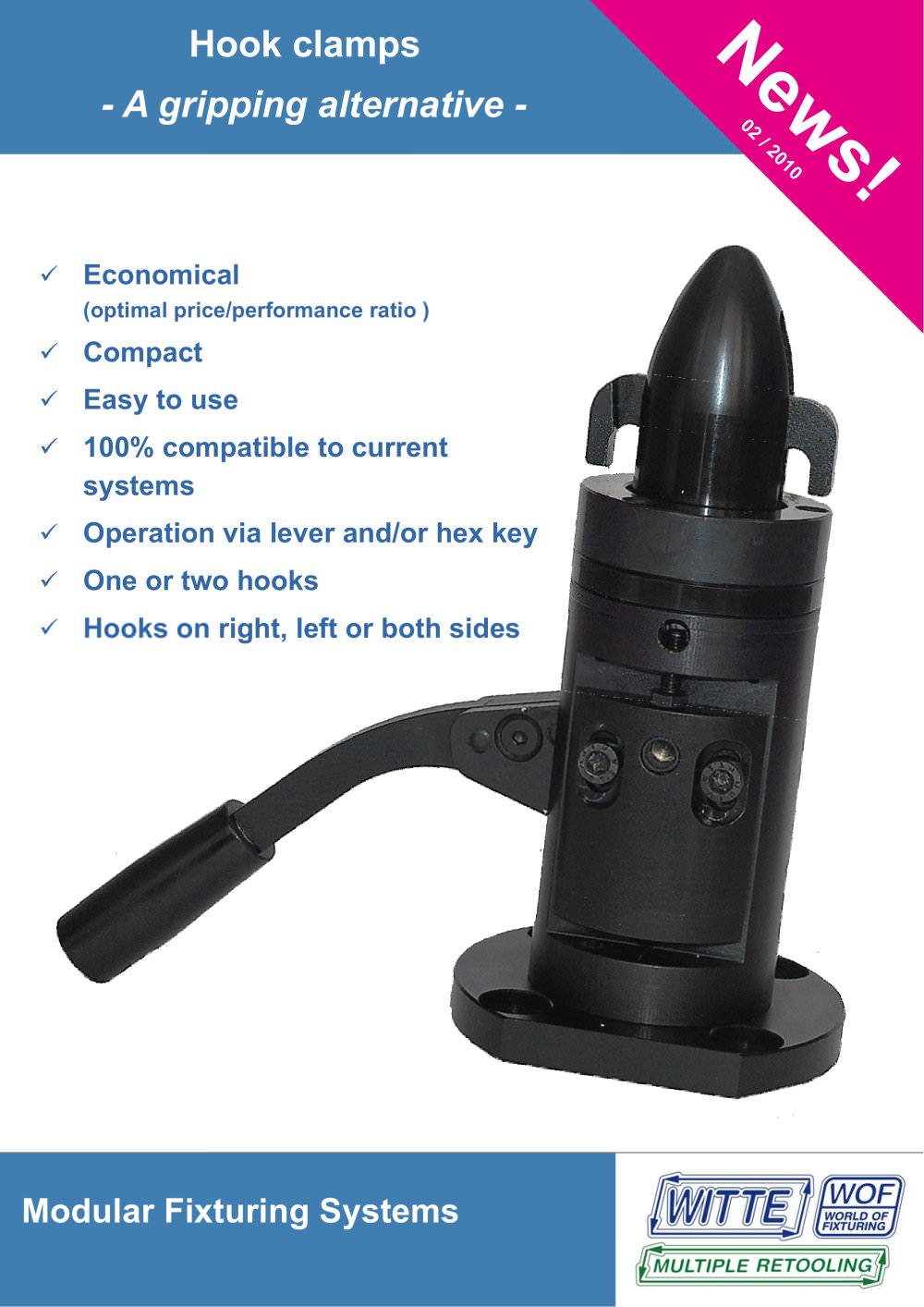

Hook clamps - A gripping alternative - .. Economical (optimal price/performance ratio ) .. Compact .. Easy to use .. 100% compatible to current systems .. Operation via lever and/or hex key .. One or two hooks .. Hooks on right, left or both sides Modular Fixturing Systems News! 02 / 2010
