Fixinsepct Measuring Accessories

Product catalog summary

Overview: The document provides details on Fixinspect measuring accessories designed for special applications, focusing on modular fixturing systems. It introduces new adapters for various applications, highlighting their features, materials, and specifications.

FX Clutch Pins Adapter: This adapter is designed for holes and is spring-loaded. It is suitable for non-magnetic workpieces and is made from high tensile aluminum for the base and VA for the clutch pins. The adapter is drawn to the workpiece and centered in holes using three spring-loaded clutch pins.

FX Clamping Adapter: This adapter is used for welded bolts and operates with three jaws using centric springs. It is also made from high tensile aluminum for the base and VA for the jaws.

FX Adapter for Slots: Designed for non-magnetic materials, this adapter is centered via width using a spring-loaded cone and via length with an independent spring-loaded cone blade. The materials used are high tensile aluminum for the base and VA for the cone and blade.

Color Options: The standard color for these adapters is red, with other colors available upon request.

Specifications: The document lists various article numbers with corresponding dimensions, maximum lengths, and adapter diameters for different applications, including bolt and hole diameters and sheet thicknesses.

Contact Information: The document provides contact details for Horst Witte Gerätebau Barskamp KG in Germany, Witte Far East Pte Ltd in Singapore, Witte America in the USA and Canada, and Horst Witte de Mexico SA de CV in Mexico, including addresses, phone numbers, fax numbers, and email addresses.

Catalog excerpts

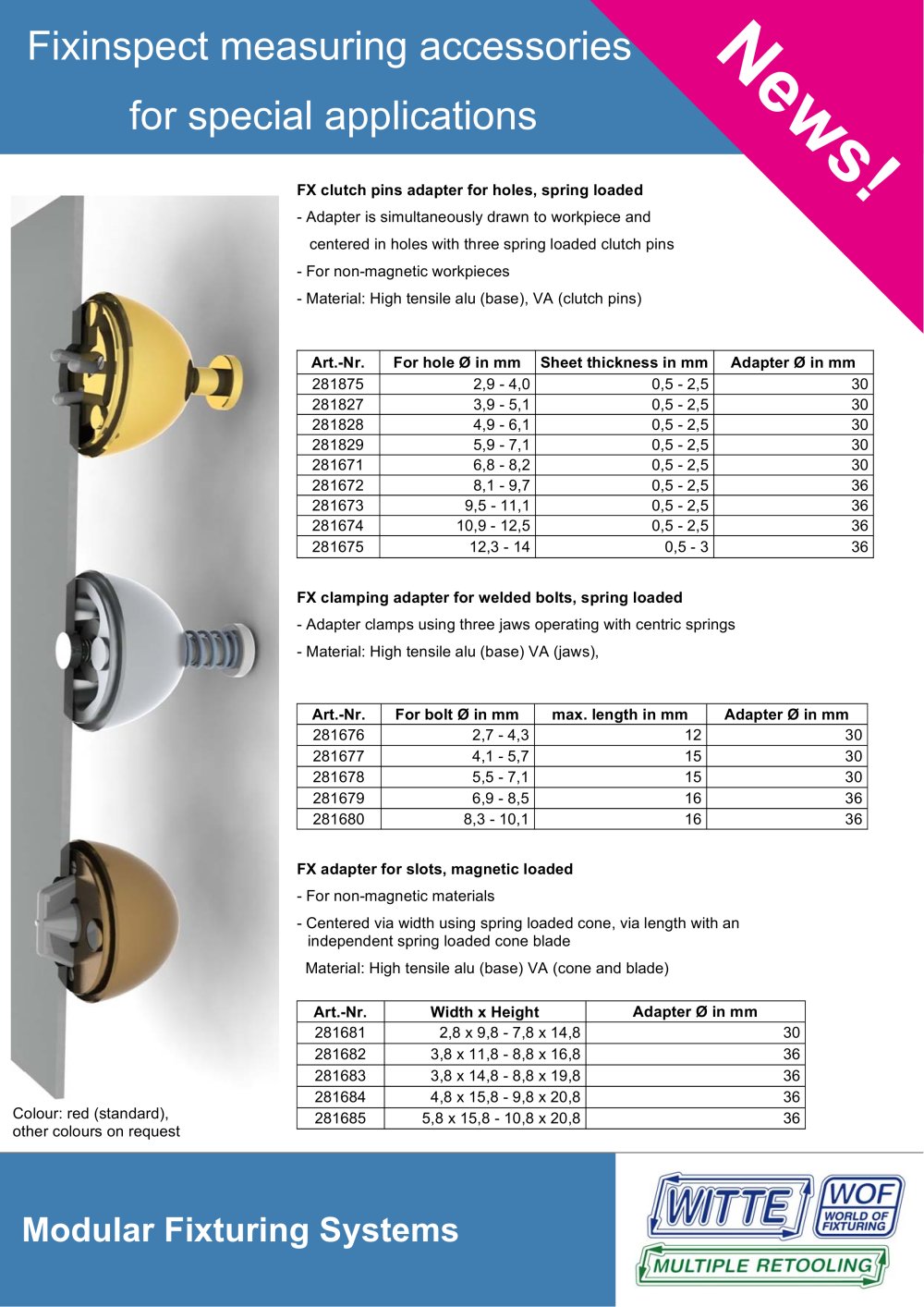

Fixinspect measuring accessories for special applications Modular Fixturing Systems News! FX clutch pins adapter for holes, spring loaded - Adapter is simultaneously drawn to workpiece and centered in holes with three spring loaded clutch pins - For non-magnetic workpieces - Material: High tensile alu (base), VA (clutch pins) FX clamping adapter for welded bolts, spring loaded - Adapter clamps using three jaws operating with centric springs - Material: High tensile alu (base) VA (jaws), FX adapter for slots, magnetic loaded - For non-magnetic materials - Centered via width using spring loaded cone, via length with an independent spring loaded cone blade Material: High tensile alu (base) VA (cone and blade) Colour: red (standard), other colours on request Art.-Nr. Width x Height 281681 2,8 x 9,8 - 7,8 x 14,8 281682 3,8 x 11,8 - 8,8 x 16,8 281683 3,8 x 14,8 - 8,8 x 19,8 281684 4,8 x 15,8 - 9,8 x 20,8 281685 5,8 x 15,8 - 10,8 x 20,8 Adapter Ø in mm 30 36 36 36 36 Art.-Nr. For bolt Ø in mm max. length in mm 281676 2,7 - 4,3 12 281677 4,1 - 5,7 15 281678 5,5 - 7,1 15 281679 6,9 - 8,5 16 281680 8,3 - 10,1 16 Adapter Ø in mm 30 30 30 36 36 Art.-Nr. For hole Ø in mm Sheet thickness in mm 281671 6,8 - 8,2 0,5 - 2,5 281672 8,1 - 9,7 0,5 - 2,5 281673 9,5 - 11,1 0,5 - 2,5 281674 10,9 - 12,5 0,5 - 2,5 281675 12,3 - 14 0,5 - 3 Adapter Ø in mm 30 36 36 36 36 281875 2,9 - 4,0 0,5 - 2,5 30 281827 3,9 - 5,1 0,5 - 2,5 30 281828 4,9 - 6,1 0,5 - 2,5 30 281829 5,9 - 7,1 0,5 - 2,5 30

Open the catalog to page 1

Witte - Specialists for Modular Fixturing Systems Subcontracting Vacuum Clamping Systems Germany Horst Witte Gerätebau Barskamp KG Horndorfer Weg 26-28 D-21354 Bleckede Germany Tel.: +49 (0)5854 89-0 Fax: +49 (0)5854 89-40 E-Mail: [email protected] www.horst-witte.de Asia Witte Far East Pte Ltd 1st. Level 13 Joo Koon Crescent SGP-629021 Singapore Tel.: +65-6248 5961 Fax: +65-6898 4542 E-Mail: [email protected] www.witteasia.com USA & Canada Witte America 120E Market Street Suite 455 Indianapolis, IN 46204 Tel.: 317-822-7003 Fax: 317-822-7009 E-Mail: [email protected] www.witteamerica.com...

Open the catalog to page 2
