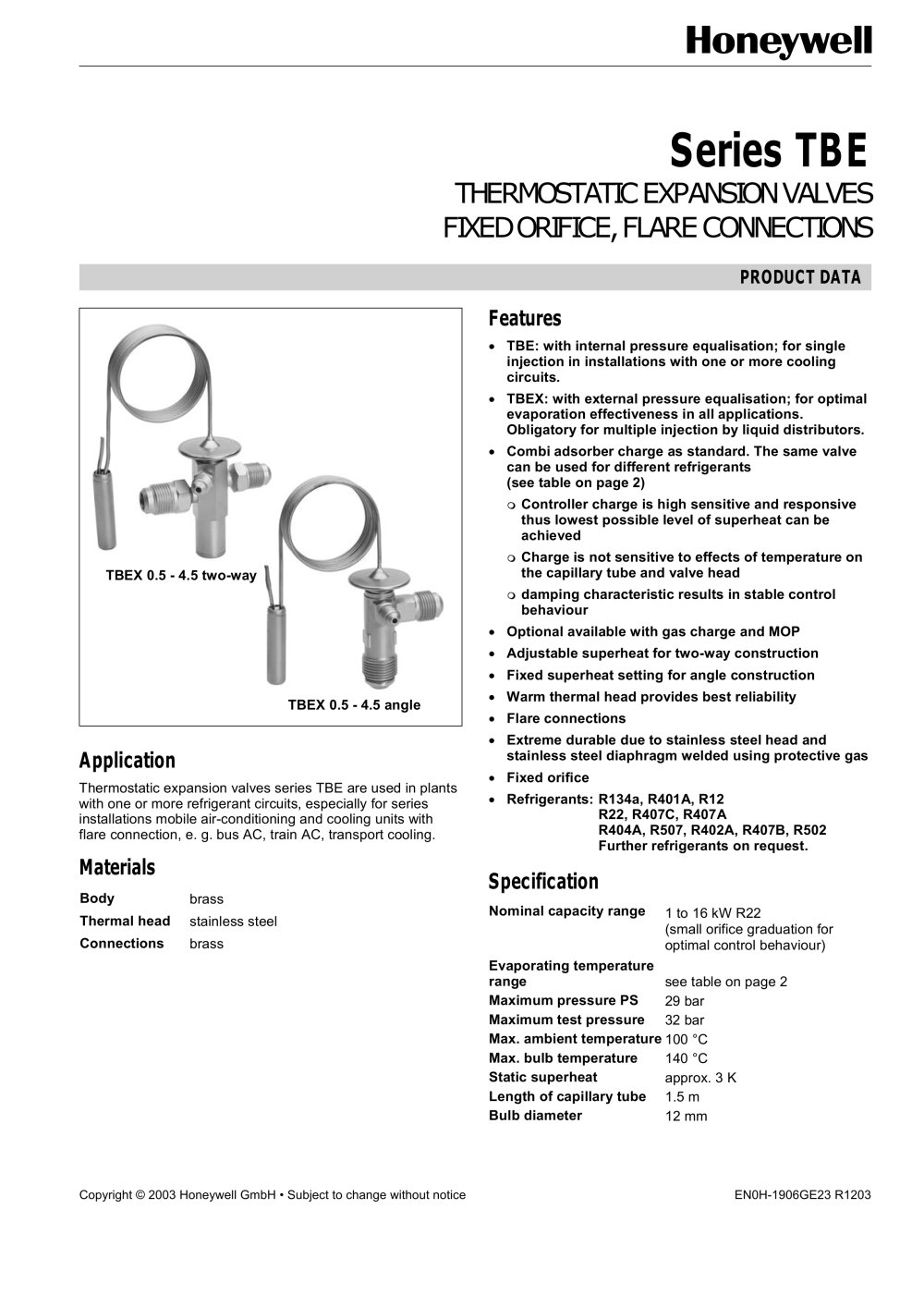

TBE: with internal pressure equalisation; for singleinjection in installations with one or more coolingcircuits. TBEX: with external pressure equalisation; for optimalevaporation effectiveness in all applications.Obligatory for multiple injection by liquid distributors. Combi adsorber charge as standard. The same valvecan be used for different refrigerants (see table on page 2) Controller charge is high sensitive and responsivethus lowest possible level of superheat can beachieved Charge is not sensitive to effects of temperature onthe capillary tube and valve head TBEX 0.5 - 4.5 two-wayTBEX 0.5 - 4.5 angle damping characteristic results in stable control behaviour Optional available with gas charge and MOP Adjustable superheat for two-way construction Fixed superheat setting for angle construction Warm thermal head provides best reliability Flare connections Extreme durable due to stainless steel head andstainless steel diaphragm welded using protective gas > Fixed orifice Thermostatic expansion valves series TBE are used in plantswith one or more refrigerant circuits, especially for seriesinstallations mobile air-conditioning and cooling units withflare connection, e. g. bus AC, train AC, transport cooling. Refrigerants:R134a, R401A, R12R22, R407C, R407AR404A, R507, R402A, R407B, R502Further refrigerants on request. > Thermal head stainless steel Nominal capacity range 1 to 16 kW R22(small orifice graduation foroptimal control behaviour) Connections brass Evaporating temperaturerange see table on page 2 Maximum pressure PS 29 bar Maximum test pressure 32 bar Max. ambient temperature 100 C Max. bulb temperature 140 аC Static superheat approx. 3 K Length of capillary tube 1.5 m Bulb diameter 12 mm > Copyright 2003 Honeywell GmbH ɕ Subject to change without noticeEN0H-1906GE23 R1203 size="-1">

1. Adsorber charge 3. Gas charge Refrigerants Evaporation temperature range Refrigerants and MOP on request.With gas charged valves and MOP it is under all operatingconditions necessary that the bulb is always colder than thecapillary tube and the thermal head!With the Honeywell TBE series the thermal head is heatedadvantageously by the liquid refrigerant. The warm thermalhead is on the safe side at any time. R134a, R401A, R12+15 C to -30 аC R22, R407C, R407A+15 C to -45 аC R404A, R507, R402A,R407B, R5020 ѰC to -50 C Further refrigerants on request.Thermal systems with adsorber charge are completelyinsensitive...

Connections Dimensions (mm) Type Weight Inlet Outlet Pressure D E F G H I (kg) (A) (B) equalisation (C) Two-wayconstruction5/8" UNF3/4" UNF7/16" UNF47.54055384334approx. 0.4 Angleconstruction3/4" UNF7/8" UNF7/16" UNF42.5-46.540-29approx. 0.34 Connection = size of UNF thread TBE(X) 0.5 - 4.5 two-wayTBE(X) 0.5 - 4.5 angle > TBEX0.7R22MOP A -18 C5/8Г x 3/4D Series Pressure equalisation:X = external() = internal Orifice size Refrigerant Adsorber charge with pressurecontrolled behaviour (MOP)() = Adsorber charge without MOP Flare connection UNF(inlet x outlet) D = two-way construction W = angle construction...
