Solenoid Valve Series M Datasheet

Product catalog summary

Installation Instructions Overview
This document provides installation instructions for a product related to automation and control solutions. It includes specifications, procedures, and guidelines for proper installation and operation.

Specifications

Maximum pressure (PS): 35 bar
Test pressure (Ptest): 38.5 bar
Voltage options: 230 V AC, 110/24 V AC, 24 V DC
Temperature range: Maximum 120°C

Operational Parameters

Minimum operating pressure differential (MOPD) for DC: p2 - p1
Pressure differential for AC operation: p2 - p1 with a maximum of 30 bar
Torque specifications: MS = 6 Nm, MA/MD = 3 Nm

Installation Guidelines

Ensure a 90° angle for certain components
Follow EN 378 standards
Use specified torque values for secure installation

Connection Details

Various connection sizes and types are listed, such as ODF and UNF, with corresponding Kv values

Contact Information

Honeywell GmbH, Mosbach, Germany
Phone: +49 (0) 62 61 / 81-475
Email: [email protected]
Website: www.honeywell-cooling.com

Catalog excerpts

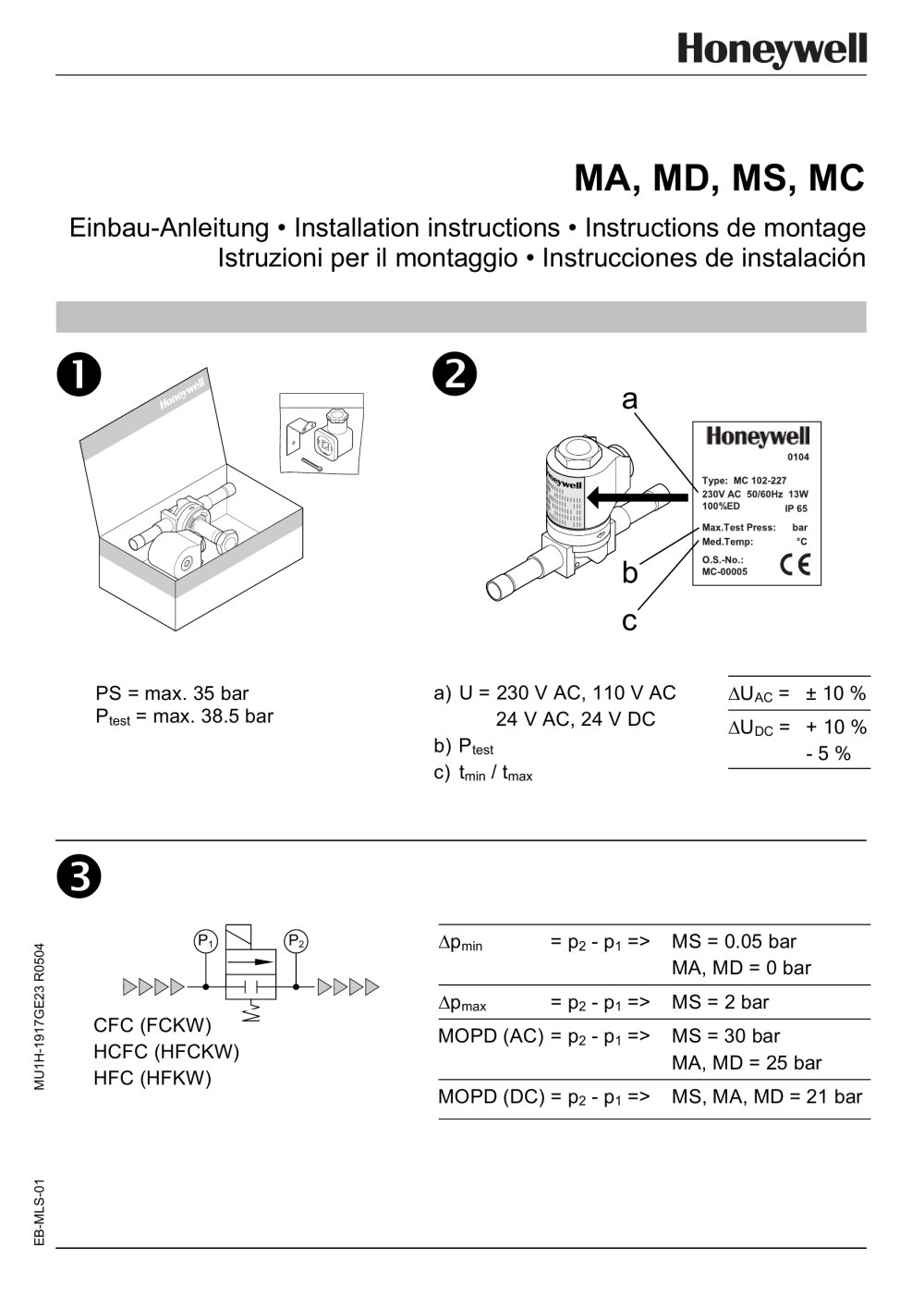

PS = max. 35 barP a)U =230 V AC, 110 V AC24 V AC, 24 V DCb)P U > AC = 10 % > test = max. 38.5 bar U > DC =+ 10 % > test - 5 % c)t > min / t > max P 1 P 2 p > min = p > 2 - p > 1 => MS = 0.05 bar MA, MD = 0 bar p > max = p > 2 - p > 1 => MS = 2 bar CFC (FCKW)HCFC (HFCKW)HFC (HFKW) MOPD (AC)= p > 2 - p > 1 => MS = 30 bar MA, MD = 25 barMOPD (DC)= p > 2 - p > 1 => MS, MA, MD = 21 bar > EB-MLS-01MU1H-1917GE23 R0504 size="-4">

Open the catalog to page 1

2 > Subject to change without notice ? MU1H-1917GE23 R0504 size="-1">

Open the catalog to page 2

max. 120 C MS = 6 NmMA, MD = 3 Nm > Subject to change without notice ? MU1H-1917GE23 R0504 3 size="-1">

Open the catalog to page 3

230 V AC = 230 V AC NLPE 1 Nm1 Nm 4 x 90DIN 43650 > OK OK 4 Subject to change without notice ? MU1H-1917GE23 R0504 size="-3">

Open the catalog to page 4

A B Kv [m > 3 /h] A x B MA 062MMS 0.17 6 x 6 mm ODF MA 062S 0.17 1/4" x 1/4" ODF MD 062 0.17 7/16" x 7/16" UNF MD 062MMS 0.17 6 x 6 mm ODF MD 062S 0.17 1/4" x 1/4" ODF MD 102 0.22 7/16" x 7/16" UNF MD 102MMS 0.22 6 x 6 mm ODF MD 102S 0.22 1/4" x 1/4" ODF MD 103 0.23 5/8" x 5/8" UNF MD 103MMS 0.23 10 x 10 mm ODF MD 103S 0.23 3/8" x 3/8" ODF MS 103 0.90 5/8" x 5/8" UNF MS 103MMS 0.90 10 x 10 mm ODF MS 103S 0.90 3/8" x 3/8" ODF MS 104MMS 0.90 12 x 12 mm ODF MS 104S 0.90 1/2" x 1/2" ODF MS 124 1.60 3/4" x 3/4" UNF MS 124MMS 1.60 12 x 12 mm ODF MS 124S 1.60 1/2" x 1/2" ODF MS 125S 1.60 16 x 16 mm...

Open the catalog to page 5
