TWIN BASES for Zero Point Quick Clamping Systems

Product catalog summary
Overview: The document discusses Zero Point Quick Change Devices, specifically focusing on double-sided positioning tombstones and twin base columns. These devices are designed to enhance the efficiency of 3-axis machine tools by allowing dual-sided processing.
Specifications:
  • Double-sided Positioning Tombstone: Utilizes the machine tool's processing space, suitable for users frequently engaging in dual-sided processing.
  • Twin Base Models:
    • M-52x52 (8008G): Size 146x76x168 mm, Weight 15.5 kg, Pull Studs M-52x52PS.
    • M-96x96 (8056G): Size 192x118x247 mm, Weight 36.5 kg, Pull Studs M-96x96PS.
    • M-52/96 (8056G): Size 192x118x247 mm, Weight 37 kg, Pull Studs M-52x52PS / M-96x96PS.
Key Features:
  • These devices do not require mounting holes, simplifying installation.
  • They are equipped with specific pull studs for secure attachment.
Diagrams: The document includes diagrams illustrating the dimensions and configurations of the twin base models, highlighting the placement of pull studs and other critical measurements.
See more

Catalog excerpts

TWIN BASES for Zero Point Quick Clamping Systems-1

62 ZERO POINT QUICK CHANGE DEVICES / COLUMNS Columns Double-sided positioning tombstone inherits the characteristics of the positioning plate and can utilize the processing space of the machine tool. Suitable for 3-axis machine tool users who often apply dual-sided processing.

 Open the catalog to page 1
TWIN BASES for Zero Point Quick Clamping Systems-2

COMBO ZERO POINT QUICK CHANGE DEVICES / COLUMNS / TWIN BASE Mounting Holes — Mounting Holes © 2026 COPYRIGHT. HOMGE MACHINERY IND. CO., LTD.

 Open the catalog to page 2

All HOMGE MACHINERY IND. CO., LTD. catalogs and technical brochures

  1. Five Axis Vises + Zero Point Quick Change Clamping Systems -G (V.2026)
    Five Axis Vises + Zero Point Quick Change Clamping Systems -G (V.2026)

    90  Pages

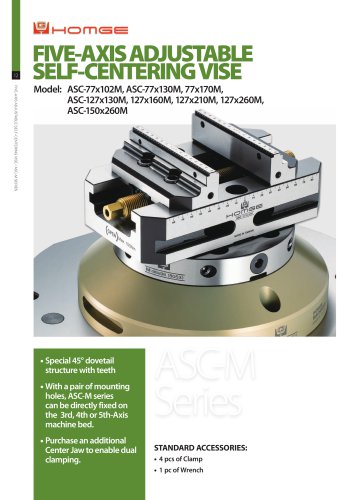

  2. Five-axis Adjustable Self-centering Vise (ASC-M)
    Five-axis Adjustable Self-centering Vise (ASC-M)

    8  Pages

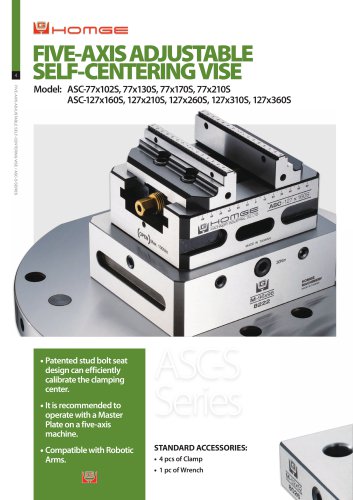

  3. Five-axis Adjustable Self-centering Vise (ASC-S)
    Five-axis Adjustable Self-centering Vise (ASC-S)

    8  Pages

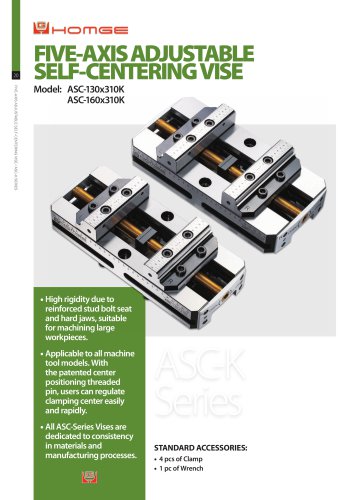

  4. FIVE-AXIS-ADJUSTABLE-SELF-CENTERING-VISE-ASC-K
    FIVE-AXIS-ADJUSTABLE-SELF-CENTERING-VISE-ASC-K

    2  Pages

  5. FIVE-AXIS COMPACT VISE (ACK-, Single Direction)
    FIVE-AXIS COMPACT VISE (ACK-, Single Direction)

    2  Pages

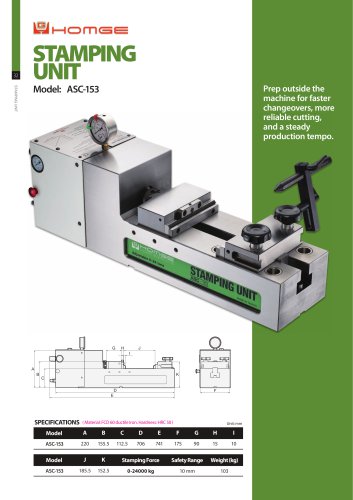

  6. STAMPING UNIT (Model: ASC-153) for Self-Centerting Vises
    STAMPING UNIT (Model: ASC-153) for Self-Centerting Vises

    2  Pages

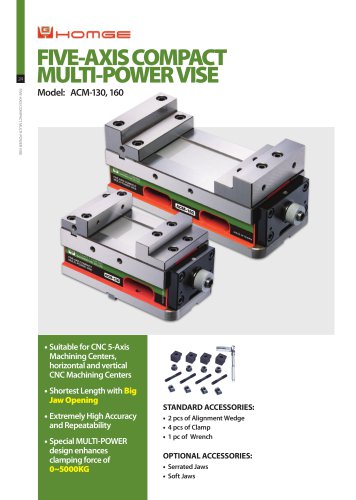

  7. Five-axis Compact Multi-power Vise (ACM-)
    Five-axis Compact Multi-power Vise (ACM-)

    4  Pages

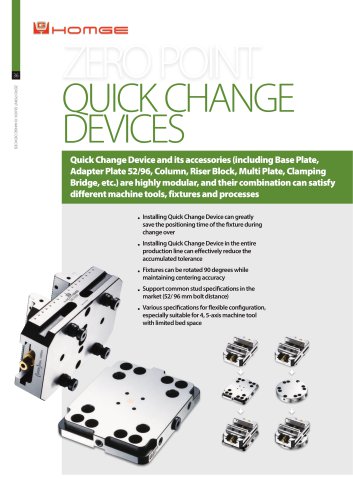

  8. BASE PLATES in Square and Round for Zero Point Quick Changing System
    BASE PLATES in Square and Round for Zero Point Quick Changing System

    7  Pages

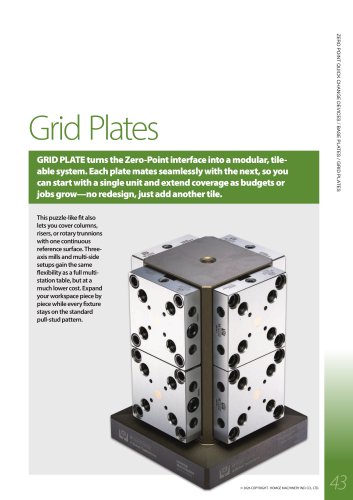

  9. GRID PLATES for Zero Point Quick Clamping Systems
    GRID PLATES for Zero Point Quick Clamping Systems

    2  Pages

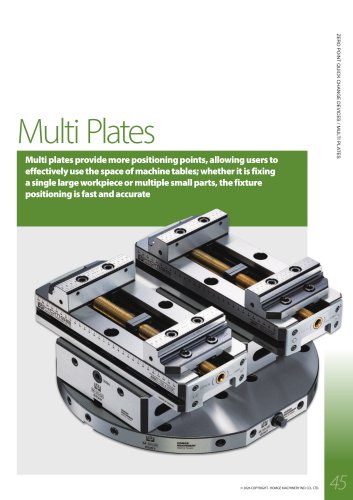

  10. MULTI PLATES for Zero Point Quick Clamping Systems
    MULTI PLATES for Zero Point Quick Clamping Systems

    4  Pages

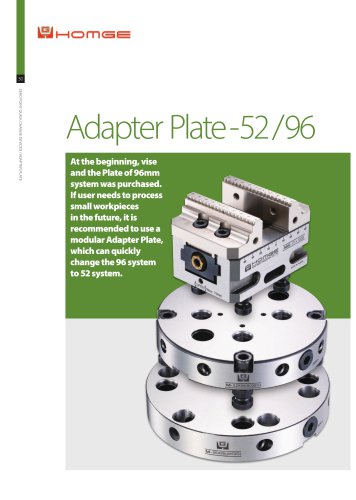

  11. ADAPTER PLATE 96/52 -G (Model: 8003G, 8006G) ZERO POINT QUICK CHANGING RECTANGULAR and ROUND
    ADAPTER PLATE 96/52 -G (Model: 8003G, 8006G) ZERO POINT QUICK CHANGING RECTANGULAR and ROUND

    2  Pages

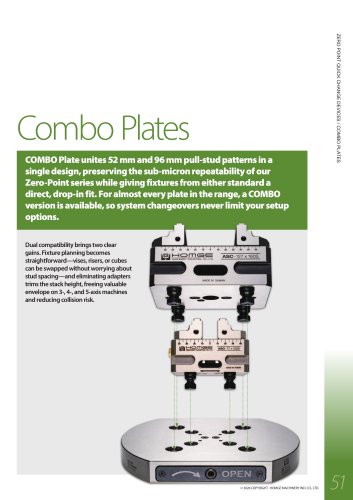

  12. COMBO PLATES for Zero Point Quick Clamping Systems
    COMBO PLATES for Zero Point Quick Clamping Systems

    2  Pages

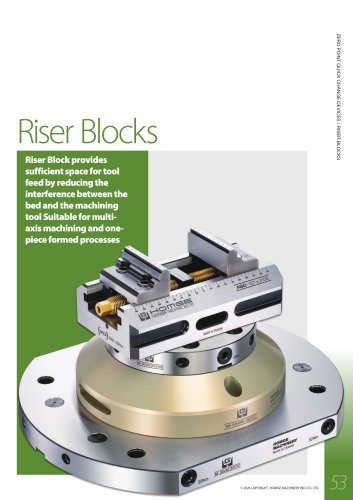

  13. RISER BLOCKS for Zero Point Quick Clamping Systems
    RISER BLOCKS for Zero Point Quick Clamping Systems

    5  Pages

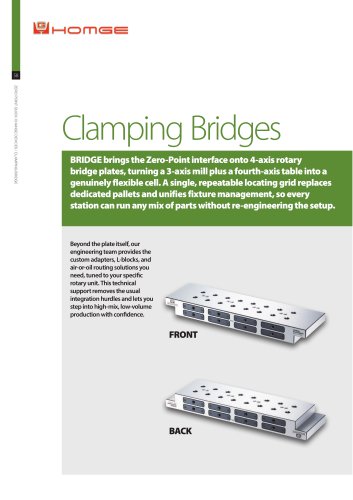

  14. CLAMPING BRIDGES for Zero Point Quick Changing Devices
    CLAMPING BRIDGES for Zero Point Quick Changing Devices

    4  Pages

  15. 90 DEGREE ADAPTERS for Zero Point Quick Clamping Systems
    90 DEGREE ADAPTERS for Zero Point Quick Clamping Systems

    1  Page

  16. MULTI-ADAPTER for Zero Point Quick Clamping Systems
    MULTI-ADAPTER for Zero Point Quick Clamping Systems

    1  Page

  17. CNC TOMBSTONES for Zero Point Quick Clamping Systems
    CNC TOMBSTONES for Zero Point Quick Clamping Systems

    3  Pages

  18. 3-FACED PIRAMIDS for Zero Point Quick Clamping Systems
    3-FACED PIRAMIDS for Zero Point Quick Clamping Systems

    3  Pages

  19. Master Gauging Pallet for Zero Point Quick Clamping Systems
    Master Gauging Pallet for Zero Point Quick Clamping Systems

    2  Pages

  20. Dovetail Fixture_ Top Clamping for Zero Point Quick Clamping Systems
    Dovetail Fixture_ Top Clamping for Zero Point Quick Clamping Systems

    3  Pages

  21. Collect Chuck_ Top Clamping for Zero Point Quick Clamping Systems
    Collect Chuck_ Top Clamping for Zero Point Quick Clamping Systems

    1  Page

  22. Machine Tool Accessories_HOMGE_e-Catalogue
    Machine Tool Accessories_HOMGE_e-Catalogue

    122  Pages

  23. ECMC Permanent Magnetic Vise
    ECMC Permanent Magnetic Vise

    2  Pages

  24. ACM-S CNC COMPACT MULTI-POWER SUPER VISE
    ACM-S CNC COMPACT MULTI-POWER SUPER VISE

    1  Page

  25. MULTI FLEX VISE_ HRV Series
    MULTI FLEX VISE_ HRV Series

    8  Pages

  26. HRV Series Multi-Station Clamping Vise (Multi-Flex Downward-Force Workholding) FD
    HRV Series Multi-Station Clamping Vise (Multi-Flex Downward-Force Workholding) FD

    3  Pages

  27. HRV Series Multi-Station Clamping Vise (Multi-Flex Downward-Force Workholding) MD
    HRV Series Multi-Station Clamping Vise (Multi-Flex Downward-Force Workholding) MD

    3  Pages

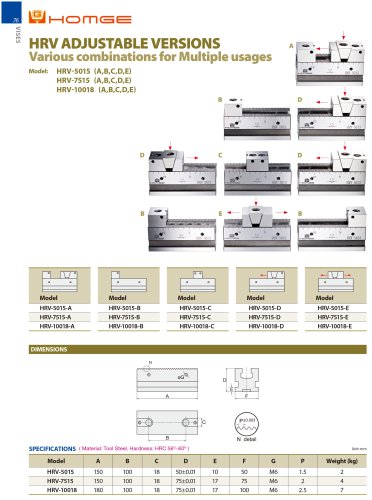

  28. MULTI FLEXI VISE (Adjustable HRV)
    MULTI FLEXI VISE (Adjustable HRV)

    3  Pages

  29. HTB DOUBLE CNC MULTI-POWER VISE
    HTB DOUBLE CNC MULTI-POWER VISE

    2  Pages

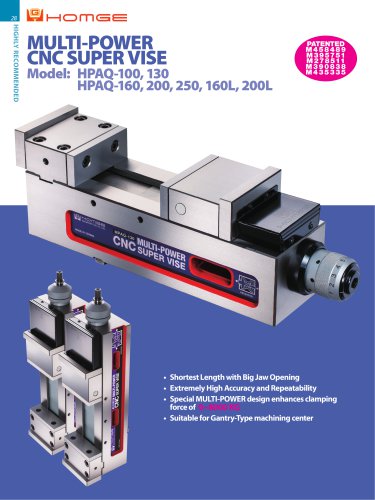

  30. HPAQ Multi-power CNC Super Vise 4', 5")
    HPAQ Multi-power CNC Super Vise 4', 5")

    4  Pages

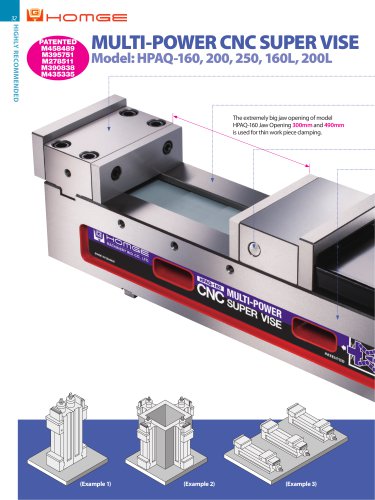

  31. HPAQ Multi-power CNC Super Vise 6', 8", 10")
    HPAQ Multi-power CNC Super Vise 6', 8", 10")

    4  Pages

  32. HPAQ-F Multi Power CNC Super-Vise (Front-Mounting Type)
    HPAQ-F Multi Power CNC Super-Vise (Front-Mounting Type)

    1  Page

  33. HPAQ-II-F Multi Power CNC Super-Vise (Front-Mounting Type)
    HPAQ-II-F Multi Power CNC Super-Vise (Front-Mounting Type)

    1  Page

  34. HPAC MULTI-POWER CNC PRECISION FIXED ANGLE VISE
    HPAC MULTI-POWER CNC PRECISION FIXED ANGLE VISE

    6  Pages

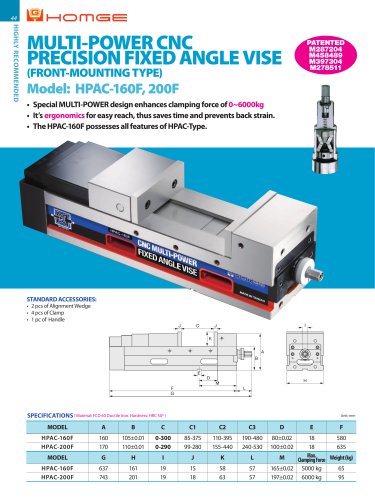

  35. HPAC-F Multi-Power CNC Precision Fixed Angle Vise (Front-Mounting Type)
    HPAC-F Multi-Power CNC Precision Fixed Angle Vise (Front-Mounting Type)

    1  Page

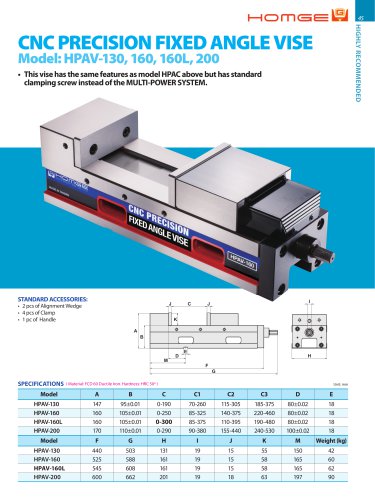

  36. HPAV CNC PRECISION FIXED ANGLE VISE
    HPAV CNC PRECISION FIXED ANGLE VISE

    1  Page

  37. HPAC-S MULTI-POWER CNC PRECISION FIXED ANGLE VISE
    HPAC-S MULTI-POWER CNC PRECISION FIXED ANGLE VISE

    4  Pages

  38. HVV CNC PRECISION VECTOR VISE
    HVV CNC PRECISION VECTOR VISE

    1  Page

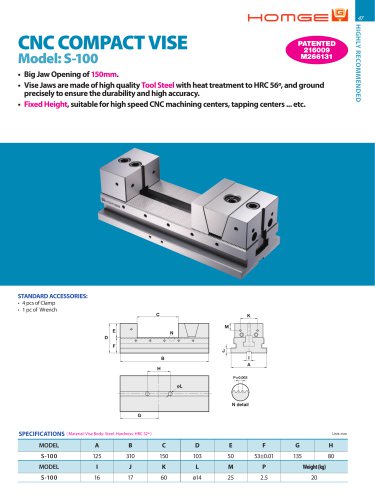

  39. S-100 CNC Compact Vise
