FIVE-AXIS COMPACT VISE (ACK-, Single Direction)

Product catalog summary

Overview: The document provides technical specifications and details for a Five-Axis Compact Vise designed for single-direction clamping, ensuring high precision in positioning with a tolerance of ±0.01mm. It features a Special Angle-Lock System that secures the workpiece accurately, making it suitable for use with precision four- and five-axis CNC machine tools, indexing tables, and various machining centers.

Models: The vise is available in three models: ACK-77x130, ACK-127x160, and ACK-127x210.

Standard Accessories: Each vise comes with 2 mounting screws, 4 clamps, and 1 wrench.

Specifications:

Material: Vise body is made of S50C with rail hardness of HRC 50, and jaws are made of SCM440 with hardness HRC 48-50.
Dimensions: The document provides detailed measurements for each model, including dimensions A, B, C, C1, C2, D, E, F, G, H, I, J, J1, J3, K, K1, K3, N, O, P, Q, and R.
Weight: The weights of the models are 4.9 kg for ACK-77x130, 12.8 kg for ACK-127x160, and 17 kg for ACK-127x210.

Key Features:

Single-direction clamping for repeatable precision.
Special Angle-Lock System for accurate workpiece positioning.
Compatibility with various CNC machine tools and machining centers.

Catalog excerpts

FIVE-AXIS COMPACT VISE (ACK-, Single Direction)-1

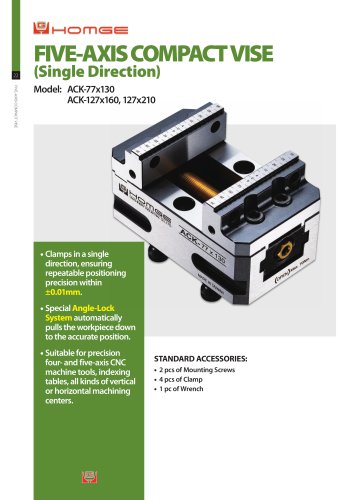

FIVE-AXIS COMPACT VISE 22 (Single Direction) FIVE-AXIS COMPACT VISE • Clamps in a single direction, ensuring repeatable positioning precision within ±0.01mm. • Special Angle-Lock System automatically pulls the workpiece down to the accurate position. • Suitable for precision four- and five-axis CNC machine tools, indexing tables, all kinds of vertical or horizontal machining centers. STANDARD ACCESSORIES: • 2 pcs of Mounting Screws • 4 pcs of Clamp • 1 pc

Open the catalog to page 1

FIVE-AXIS COMPACT VISE (ACK-, Single Direction)-2

FIVE-AXIS COMPACT VISE SPECIFICATIONS ( Material: Vise body S50C. Rail hardness: HRC 50 / Jaws SCM440. Hardness: HRC 48-50 ) ynjt: mm Model J3 K K1 K3 N O P Q R Pull Stud Weight (kg) © 2026 COPYRIGHT. HOMGE MACHINERY IND. CO., LTD.
