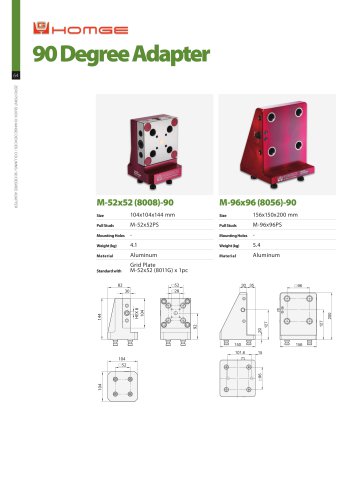

Overview

This document provides technical specifications for 90 Degree Adapters used in zero point quick change devices and columns. These adapters facilitate angular repositioning in modular tooling setups.

Product Variants and Dimensions

• M-96x96 (8056)-90: Dimensions are 156 x 150 x 200 mm (Width x Depth x Height). Weight is 5.4 kg. Constructed from aluminum.
• M-52x52 (8008)-90: Dimensions are 104 x 104 x 144 mm. Weight is 4.1 kg. Also made of aluminum.

Mounting and Compatibility

• Both adapters use pull studs matching their size designation (M-96x96PS and M-52x52PS respectively).
• No mounting holes are specified, indicating direct compatibility with corresponding quick change systems.
• The M-52x52 (8011G) variant includes a standard grid plate supplied as one piece.

Material and Construction

All adapters are made from aluminum, ensuring a balance of strength and lightweight characteristics suitable for precision tooling applications.

Key Parameters

• Sizes: 156x150x200 mm and 104x104x144 mm
• Weights: 5.4 kg and 4.1 kg
• Material: Aluminum
• Pull Studs: M-96x96PS and M-52x52PS

Summary

The 90 Degree Adapters described are designed for integration with zero point quick change systems, providing reliable angular adjustment with robust aluminum construction. Their sizes and pull stud compatibility make them suitable for various modular tooling setups, with the smaller variant including a grid plate for enhanced mounting flexibility.
