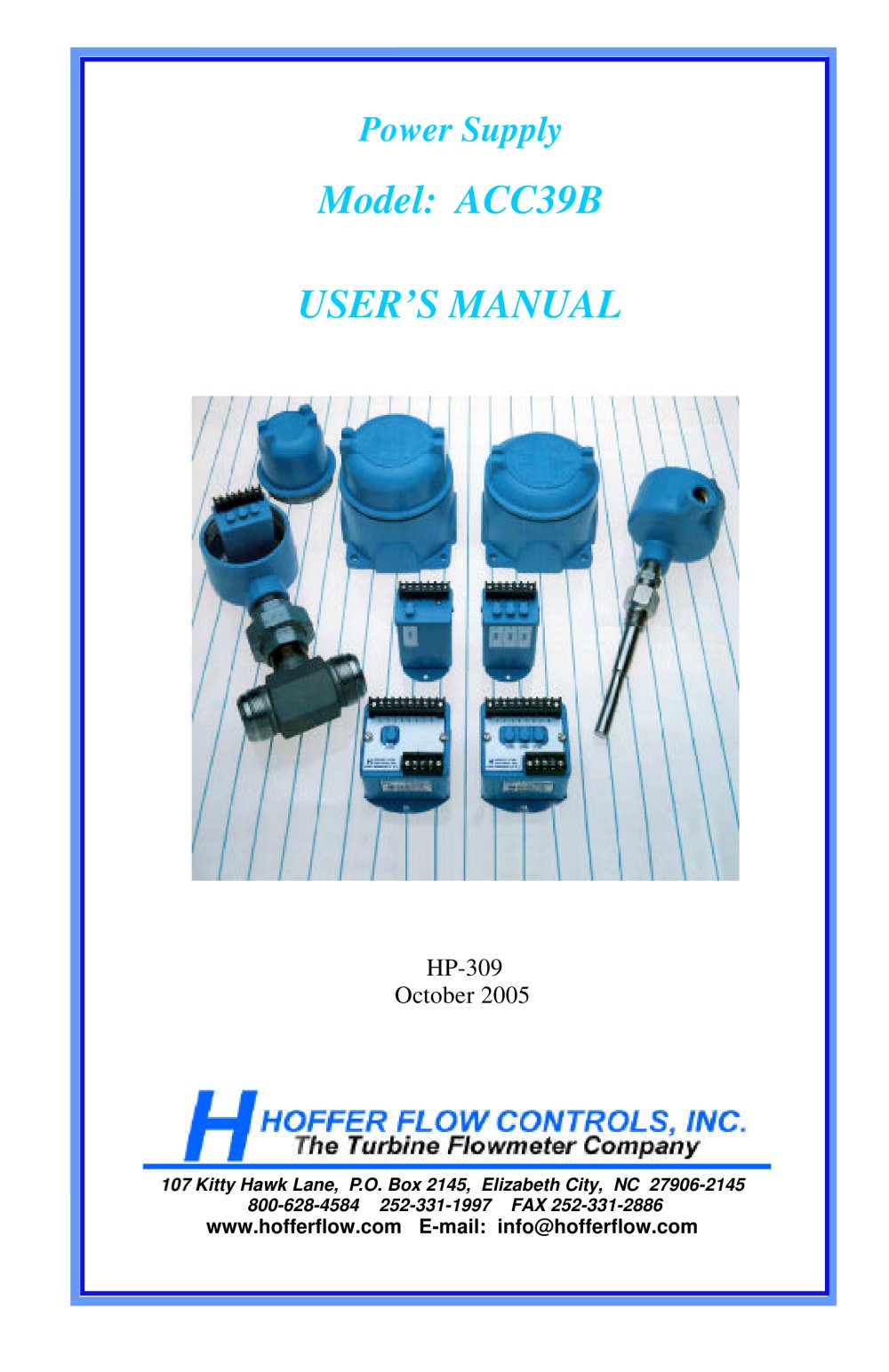

Model ACC39B Power Supply

Model ACC39B Power Supply
12Pages

Catalog excerpts

This page intentionally left blank. HP-309 >

NON-WARRANTY FOR WARRANTY RETURNS, please have the following information available BEFORE contacting HOFFER FLOW CONTROLS:1.P.O. number under which the product was PURCHASED,2.Model and serial number of the product under warranty, and3.Repair instructions and/or specific problems relative to the product.FOR REPAIRS ORCALIBRATIONS, consult HOFFER FLOW CONTROLS for current repair/ calibration charges. Have the following information available BEFORE contacting HOFFER FLOW CONTROLS: 1.P.O. number to cover the COST of the repair/calibration,2.Model and serial number of the productand3.Repair...

Open the catalog to page 3

HOFFER FLOW CONTROLS, INC. ("HFC") warrants HFC's products ("goods") described in the specifications incorporated in this manual to be free from defects in material and workmanship under normal use and service, but only if suchgoods have been properly selected for the service intended, properly installed and properly operated and maintained. This warranty shall extend for a period of one (1) year from the date of delivery to the original purchaser (or eighteen (18)months if the delivery to the original purchaser occurred outside the continentalUnited States). This warranty is extended only...

Open the catalog to page 4

The Model ACC39B is a universal input AC power supply with isolated output voltage of 24 Volts. It is designed for use with 2-wireloop transmitters.The instrument is housed in a general-purpose enclosure and can be mounted directly on a flowmeter, Din Rail or wall mounted using optional mounting brackets or an EX enclosure.This instrument has been designed to conform to the EMC-Directive of the Council of European Communities 89/336/EEC and the following standards: Generic Emission Standard EN 50081-1 Residential, Commercial & Light Industry Environment. Generic Emission Standard EN 50081-2...

Open the catalog to page 7

MODEL ACC39B-( A )-( B )-( C ) PULSE OUTPUT ENCLOSURE STYLE SPECIAL FEATURES PULSE OUTPUT MODEL ACC39B-( A )-( )-( ) OPTION ( A ) (24)24 VDC @ 0.23A. ENCLOSURE STYLE MODEL ACC39B-( )-( B )-( ) OPTION ( B ) (1)GENERAL PURPOSE(D)2" LONG DIN RAIL MOUNT SINGLE UNIT (SEE NOTE ).(3/O)MEETS CLASS 1, DIV. 1 AND 2, GROUPS C, DCLASS II, GROUPS E, F, GCLASS IIINEMA 4X WITH Oђ RING CERTIFIED CSA, ULBODY KILARK #GECCT-3, STOCK #200-0945FLAT COVER, STOCK #200-0533, KILARK #GECBC(3B/O)MEETS CLASS I, DIV. 1 AND 2, GROUPS A, B, C, DCLASS 1, ZONES 1 AND 2, GROUPS IIB + H2, IIACLASS II, DIV. 1 AND 2, GROUPS...
