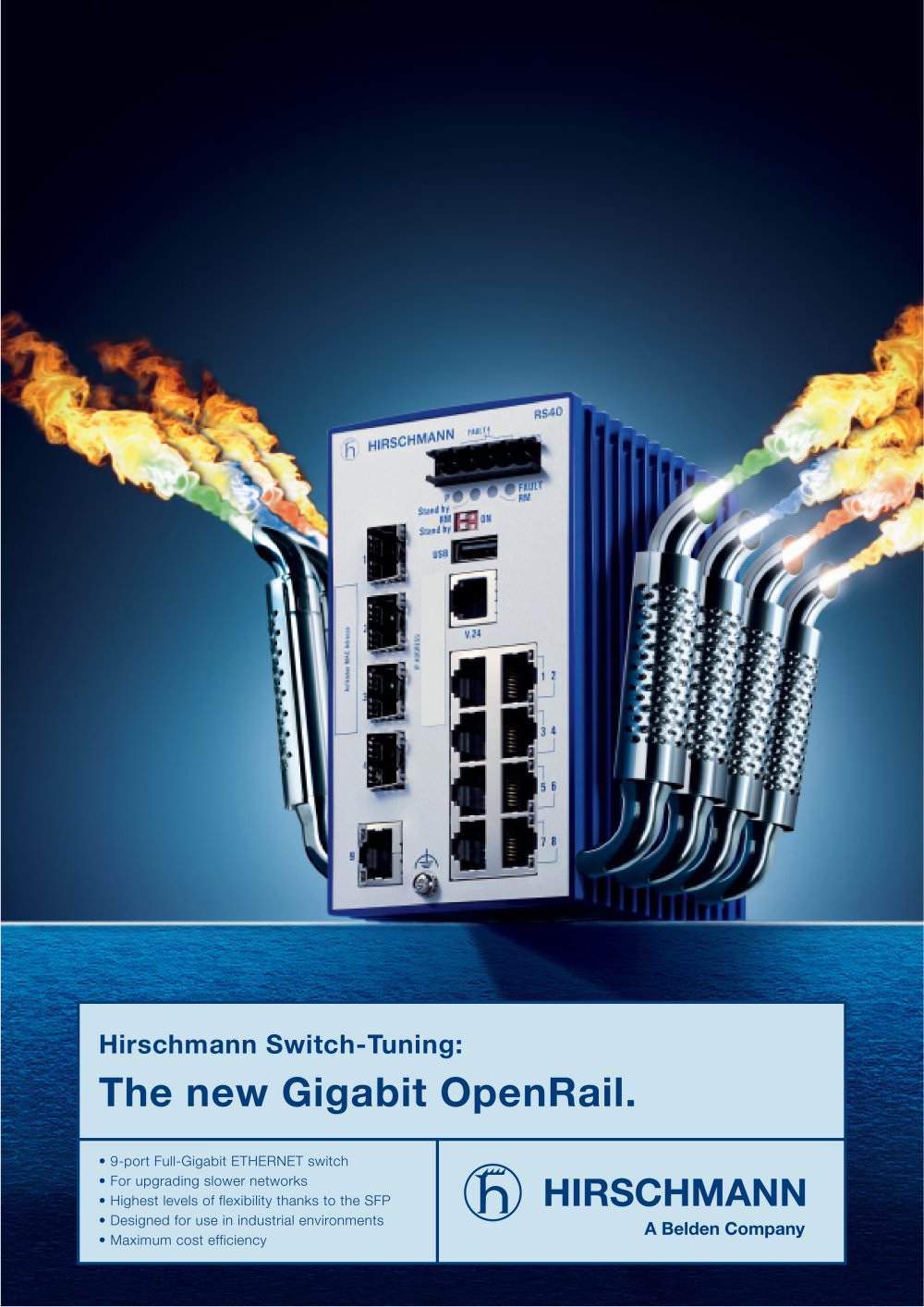

Hirschmann Switch-Tuning: The new Gigabit OpenRail. • 9-port Full-Gigabit ETHERNET switch • For upgrading slower networks • Highest levels of flexibility thanks to the SFP • Designed for use in industrial environments • Maximum cost efficiency

The highly flexible power pack for industrial applications: Gigabit OpenRail Switch. Applications Whether it’s a case of upgrading slower networks or segmenting existing networks – anywhere, where different electrical or optical signals have to be combined, the new Gigabit OpenRail Switches from Hirschmann ensure massive performance and high flexibility: 4 Combo ports and 5 fixed TX ports offer decisive advantages for video monitoring in tunnels, traffic automation, process monitoring in power stations or on cruise ships, supplying data in great bandwidths and in real time.

Configure your Gigabit OpenRail Switch simply with our online tool. configurator.hirschmann.com Free configuration with the OpenRail system from Hirschmann RS40-0009CCCCSDAPHH03.0 RS40- 00 09 CC CC S D A P H H 03.0 Model RS40 Full Gigabit Ports FE 00 none Ports GE 09 9 x1000 Mbits Ports Type 1. Uplink CC 2 x SFP Combo 100/1000Mbit SFP/RJ45 Ports Type 2. Uplink CC 2 x SFP Combo 100/1000Mbit SFP/RJ45 Power supply D 12/24/48 V DC and 24 VAC Temperature range S 0° C up to + 60° C T – 40° C up to + 70° C E – 40° C up to + 70° C inclusive Conformal Coating Software version E Enhanced: Remote...

Gigabit Rail Switch Product name Product description Description Port type and quantity Type Order No. More interfaces Power supply/signaling contact V.24 interface USB interface Network size – lenght of cable Twisted pair (TP) Optical fiber connections Network size – cascadibility Line-/star topology Ring structure (HIPER-Ring) Power requirements Operating voltage Current consumption at 24 V DC Current consumption at 48 V DC Power output in Btu (IT) h Software Management Diagnostics Configuration Security Redundancy functions Filter Realtime Flow Control Ambient conditions Operating...

Product features Maximum power output at every port: Whether it’s a fiber port or wired, the Gigabit OpenRail switches from Hirschmann enable the highest levels of data transfer by means of Full-Gigabit ETHERNET in combination with all the advantages offered by the OpenRail principle at these highest levels of quality: • Large bandwidths e. g. for real time applications • Compatible with 10/100/1000 ETHERNET • Highly flexible to use • Designed for use in an industrial environment • For the optimization of older sub-nets • Maximum cost-effectiveness Requirements and Solutions Up to now,...

Hirschmann. Simply a good Connection. “The information/details in this publication merely contain general descriptions or performance factors which, when applied in an actual situation, do not always correspond with the described form, and may be amended by way of the further development of products. The desired performance factors shall only be deemed binding if these are expressly agreed on conclusion of the contract. Please note that some characteristics of the recommended accessory parts may differ from the appropriate product. This might limit the possible operating conditions for the...
