HIOKI E.E. CORPORATION
HIOKI TEMPERATURE HiTESTER Series

HIOKI TEMPERATURE HiTESTER Series

Product catalog summary

Overview: The Temperature HiTESTER series, including models 3441, 3442, 3446-01, and 3447-01, are designed for precise temperature measurement and management across various applications, including HACCP and energy conservation. These devices support different sensor types and offer features like waterproof construction and data recording capabilities.

Specifications:

3447-01: Designed for HACCP temperature management, it supports thermocouple (Type K) sensors with a range of -100°C to 1000°C and platinum temperature-measurement resistors (Pt 100) from -100°C to 300°C. It features waterproof construction (IP67) and 2-channel measurement.
3446-01: Suitable for energy conservation applications, it supports Type K thermocouples with a range of -100°C to 1300°C and offers max/min temperature recording.
3441/3442: Basic models with water-resistant construction (3442 only) and support for Type K thermocouples with a range of -100°C to 1300°C.

Recording and Data Management:

Manual and interval recording modes are available, with capacities of up to 28,800 data items for interval recording.
Data can be transferred to a computer via RS-232C connection for further analysis and storage.
Optional Printer 9670 can be used for printing recorded data.

Environmental and Power Specifications:

Operating temperature range: 0 to 40°C, storage range: -10 to 50°C.
Power supply: 4 AAA batteries, with a continuous use time of up to 15 days without power save mode.

Accessories and Options:

A variety of temperature probes are available, including sheath and surface types, to suit different measurement needs.
Optional RS-232C Package 9674 for PC communications and data management.

Applications: These instruments are ideal for food safety management, energy conservation, and general temperature monitoring in various environments, including damp conditions.

Catalog excerpts

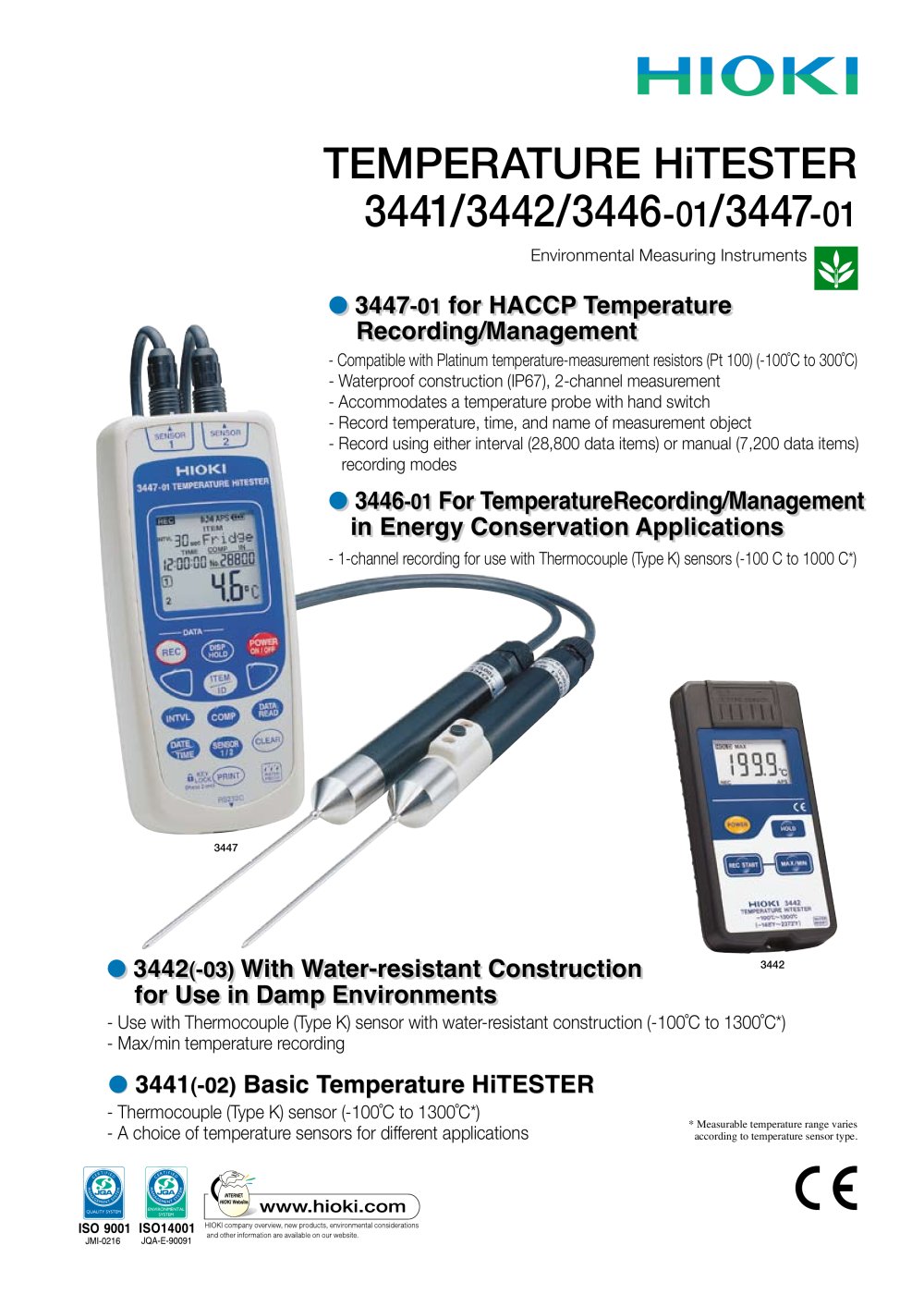

TEMPERATURE HiTESTER Environmental Measuring Instruments 3441/3442/3446-01/3447-01 3447 3442 * Measurable temperature range varies according to temperature sensor type. - 1-channel recording for use with Thermocouple (Type K) sensors (-100 C to 1000 C*) - Compatible with Platinum temperature-measurement resistors (Pt 100) (-100¢ªC to 300¢ªC) - Waterproof construction (IP67), 2-channel measurement - Accommodates a temperature probe with hand switch - Record temperature, time, and name of measurement object - Record using either interval (28,800 data items) or manual (7,200 data items) recording modes œ 3447-01 for HACCP Temperature Recording/Management œ 3446-01 For TemperatureRecording/Management in Energy Conservation Applications - Use with Thermocouple (Type K) sensor with water-resistant construction (-100¢ªC to 1300¢ªC*) - Max/min temperature recording - Thermocouple (Type K) sensor (-100¢ªC to 1300¢ªC*) - A choice of temperature sensors for different applications œ 3442(-03) With Water-resistant Construction for Use in Damp Environments œ 3441(-02) Basic Temperature HiTESTER

Open the catalog to page 1

2 ¡ 3446-01, 3447-01 Record data and memos using either manual or interval recording mode ¡ 3446-01 Measurement Specifications ¡ 3446-01 / 3447-01 Common Specifications : Temperature recording by key operation (Recording also possible by the key on the 9479 Probe. 3447-01 only) : Time, temperature, item, ID, comparator test result : Max 7,200 (for the 3447-01: 4,800 with 2-ch recording) : Measurement values recorded at a set interval : Time, temperature, item, ID, comparator test result : Max 28,800 (with the 3447, 14,400 with 2-ch recording) : OFF, 1, 2, 5, 10, 15, 20, or 30 seconds, 1, 2, 5,...

Open the catalog to page 2

3 Recording of maximum temperature and minimum temperature ¡ 3441/3442 Extended Operation, Max/Min Temperature Recording, Water-resistant Construction (3442 only) Sensor Measurement range Resolution Measurement accuracy Temperature coefficient Sampling rate Display Reference contact compensation Functions : Type K thermocouple : -100¢ªC to 1300¢ªC (-148¢ªF to 2372¢ªF) : 0.1¢ªC (100 to 199. 9¢ªC), 1¢ªC (200 to 1300¢ªC)/ 0.1¢ªF (-148¢ªF to 392¢ªF), 1¢ªF (393¢ªF to 2372¢ªF) : ±0.1% rdg. ±0.8¢ªC (from -100 to 199.9¢ªC)/ ±0.1% rdg. ±1.5¢ªF (-148¢ªF to 392¢ªF) ±0.2% rdg. ±1¢ªC (from 200 to 1300¢ªC)/±0.2%...

Open the catalog to page 3

HEAD OFFICE : 81 Koizumi, Ueda, Nagano, 386-1192, Japan TEL +81-268-28-0562 / FAX +81-268-28-0568 E-mail: [email protected] HIOKI USA CORPORATION : 6 Corporate Drive, Cranbury, NJ 08512 USA TEL +1-609-409-9109 / FAX +1-609-409-9108 E-mail: [email protected] DISTRIBUTED BY All information correct as of Sep. 25, 2008. All specifications are subject to change without notice. 3441-3447SE5-89E Printed in Japan HIOKI (Shanghai) Sales & Trading Co., Ltd. : 1608-1610 Shanghai Times Square Office, 93 Huai Hai Zhong Road, Shanghai, P.R.China POSTCODE: 200021 TEL +86-21-6391-0090/0092 FAX +86-21-6391-0360...

Open the catalog to page 4
