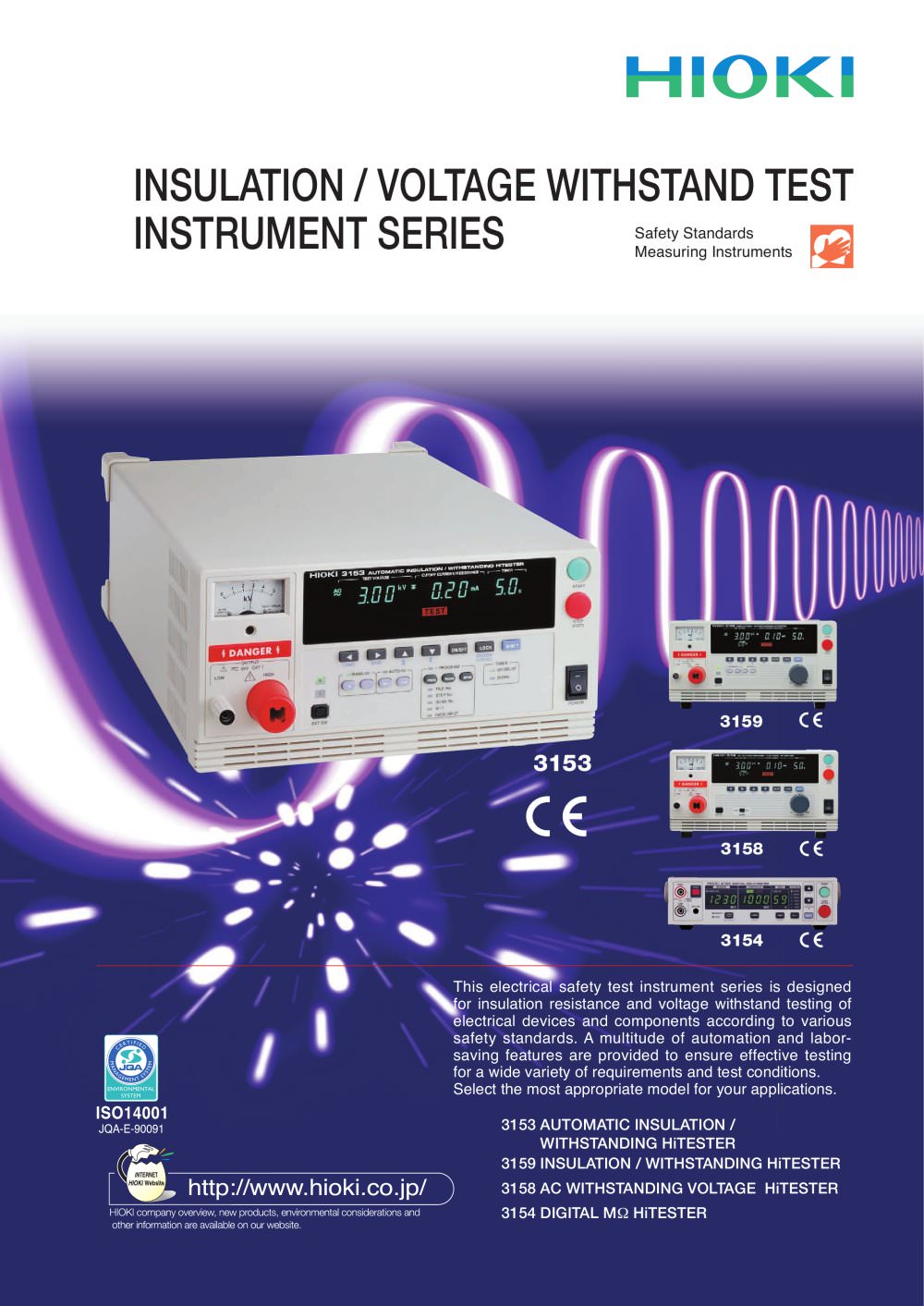

INSULATION / VOLTAGE WITHSTAND TEST INSTRUMENT SERIES Safety Standards Measuring Instruments \This electrical safety test instrument series is designed tor insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. A multitude of automation and labor- saving features are provided to ensure effective testing for a wide variety of requirements and test conditions. Select the most appropriate model for your applications. WITHSTANDING HiTESTER HIOKI company overview, new products, environmental considerations and other information are available on our website. 3158 AC WITHSTANDING VOLTAGE HiTESTER

Open the catalog to page 1

HIOKI INSULATION / VOLTAGE WITHSTAND TEST INSTRUMENT SERIES - 2

1 Model 3153 Automatic Insulation Voltage Withstand Testing Standards-Based Testing Voltage Control from a PC Full Remote Control Comparator/Timer All test parameters can be controlled by RS-232C or GP-IB, including test voltage, cut-off current, resistance threshold and timer durations. Start-stop control can be provided with the 9613 single hand remote control or 9614 twohand remote control. Includes built-in pass-fail comparator and timer functions for easy compliance testing to various safety standards such as those for Electrical Appliance Safety Regulations. Settable Ramp Up/Down...

Open the catalog to page 2

HIOKI INSULATION / VOLTAGE WITHSTAND TEST INSTRUMENT SERIES - 3

Wide Range of Functions for Various Conditions^ 1. Pass Hold Function (0: No Hold, 1: Hold) The pass state is held when it is activated.This is convenient for verifying the decision value. 2. Fail Hold Function (0: No Hold, 1: Hold) The fail state is held when it is activated.This is convenient for temporarily stopping the test process. 3. Hold State (0: No Hold, 1: Hold) This saves the state when the Stop key is pressed during a test to unconditionally end the test. 4. Momentary Out (0: Disabled, 1: Enabled) This function outputs a voltage only when the Start key is being pressed. The...

Open the catalog to page 3

HIOKI INSULATION / VOLTAGE WITHSTAND TEST INSTRUMENT SERIES - 4

3 A Full Line-up of Models to Suit Various Needs Model 3153 AUTOMATIC INSULATION / WITHSTANDING HiTESTER ■ Insulation and AC/DC continuous voltage withstand testing ■ Safety standards compliance testing ■ Stores up to 10 sets of test conditions (10 each for insulation and voltage withstand) ■ Zero-V Switching (voltage withstand testing) ■ Electrical Discharge function (DC voltage withstand, insulation testing) ■ Automated testing support ■ Interlock Protect function ■ Remote controllable EXT I/O GP-IB RS-232C Scanner Connector Voltage Withstand Testing Insulation Testing AC: 0.20 to 5.00...

Open the catalog to page 4

HIOKI INSULATION / VOLTAGE WITHSTAND TEST INSTRUMENT SERIES - 5

External control can be provided by various signals (signal lines have photocoupler isolation) Various Function Settings 1. PASS Hold function 2. FAIL Hold function 7. "START" interface command 9. Maximum Output Voltage measurement range 11. Insulation Resistance Test 12. Ramp Timer setting 14. Electrical Discharge function 15. TEST signal output 1. PASS Hold function 2. FAIL Hold function Hold function Double actions FAIL mode 9. Voltage Comparator position measurement range 11. Insulation Resistance Test 1. PASS Hold function 2. FAIL Hold function 9. Voltage Comparator position

Open the catalog to page 5

HIOKI INSULATION / VOLTAGE WITHSTAND TEST INSTRUMENT SERIES - 6

■ Voltage Withstand Testing * 1. Time vs. Output Voltage (at 23°C ambient) *2. Unloaded = 40 MQ load (instrument input impedance) *3. Plus scanner accuracy, when used. ■ Insulation Resistance Testing *1. Measurement range changes according to test voltage. *2. Plus scanner accuracy, when used.

Open the catalog to page 6

HIOKI INSULATION / VOLTAGE WITHSTAND TEST INSTRUMENT SERIES - 8

7 ■ Six test voltages from 25 to 1000V ■ Stores 10 setting states ■ Easy standards testing with comparator timer function ■ Automatic electrical discharge feature ■ Minimize instability with slow sampling ■ Record changes with analog output Model 3154 DIGITAL MΩ HiTESTER [Measurement Voltage/Range (Auto/Manual range switching)] Measurement voltage Measurement range 25V 50V ±2% rdg. ±5 dgt. ±5% rdg. 19.0 to 200.0 MΩ Unloaded voltage 250V 500V 2.000, 20.00 and 2000 MΩ 0 to 20.00 MΩ Accuracy Min. meas. resistance 100V 2.000, 20.00 and 200.0 MΩ 1000V 2.000, 20.00, 200.0 and 4000 MΩ 0 to...
