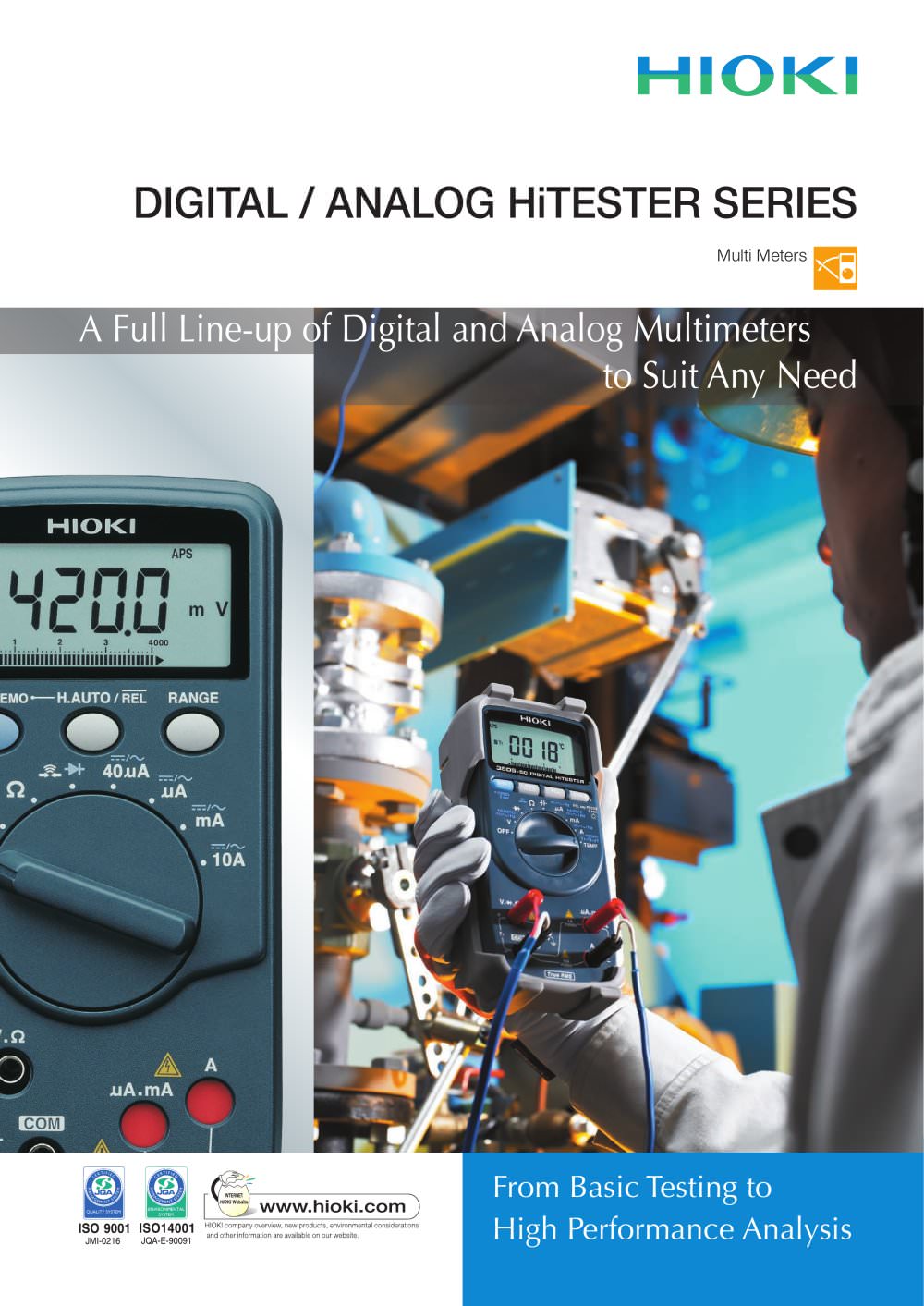

DIGITAL / ANALOG HiTESTER SERIES Multi Meters A Full Line-up of Digital and Analog Multimeters to Suit Any Need m m mBasicTestingtoHighPerformanceAnalysis www.hioki.com ) ISO 9001 ISO14001 H|0KI companyoverview, newproducts, environmental considrations ,.____ . and other information are available on our website. J M1-0216 JQA-E-90091

Open the catalog to page 1

MEMORY HiLOGGER LR8400-20, LR8401-20, LR8402-20 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.25pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:13.20pt "Arial", sans-serif; } .font6 { font:19.00pt "Arial", sans-serif; } .font7 { font:21.00pt "Arial", sans-serif; } .font8 { font:8.00pt "Franklin Gothic Medium", sans-serif; } .font9 { font:12.00pt "Lucida Sans Unicode", sans-serif; } .font10...

Open the catalog to page 2

Slection guide (Pocket size DMM) ' ' 3244-60 I 3245-60 I 3246-60 Analog Multimeters 3030-10 3008 Basic type Use for industrial power lines DROP PROOF DROP PROOF Basic Sp镩cifications AC measurement method Mean Mean Mean Maximum display count 4199 4199 4199 Display backlight function Sleeve attached CAT IV 300V 300V CAT III 300V 600V 600V SAFETY HiTESTER 3258 No sleeve attached CAT II 600V 600V 600V Function & Rang DC Voltage 419.9 mV to 500 V 419.9 mV to 600 V 419.9 mV to 600 V AC Voltage 4.199 V to 500 V 4.199 V to 600 V 4.199 V to 600 V Resistance 419.9 W to 41.99MW 419.9W to 41.99MW...

Open the catalog to page 3

Multi-function DMM SERIES DIGITAL HiTESTER 3801-50 3802-50 High-precision, high-resolution, and /S multi-functional handy DMMs 1 Dual display shows diffթrent two parameters simultaneously Useful backlight function for use in dark locations. ՕRecord maximum, minimum and average values into the internai memory USB communication function for PC measurement (optional) ՕAC+DC measurement mode / puise output function (3801 -50 only) Main Diffrences 3801-50 3802-50 Best DC Accuracy ±0.025 %rdg. ±5dgt. ±0.03 %rdg. ±5dgt. AC+DC 镗 Frequency counter ՗ Pulse output ՗ ThieRMSl iUSBuf OPTION 3801-50...

Open the catalog to page 4

ulti-function DMM SERIES DIGITAL HiTESTER High-precision, high-resolution, and multi-functional handy DMMs 3805-50 Record maximum / minimum / average value Relative value display ՕSimple performance and low cost, Basic accuracy ±0.09 % PC communication via USB (using optional accessories) ՕFor Power line distortion check (Harmonic distortion % display) Temperature scanning function (T1, T2, T1-T2) Temperature Thermocouple Type Range Accuracy K -40 to 1372°C (-40 to 2502°F) ±0.3%rdg. ±3°C (±0.3%rdg. ±6°F) J -40 to 1200°C (-40 to 2192°F) Accuracy does not include temperature probe error....

Open the catalog to page 5

'OCKET SIZE DMM SERIES CARD HiTESTER 3244-60 Compact! Palm size body, Less than 1cm thin! Better contact test leads with 15mm gold-plated tip pin ՕOnly 9.5 mm(0.37 in) thick and 60 g(2.1 oz) in weight Full auto-ranging function and automatic power saving function ՕOverload protection to 500 V at resistance or continuity functions Function Range Best Accuracy DC Voltage 420.0 mV/ 4.200 V/ 42.00 V/ 420.0 V/ 500 V ±0.7 %rdg. ±4dgt. AC Voltage 4.200 V/ 42.00 V/ 420.0 V/ 500 V ±2.3 %rdg. ±8dgt. Resistance 420.0 W/ 4.200 kW/ 42.00 kW/ 420.0 kW/ 4.200 MW/ 42.00 MW ±2.0 %rdg. ±4dgt. Continuity...

Open the catalog to page 7

Analog Multimeters and Voltage Meters DC Voltage range 0.3 V (16.7 k-ohm/V), 3/12/30/120/300/600 V (20 k-ohm/V) Accuracy: ±2.5 % f.s. AC Voltage range 12 V (9 k-ohm/V) Accuracy: ±4 % f.s. 30/120/300/600 V (9 k-ohm/V) Accuracy: ±2.5 % f.s. Average rectifier effective value Resistance range 0 to 3 k-ohm ( center scale 30 ohm), R x 1, R x 10, R x 100, R x 1 k ±3 % of scale length DC Current range 60 uA/30 m/300 mA (300 mV internai voltage drop) Accuracy: ±3 % f.s. Other functions Battery check: 0.9 to 1.8 V, load resistance 10 ohm Safety considrations Complies with EN61010 Installation...
