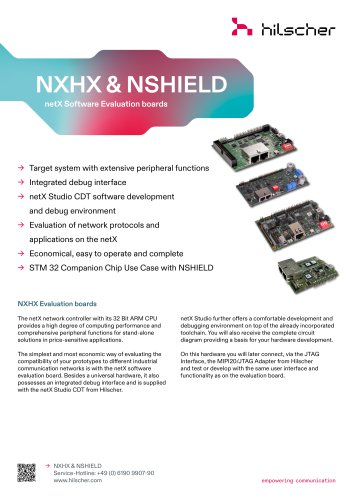

NXHX & NSHIELD netX Software Evaluation boards → Target system with extensive peripheral functions → Integrated debug interface → netX Studio CDT software development and debug environment → Evaluation of network protocols and applications on the netX → Economical, easy to operate and complete → STM 32 Companion Chip Use Case with NSHIELD NXHX Evaluation boards The netX network controller with its 32 Bit ARM CPU provides a high degree of computing performance and comprehensive peripheral functions for stand-alone solutions in price-sensitive applications. netX Studio further offers a comfortable development and debugging environment on top of the already incorporated toolchain. You will also receive the complete circuit diagram providing a basis for your hardware development. The simplest and most economic way of evaluating the compatibility of your prototypes to different industrial communication networks is with the netX software evaluation board. Besides a universal hardware, it also possesses an integrated debug interface and is supplied with the netX Studio CDT from Hilscher. On this hardware you will later connect, via the JTAG Interface, the MIPI20/JTAG Adapter from Hilscher and test or develop with the same user interface and functionality as on the evaluation board. → N XHX & NSHIELD Service-Hotline: +49 (0) 6190 9907-90 www.h

NXHX & NSHIELD Technical Data Technical Data netX 90 Starterkit easy access to networks and apps netMOTION Evaluation board quickly to the networked drive solution Operating temperature Operating voltage netX Evaluation board for 10 Mbps Single-Pair-Ethernet Solutions netX 90 Expansion board for STM 32 Nucleo 64/144 Operating temperature Operating voltage Network Controller Network Controller External Memory 4 Mbyte Quad SPI Flash 8 Mbyte SDRAM, 4 Mbyte Quad SPI Flash External Memory 8 Mbyte SDRAM, 4 Mbyte Quad SPI Flash 8 Mbyte SDRAM, 8 Mbyte Quad SPI Flash Host Interface, ADC, CAN, ENDCODER,...

Product Overview Accessories Fieldbus Interface Product Overview - Evaluation boards NXHX 90-JTAG 7833.000 | netX 90 Software Evaluation board with JTAG NXHX 90-MC 7833.100 | netX 90 Motor Control Demoboard NXEB 90-SPE 7832.300 | netX 90 Evaluation board with 10BASE-T1L PHY NSHIELD 90-RE 7836.000, netX 90 Expansion board for STM Nucleo 64/144 Product Overview - Accessories Host Interface NXHX NXHX-IO 7703.010 | 16 Digital Inputs (DIL Switch) & Outputs (LED) NXHX-SDR 7703.020 | 32-bit SDRAM with 64 MBit 90-JTAG 90-MC 90-SPE NSHIELDX X X XX X X X NXHX-SDRSPM 7703.080 | 16-bit SDRAM with 64 MBit;...
