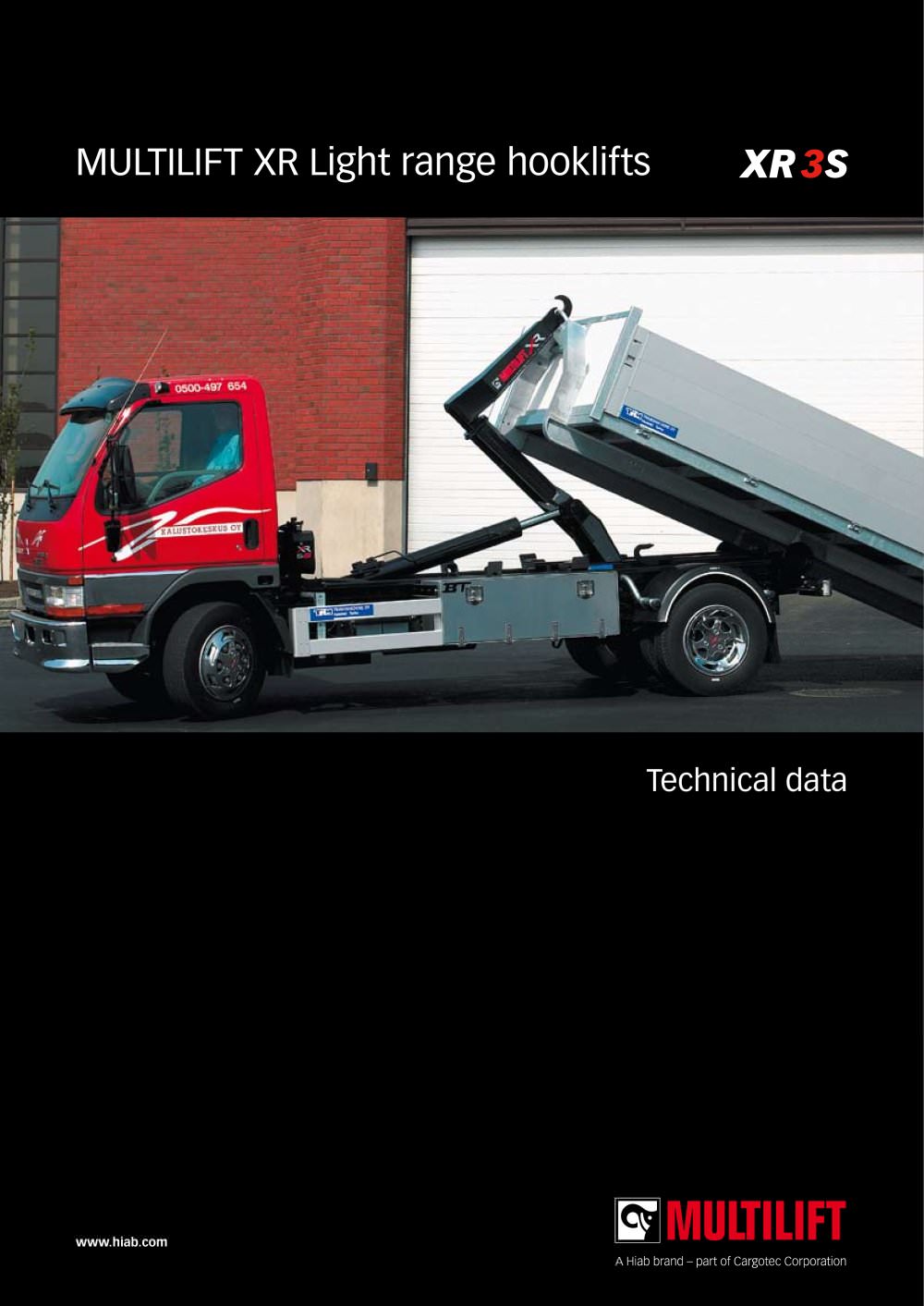

Introduction
The MULTILIFT XR Light range hooklifts are designed to enhance the functionality of 4.5-tonne light commercial vehicles. The XR 3S model allows for transporting machinery, lifting heavy loads, and tipping materials, offering capabilities typically found in heavier trucks.

Functionality and Versatility
The XR 3S model provides full functionality in a compact package, enabling loading at ground level, lifting onto the truck, and tipping goods. It supports multiple tasks with special bodies, improving efficiency and profitability. The design utilizes advanced 3D-CAD methods and modern production technology, resulting in a stronger structure with minimal welding. This design offers a low weight/high strength ratio, allowing for larger payloads and enhanced vehicle versatility.

Technical Specifications

• Type: XR 3S
• Capacity: 3,000 kg
• GVW of the Vehicle: 4.5 tonnes
• Container Length (internal): 3.0 - 4.0 meters
• G-Length: 2700 - 3200 mm
• Equipment Weight: 400 - 440 kg
• Tipping Angle: 47 - 49 degrees
• Hook Height: 900 / 930 mm
• Body Level: 135 mm
• Max. Operating Pressure: 25 MPa
• Recommended Oil Flow: 15-20 l/min

Safety Features
Safety is a priority in the XR-series, featuring load-holding valves on cylinders and a tipping lock mechanism. The series complies with the EU's Directive on the Safety of Machinery.

Disclaimer
Modifications may occur, and illustrations may not always depict the standard version of the equipment.
