Heyco® Zinc Die-Cast Box Connectors Box Spacer - 1

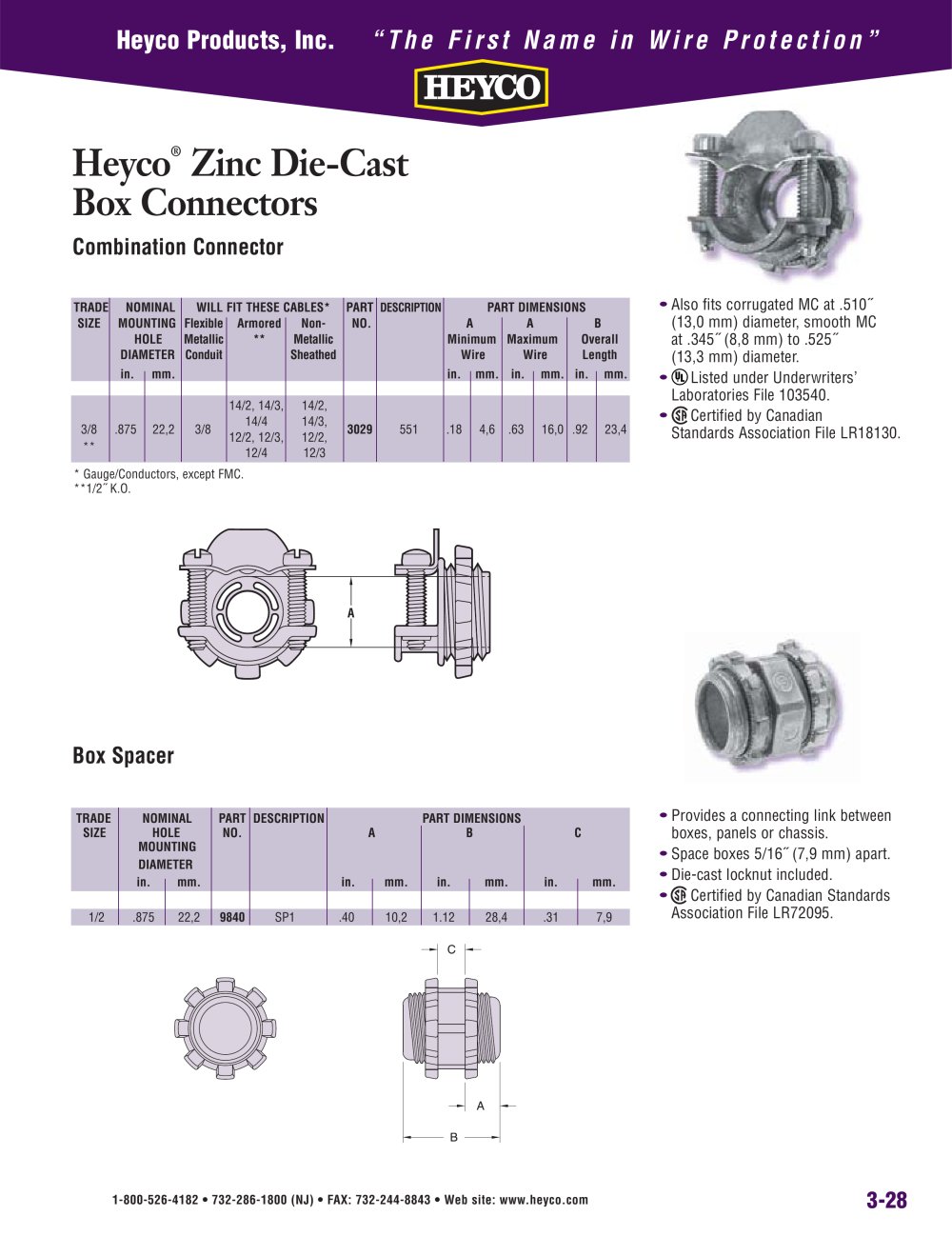

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 3-28 TRADE NOMINAL WILL FIT THESE CABLES* PART DESCRIPTION PART DIMENSIONS SIZE MOUNTING Flexible Armored Non- NO. A A B HOLE Metallic ** Metallic Minimum Maximum Overall DIAMETER Conduit Sheathed Wire Wire Length in. mm. in. mm. in. mm. in. mm. 14/2, 14/3, 14/2, 14/4 14/3, 3/8 .875 22,2 3/8 12/2, 12/3, 12/2, 3029 551 .18 4,6 .63 16,0 .92 23,4 ** 12/4 12/3 * Gauge/Conductors, except FMC. **1/2½ K.O. Heyco® Zinc Die-Cast Box Connectors Combination Connector Box Spacer TRADE NOMINAL PART DESCRIPTION PART DIMENSIONS SIZE HOLE NO. A B C MOUNTING DIAMETER in. mm. in. mm. in. mm. in. mm. 1/2 .875 22,2 9840 SP1 .40 10,2 1.12 28,4 .31 7,9 • Provides a connecting link between boxes, panels or chassis. • Space boxes 5/16½ (7,9 mm) apart. • Die-cast locknut included. • Certified by Canadian Standards Association File LR72095. • Also fits corrugated MC at .510½ (13,0 mm) diameter, smooth MC at .345½ (8,8 mm) to .525½ (13,3 mm) diameter. • Listed under Underwriters’ Laboratories File 103540. • Certified by Canadian Standards Association File LR18130. A
