Heyco® -Tite Liquid Tight Cordgrips Straight-Thru, PG Hubs

Heyco® -Tite Liquid Tight Cordgrips Straight-Thru, PG Hubs
1Pages

Catalog excerpts

Heyco® -Tite Liquid Tight Cordgrips Straight-Thru, PG Hubs - 1

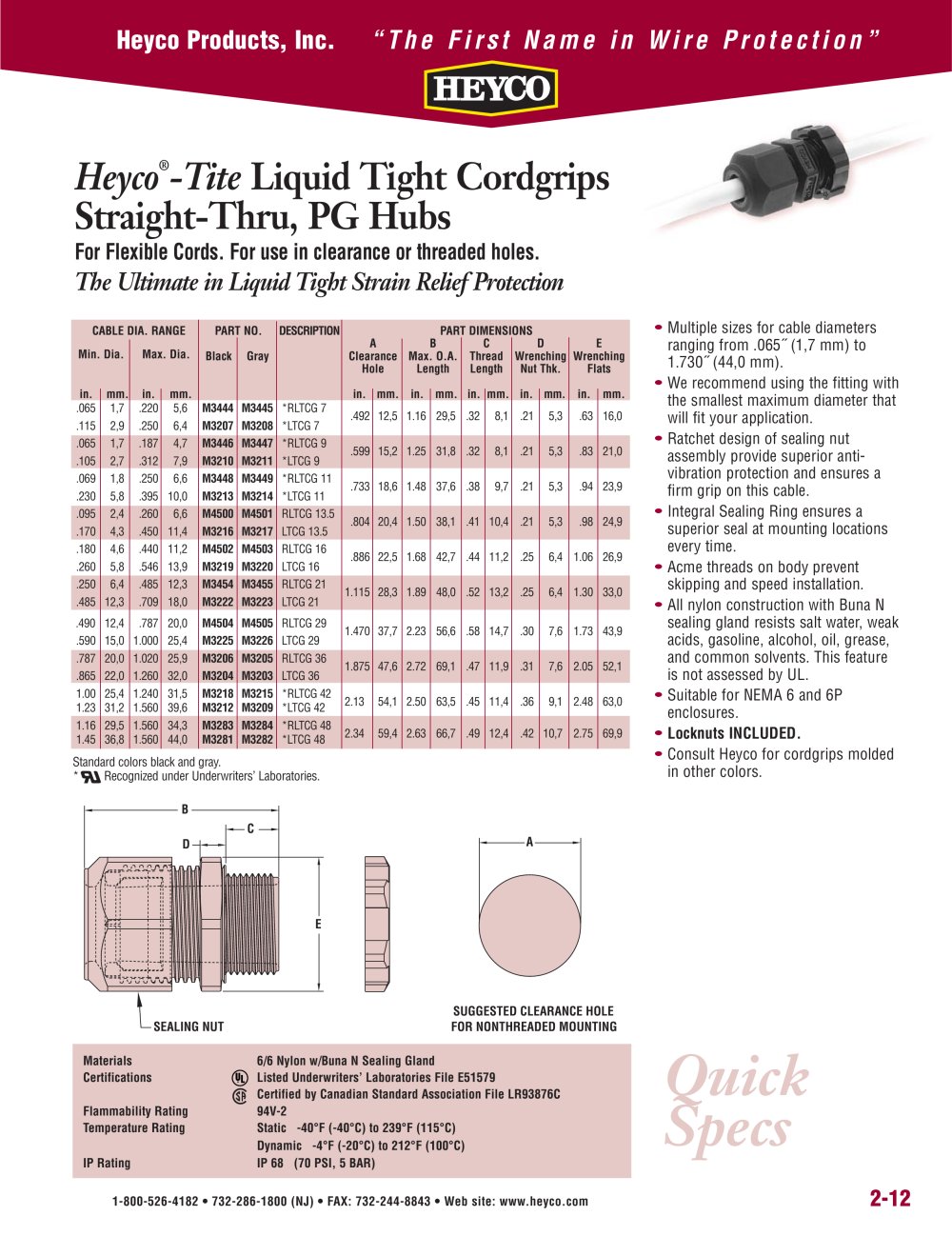

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-12 Quick Specs Heyco®-Tite Liquid Tight Cordgrips Straight-Thru, PG Hubs For Flexible Cords. For use in clearance or threaded holes. The Ultimate in Liquid Tight Strain Relief Protection SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING D A C B E SEALING NUT Materials 6/6 Nylon w/Buna N Sealing Gland Certifications Listed Underwriters’ Laboratories File E51579 Certified by Canadian Standard Association File LR93876C Flammability Rating 94V-2 Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) Standard colors black and gray. * Recognized under Underwriters’ Laboratories. CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E Min. Dia. Max. Dia. Black Gray Clearance Max. O.A. Thread Wrenching Wrenching Hole Length Length Nut Thk. Flats in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .065 1,7 .220 5,6 M3444 M3445 *RLTCG 7 .492 12,5 1.16 29,5 .32 8,1 .21 5,3 .63 16,0 .115 2,9 .250 6,4 M3207 M3208 *LTCG 7 .065 1,7 .187 4,7 M3446 M3447 *RLTCG 9 .599 15,2 1.25 31,8 .32 8,1 .21 5,3 .83 21,0 .105 2,7 .312 7,9 M3210 M3211 *LTCG 9 .069 1,8 .250 6,6 M3448 M3449 *RLTCG 11 .733 18,6 1.48 37,6 .38 9,7 .21 5,3 .94 23,9 .230 5,8 .395 10,0 M3213 M3214 *LTCG 11 .095 2,4 .260 6,6 M4500 M4501 RLTCG 13.5 .804 20,4 1.50 38,1 .41 10,4 .21 5,3 .98 24,9 .170 4,3 .450 11,4 M3216 M3217 LTCG 13.5 .180 4,6 .440 11,2 M4502 M4503 RLTCG 16 .886 22,5 1.68 42,7 .44 11,2 .25 6,4 1.06 26,9 .260 5,8 .546 13,9 M3219 M3220 LTCG 16 .250 6,4 .485 12,3 M3454 M3455 RLTCG 21 1.115 28,3 1.89 48,0 .52 13,2 .25 6,4 1.30 33,0 .485 12,3 .709 18,0 M3222 M3223 LTCG 21 .490 12,4 .787 20,0 M4504 M4505 RLTCG 29 1.470 37,7 2.23 56,6 .58 14,7 .30 7,6 1.73 43,9 .590 15,0 1.000 25,4 M3225 M3226 LTCG 29 .787 20,0 1.020 25,9 M3206 M3205 RLTCG 36 1.875 47,6 2.72 69,1 .47 11,9 .31 7,6 2.05 52,1 .865 22,0 1.260 32,0 M3204 M3203 LTCG 36 1.00 25,4 1.240 31,5 M3218 M3215 *RLTCG 42 1.23 31,2 1.560 39,6 M3212 M3209 *LTCG 42 2.13 54,1 2.50 63,5 .45 11,4 .36 9,1 2.48 63,0 1.16 29,5 1.560 34,3 M3283 M3284 *RLTCG 48 1.45 36,8 1.560 44,0 M3281 M3282 *LTCG 48 2.34 59,4 2.63 66,7 .49 12,4 .42 10,7 2.75 69,9 • Multiple sizes for cable diameters ranging from .065½ (1,7 mm) to 1.730½ (44,0 mm). • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Ratchet design of sealing nut assembly provide superior antivibration protection and ensures a firm grip on this cable. • Integral Sealing Ring ensures a superior seal at mounting locations every time. • Acme threads on body prevent skipping and speed installation. • All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Suitable for NEMA 6 and 6P enclosures. • Locknuts INCLUDED. • Consult Heyco for cordgrips molded in other colors.
