Heyco® -Tite Liquid Tight Cordgrips Straight-Thru, NPT Hubs

Product catalog summary

Overview: Heyco Products, Inc. offers Heyco®-Tite Liquid Tight Cordgrips designed for flexible cords, providing superior liquid tight strain relief protection. These cordgrips are suitable for use in clearance or threaded holes and are ideal for NEMA 6P enclosures.

Material and Certifications: The cordgrips are made from 6/6 Nylon with a Buna N Sealing Gland. They are listed under Underwriters’ Laboratories File E51579 and certified by the Canadian Standard Association File LR93876C. The flammability rating is 94V-2, with an option for V0 material upon consultation.

Temperature and IP Rating: The static temperature rating ranges from -40°F (-40°C) to 239°F (115°C), while the dynamic rating is from -4°F (-20°C) to 212°F (100°C). The cordgrips have an IP68 rating, ensuring protection against dust and water at 70 PSI (5 BAR).

Key Features:

Available in multiple sizes for cable diameters ranging from 0.065 inches (1.7 mm) to 1.730 inches (44.0 mm).
Features a ratchet design of the sealing nut assembly for anti-vibration protection and a firm grip on the cable.
Includes an integral sealing ring for a superior seal at the mounting location.
Acme threads on the body prevent skipping and speed up installation.
Resistant to salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.

Specifications: The document provides detailed specifications for various part numbers, including cable diameter range, part dimensions, and descriptions. Standard colors are black and gray, with other colors available upon consultation.

Additional Information: Locknuts are not included, and specifications for nylon locknuts or separate orders can be found on page 2-21. The document also notes that the resistance to certain substances is not assessed by UL.

Catalog excerpts

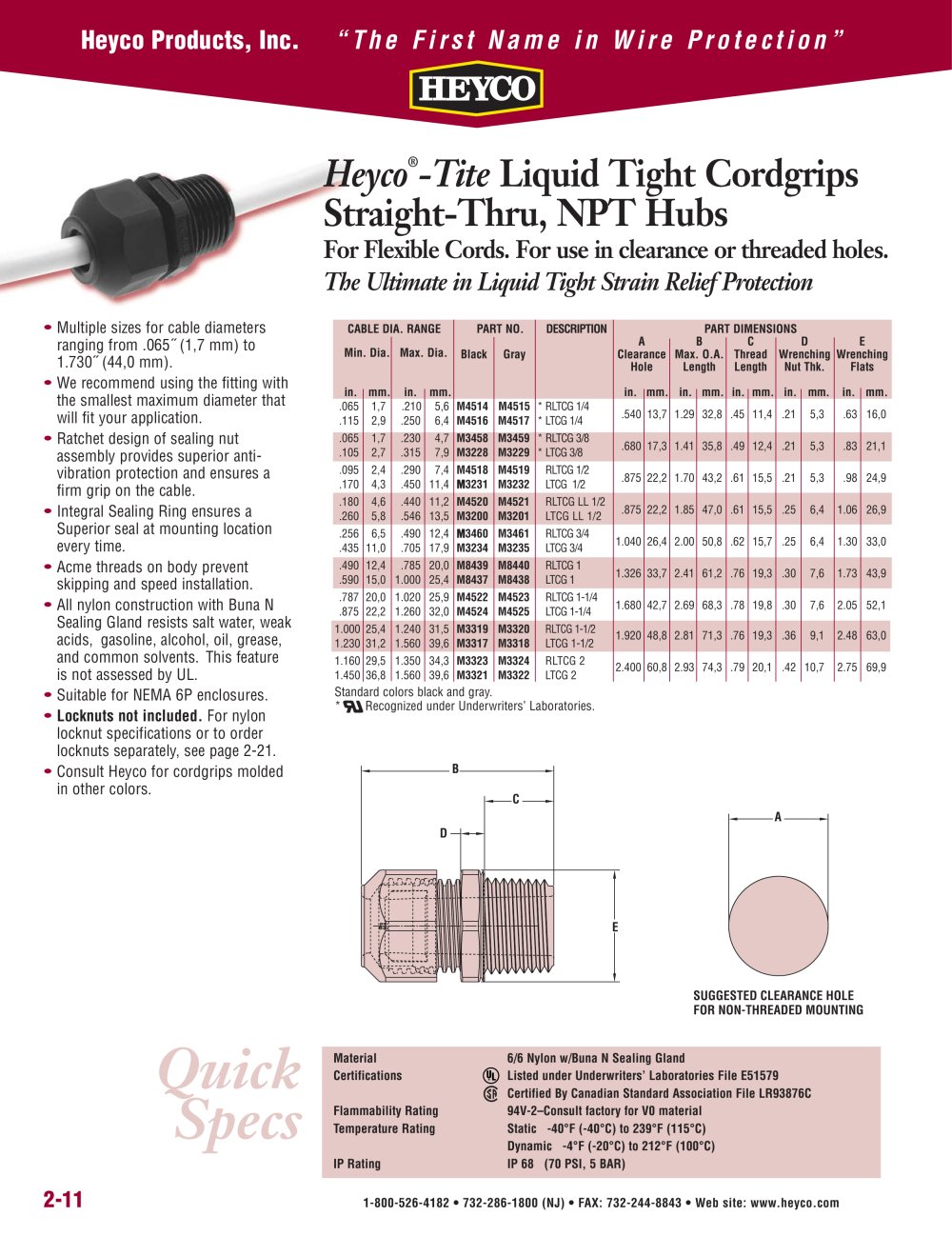

Heyco® -Tite Liquid Tight Cordgrips Straight-Thru, NPT Hubs-1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco®-Tite Liquid Tight Cordgrips Straight-Thru, NPT Hubs For Flexible Cords. For use in clearance or threaded holes. The Ultimate in Liquid Tight Strain Relief Protection 2-11 SUGGESTED CLEARANCE HOLE FOR NON-THREADED MOUNTING D C B A E Material 6/6 Nylon w/Buna N Sealing Gland Certifications Listed under Underwriters’ Laboratories File E51579 Certified By Canadian Standard Association File LR93876C Flammability Rating 94V-2–Consult factory for V0 material Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) Quick Specs • Multiple sizes for cable diameters ranging from .065½ (1,7 mm) to 1.730½ (44,0 mm). • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Ratchet design of sealing nut assembly provides superior antivibration protection and ensures a firm grip on the cable. • Integral Sealing Ring ensures a Superior seal at mounting location every time. • Acme threads on body prevent skipping and speed installation. • All nylon construction with Buna N Sealing Gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Suitable for NEMA 6P enclosures. • Locknuts not included. For nylon locknut specifications or to order locknuts separately, see page 2-21. • Consult Heyco for cordgrips molded in other colors. CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E Min. Dia. Max. Dia. Black Gray Clearance Max. O.A. Thread Wrenching Wrenching Hole Length Length Nut Thk. Flats in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .065 1,7 .210 5,6 M4514 M4515 * RLTCG 1/4 .115 2,9 .250 6,4 M4516 M4517 * LTCG 1/4 .540 13,7 1.29 32,8 .45 11,4 .21 5,3 .63 16,0 .065 1,7 .230 4,7 M3458 M3459 * RLTCG 3/8 .105 2,7 .315 7,9 M3228 M3229 * LTCG 3/8 .680 17,3 1.41 35,8 .49 12,4 .21 5,3 .83 21,1 .095 2,4 .290 7,4 M4518 M4519 RLTCG 1/2 .170 4,3 .450 11,4 M3231 M3232 LTCG 1/2 .875 22,2 1.70 43,2 .61 15,5 .21 5,3 .98 24,9 .180 4,6 .440 11,2 M4520 M4521 RLTCG LL 1/2 .260 5,8 .546 13,5 M3200 M3201 LTCG LL 1/2 .875 22,2 1.85 47,0 .61 15,5 .25 6,4 1.06 26,9 .256 6,5 .490 12,4 M3460 M3461 RLTCG 3/4 .435 11,0 .705 17,9 M3234 M3235 LTCG 3/4 1.040 26,4 2.00 50,8 .62 15,7 .25 6,4 1.30 33,0 .490 12,4 .785 20,0 M8439 M8440 RLTCG 1 .590 15,0 1.000 25,4 M8437 M8438 LTCG 1 1.326 33,7 2.41 61,2 .76 19,3 .30 7,6 1.73 43,9 .787 20,0 1.020 25,9 M4522 M4523 RLTCG 1-1/4 .875 22,2 1.260 32,0 M4524 M4525 LTCG 1-1/4 1.680 42,7 2.69 68,3 .78 19,8 .30 7,6 2.05 52,1 1.000 25,4 1.240 31,5 M3319 M3320 RLTCG 1-1/2 1.230 31,2 1.560 39,6 M3317 M3318 LTCG 1-1/2 1.920 48,8 2.81 71,3 .76 19,3 .36 9,1 2.48 63,0 1.160 29,5 1.350 34,3 M3323 M3324 RLTCG 2 1.450 36,8 1.560 39,6 M3321 M3322 LTCG 2 2.400 60,8 2.93 74,3 .79 20,1 .42 10,7 2.75 69,9 Standard colors black and gray. * Recognized under Underwriters’ Laboratories.
