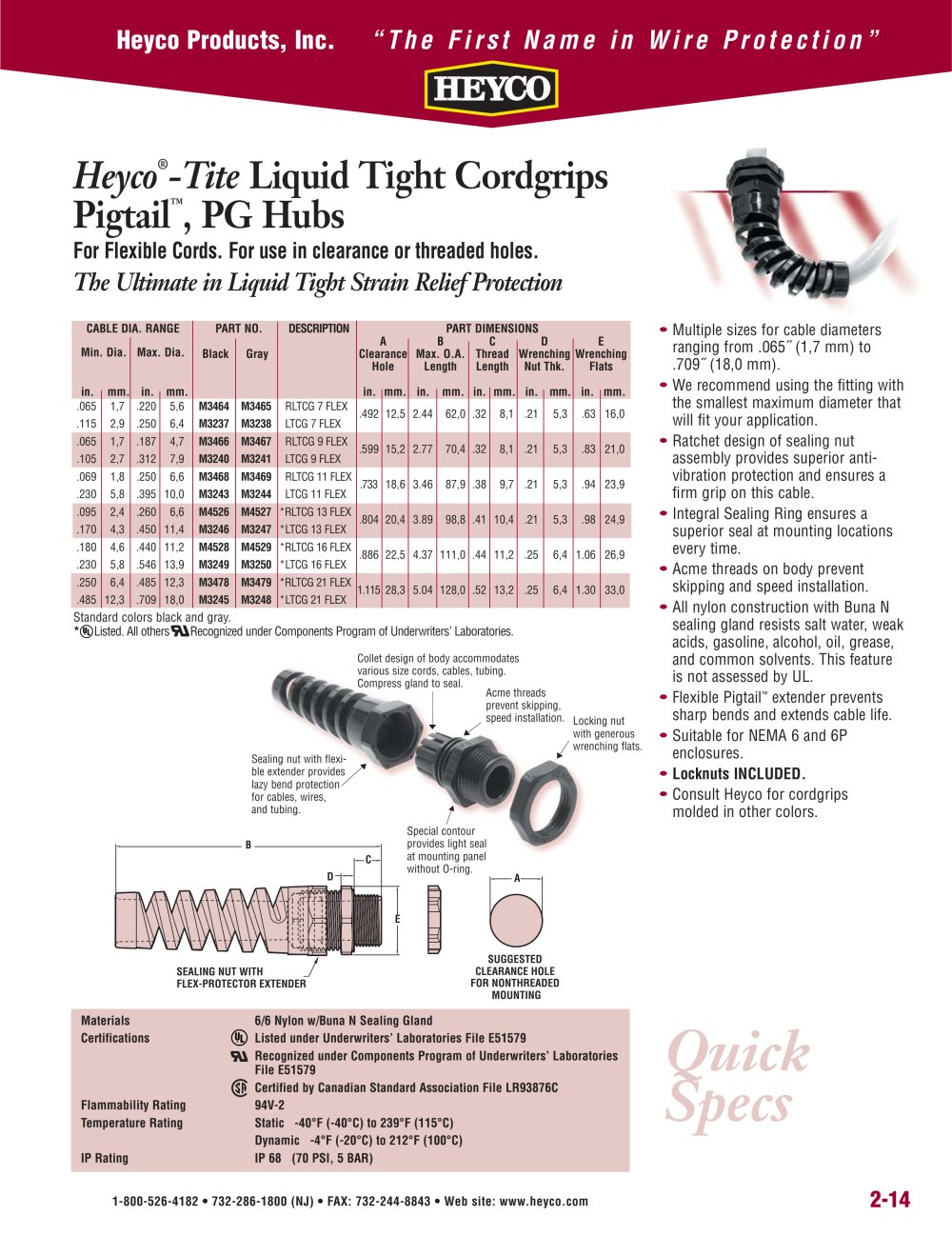

Heyco® -Tite Liquid Tight Cordgrips Pigtail™, PG Hubs - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-14 Heyco®-Tite Liquid Tight Cordgrips Pigtail™, PG Hubs For Flexible Cords. For use in clearance or threaded holes. The Ultimate in Liquid Tight Strain Relief Protection CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E Min. Dia. Max. Dia. Black Gray Clearance Max. O.A. Thread Wrenching Wrenching Hole Length Length Nut Thk. Flats in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .065 1,7 .220 5,6 M3464 M3465 RLTCG 7 FLEX .492 12,5 2.44 62,0 .32 8,1 .21 5,3 .63 16,0 .115 2,9 .250 6,4 M3237 M3238 LTCG 7 FLEX .065 1,7 .187 4,7 M3466 M3467 RLTCG 9 FLEX .599 15,2 2.77 70,4 .32 8,1 .21 5,3 .83 21,0 .105 2,7 .312 7,9 M3240 M3241 LTCG 9 FLEX .069 1,8 .250 6,6 M3468 M3469 RLTCG 11 FLEX .733 18,6 3.46 87,9 .38 9,7 .21 5,3 .94 23,9 .230 5,8 .395 10,0 M3243 M3244 LTCG 11 FLEX .095 2,4 .260 6,6 M4526 M4527 *RLTCG 13 FLEX .804 20,4 3.89 98,8 .41 10,4 .21 5,3 .98 24,9 .170 4,3 .450 11,4 M3246 M3247 *LTCG 13 FLEX .180 4,6 .440 11,2 M4528 M4529 *RLTCG 16 FLEX .886 22,5 4.37 111,0 .44 11,2 .25 6,4 1.06 26,9 .230 5,8 .546 13,9 M3249 M3250 *LTCG 16 FLEX .250 6,4 .485 12,3 M3478 M3479 *RLTCG 21 FLEX 1.115 28,3 5.04 128,0 .52 13,2 .25 6,4 1.30 33,0 .485 12,3 .709 18,0 M3245 M3248 *LTCG 21 FLEX Standard colors black and gray. * Listed. All others Recognized under Components Program of Underwriters’ Laboratories. Quick Specs Materials 6/6 Nylon w/Buna N Sealing Gland Certifications Listed under Underwriters’ Laboratories File E51579 Recognized under Components Program of Underwriters’ Laboratories File E51579 Certified by Canadian Standard Association File LR93876C Flammability Rating 94V-2 Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) • Multiple sizes for cable diameters ranging from .065½ (1,7 mm) to .709½ (18,0 mm). • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Ratchet design of sealing nut assembly provides superior antivibration protection and ensures a firm grip on this cable. • Integral Sealing Ring ensures a superior seal at mounting locations every time. • Acme threads on body prevent skipping and speed installation. • All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Flexible Pigtail™ extender prevents sharp bends and extends cable life. • Suitable for NEMA 6 and 6P enclosures. • Locknuts INCLUDED. • Consult Heyco for cordgrips molded in other colors. Special contour provides light seal at mounting panel without O-ring. Sealing nut with flexible extender provides lazy bend protection for cables, wires, and tubing. Locking nut with generous wrenching flats. Collet design of body accommodates various size cords, cables, tubing. Compress gland to seal. Acme threads prevent skipping, speed installation. SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING D A C B E SEALING NUT WITH FLEX-PROTECTOR EXTENDER
