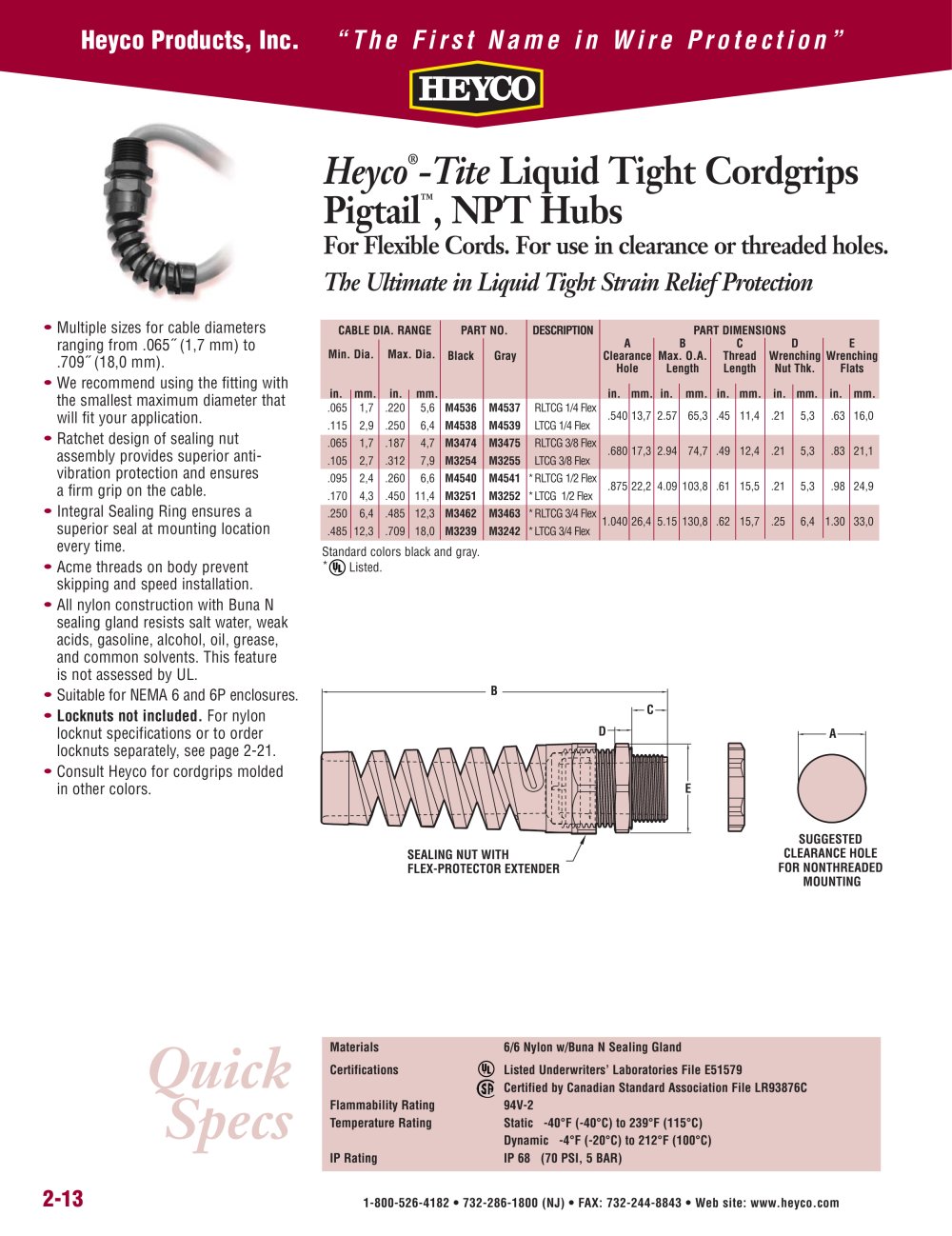

Heyco® -Tite Liquid Tight Cordgrips Pigtail™, NPT Hubs - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco®-Tite Liquid Tight Cordgrips Pigtail™, NPT Hubs For Flexible Cords. For use in clearance or threaded holes. The Ultimate in Liquid Tight Strain Relief Protection Quick Specs Materials 6/6 Nylon w/Buna N Sealing Gland Certifications Listed Underwriters’ Laboratories File E51579 Certified by Canadian Standard Association File LR93876C Flammability Rating 94V-2 Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING D A C B E SEALING NUT WITH FLEX-PROTECTOR EXTENDER 2-13 CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E Min. Dia. Max. Dia. Black Gray Clearance Max. O.A. Thread Wrenching Wrenching Hole Length Length Nut Thk. Flats in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .065 1,7 .220 5,6 M4536 M4537 RLTCG 1/4 Flex .540 13,7 2.57 65,3 .45 11,4 .21 5,3 .63 16,0 .115 2,9 .250 6,4 M4538 M4539 LTCG 1/4 Flex .065 1,7 .187 4,7 M3474 M3475 RLTCG 3/8 Flex .680 17,3 2.94 74,7 .49 12,4 .21 5,3 .83 21,1 .105 2,7 .312 7,9 M3254 M3255 LTCG 3/8 Flex .095 2,4 .260 6,6 M4540 M4541 *RLTCG 1/2 Flex .875 22,2 4.09 103,8 .61 15,5 .21 5,3 .98 24,9 .170 4,3 .450 11,4 M3251 M3252 *LTCG 1/2 Flex .250 6,4 .485 12,3 M3462 M3463 *RLTCG 3/4 Flex 1.040 26,4 5.15 130,8 .62 15,7 .25 6,4 1.30 33,0 .485 12,3 .709 18,0 M3239 M3242 *LTCG 3/4 Flex Standard colors black and gray. * Listed. • Multiple sizes for cable diameters ranging from .065½ (1,7 mm) to .709½ (18,0 mm). • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Ratchet design of sealing nut assembly provides superior antivibration protection and ensures a firm grip on the cable. • Integral Sealing Ring ensures a superior seal at mounting location every time. • Acme threads on body prevent skipping and speed installation. • All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Suitable for NEMA 6 and 6P enclosures. • Locknuts not included. For nylon locknut specifications or to order locknuts separately, see page 2-21. • Consult Heyco for cordgrips molded in other colors.
