Heyco® Thick Panel Vent Plugs

Heyco® Thick Panel Vent Plugs
1Pages

Catalog excerpts

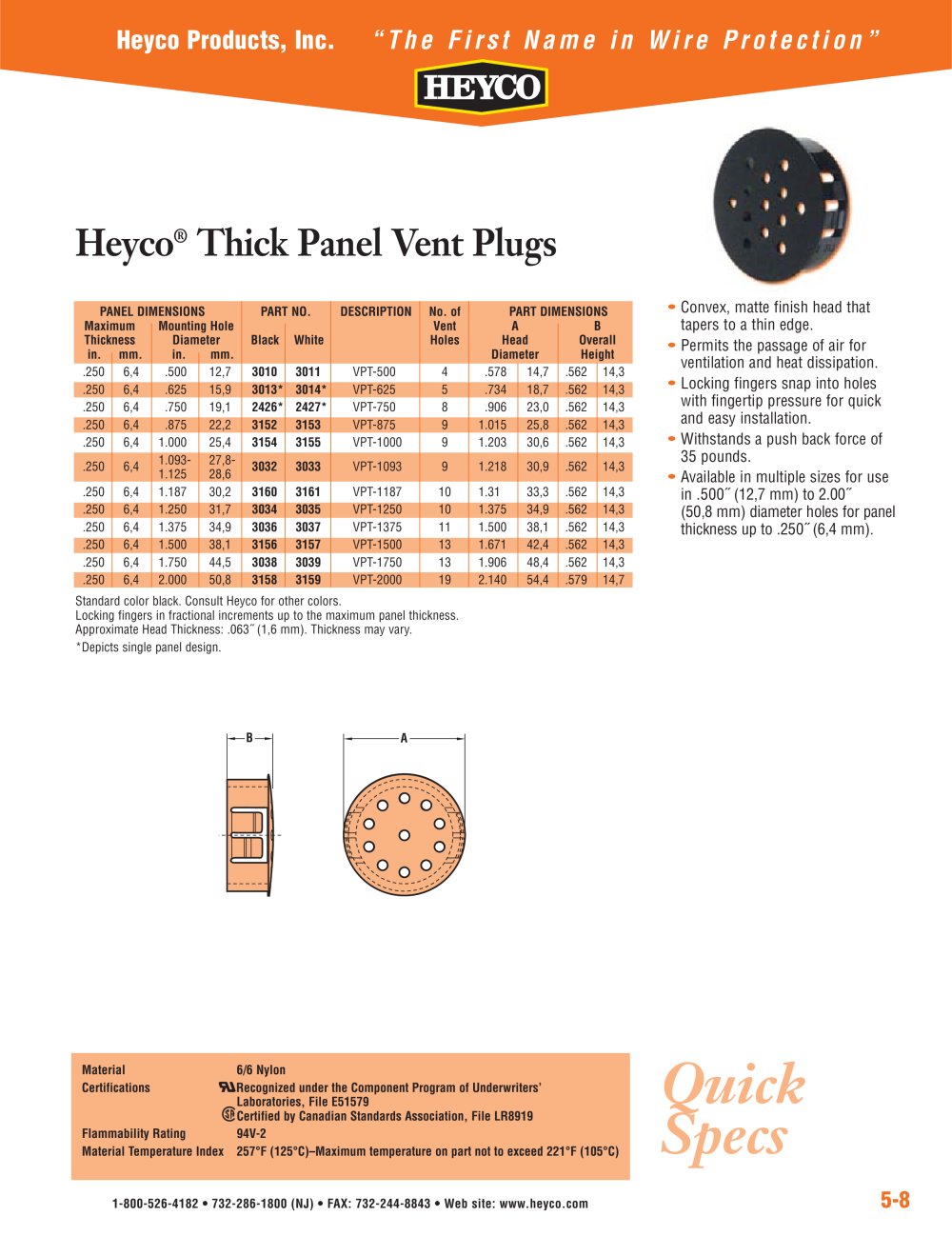

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 5-8 Quick Specs B A PANEL DIMENSIONS PART NO. DESCRIPTION No. of PART DIMENSIONS Maximum Mounting Hole Vent A B Thickness Diameter Black White Holes Head Overall in. mm. in. mm. Diameter Height .250 6,4 .500 12,7 3010 3011 VPT-500 4 .578 14,7 .562 14,3 .250 6,4 .625 15,9 3013* 3014* VPT-625 5 .734 18,7 .562 14,3 .250 6,4 .750 19,1 2426* 2427* VPT-750 8 .906 23,0 .562 14,3 .250 6,4 .875 22,2 3152 3153 VPT-875 9 1.015 25,8 .562 14,3 .250 6,4 1.000 25,4 3154 3155 VPT-1000 9 1.203 30,6 .562 14,3 .250 6,4 1.093- 27,8- 3032 3033 VPT-1093 9 1.218 30,9 .562 14,3 1.125 28,6 .250 6,4 1.187 30,2 3160 3161 VPT-1187 10 1.31 33,3 .562 14,3 .250 6,4 1.250 31,7 3034 3035 VPT-1250 10 1.375 34,9 .562 14,3 .250 6,4 1.375 34,9 3036 3037 VPT-1375 11 1.500 38,1 .562 14,3 .250 6,4 1.500 38,1 3156 3157 VPT-1500 13 1.671 42,4 .562 14,3 .250 6,4 1.750 44,5 3038 3039 VPT-1750 13 1.906 48,4 .562 14,3 .250 6,4 2.000 50,8 3158 3159 VPT-2000 19 2.140 54,4 .579 14,7 Standard color black. Consult Heyco for other colors. Locking fingers in fractional increments up to the maximum panel thickness. Approximate Head Thickness: .063½ (1,6 mm). Thickness may vary. *Depicts single panel design. Heyco® Thick Panel Vent Plugs • Convex, matte finish head that tapers to a thin edge. • Permits the passage of air for ventilation and heat dissipation. • Locking fingers snap into holes with fingertip pressure for quick and easy installation. • Withstands a push back force of 35 pounds. • Available in multiple sizes for use in .500½ (12,7 mm) to 2.00½ (50,8 mm) diameter holes for panel thickness up to .250½ (6,4 mm). Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories, File E51579 Certified by Canadian Standards Association, File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C)
