Heyco® Thick Panel Universal Bushings

Heyco® Thick Panel Universal Bushings

Product catalog summary

Specifications:
Heyco Thick Panel Universal Bushings are designed for mounting panels up to 0.25 inches thick. They convert raw-edged holes into smooth, insulated holes and feature flexible shutters to absorb vibration. The bushings have locking fingers that snap into holes with fingertip pressure and can withstand a push-back force of 35 pounds. They provide insulation and mechanical protection for electrical and telecommunications cables, tubing, hose, rope, and utility lines. Available sizes accommodate holes from 0.500 inches (12.7 mm) to 1.500 inches (38.1 mm) in diameter.

Product Dimensions:
The bushings are available in various sizes, with specific part numbers and dimensions provided for each size. The maximum mounting hole thickness is 0.250 inches (6.4 mm), with inside diameters ranging from 0.312 inches (7.6 mm) to 1.062 inches (26.9 mm), and head diameters from 0.600 inches (15.2 mm) to 1.610 inches (40.9 mm). The overall height ranges from 0.545 inches (13.8 mm) to 0.562 inches (14.3 mm).

Material and Certifications:
The bushings are made from 6/6 Nylon and are recognized under the Component Program of Underwriters’ Laboratories (File E15331) and certified by the Canadian Standards Association (File LR8919). They have a flammability rating of 94V-2 and a material temperature index of 257°F (125°C), with a maximum part temperature not to exceed 221°F (105°C).

Color Options:
The standard color is black, but other colors, including white, are available upon consultation with Heyco.

Catalog excerpts

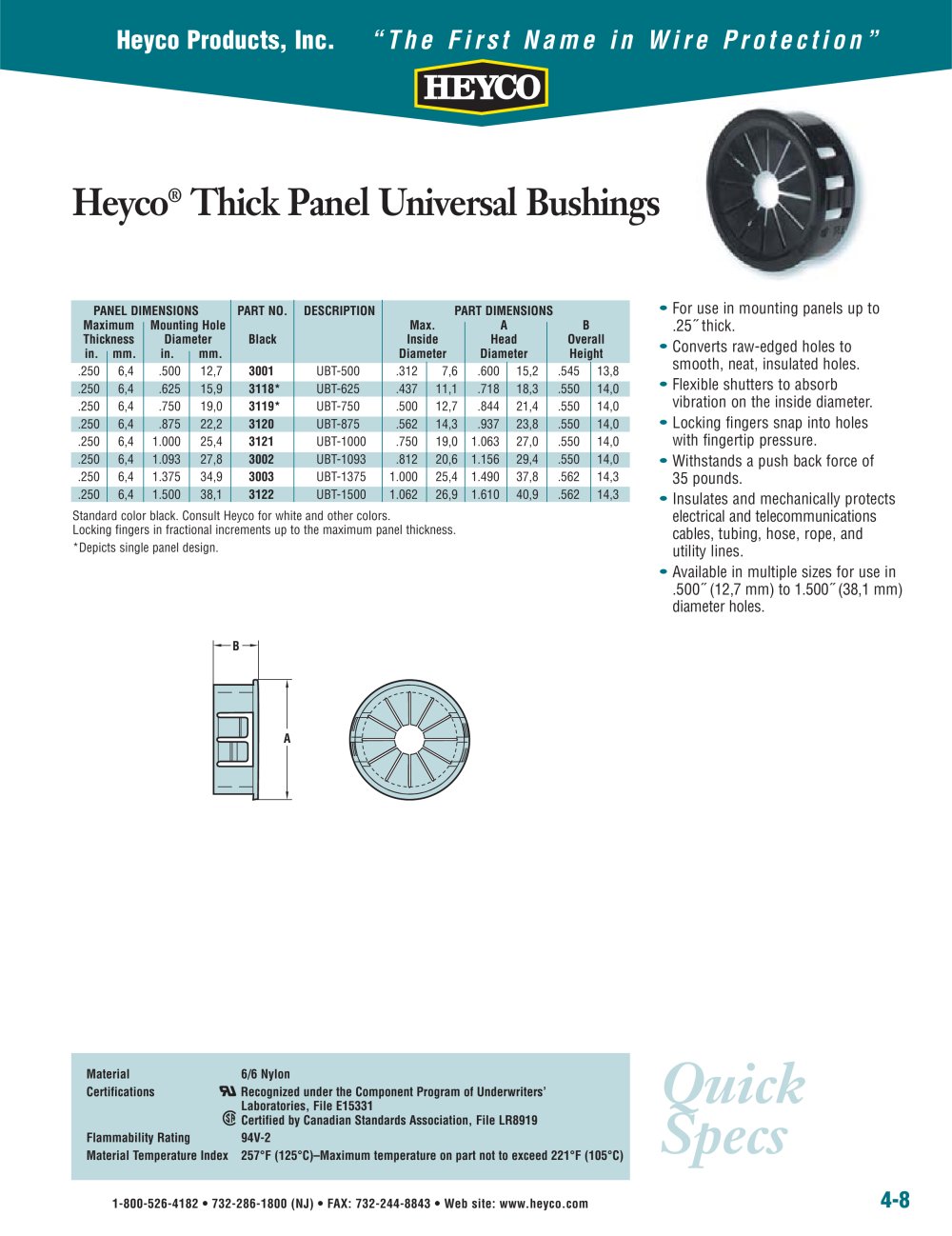

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 4-8 Quick Specs • For use in mounting panels up to .25½ thick. • Converts raw-edged holes to smooth, neat, insulated holes. • Flexible shutters to absorb vibration on the inside diameter. • Locking fingers snap into holes with fingertip pressure. • Withstands a push back force of 35 pounds. • Insulates and mechanically protects electrical and telecommunications cables, tubing, hose, rope, and utility lines. • Available in multiple sizes for use in .500½ (12,7 mm) to 1.500½ (38,1 mm) diameter holes. Heyco® Thick Panel Universal Bushings PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole Max. A B Thickness Diameter Black Inside Head Overall in. mm. in. mm. Diameter Diameter Height .250 6,4 .500 12,7 3001 UBT-500 .312 7,6 .600 15,2 .545 13,8 .250 6,4 .625 15,9 3118* UBT-625 .437 11,1 .718 18,3 .550 14,0 .250 6,4 .750 19,0 3119* UBT-750 .500 12,7 .844 21,4 .550 14,0 .250 6,4 .875 22,2 3120 UBT-875 .562 14,3 .937 23,8 .550 14,0 .250 6,4 1.000 25,4 3121 UBT-1000 .750 19,0 1.063 27,0 .550 14,0 .250 6,4 1.093 27,8 3002 UBT-1093 .812 20,6 1.156 29,4 .550 14,0 .250 6,4 1.375 34,9 3003 UBT-1375 1.000 25,4 1.490 37,8 .562 14,3 .250 6,4 1.500 38,1 3122 UBT-1500 1.062 26,9 1.610 40,9 .562 14,3 Standard color black. Consult Heyco for white and other colors. Locking fingers in fractional increments up to the maximum panel thickness. *Depicts single panel design. B A Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories, File E15331 Certified by Canadian Standards Association, File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C)
