Catalog excerpts

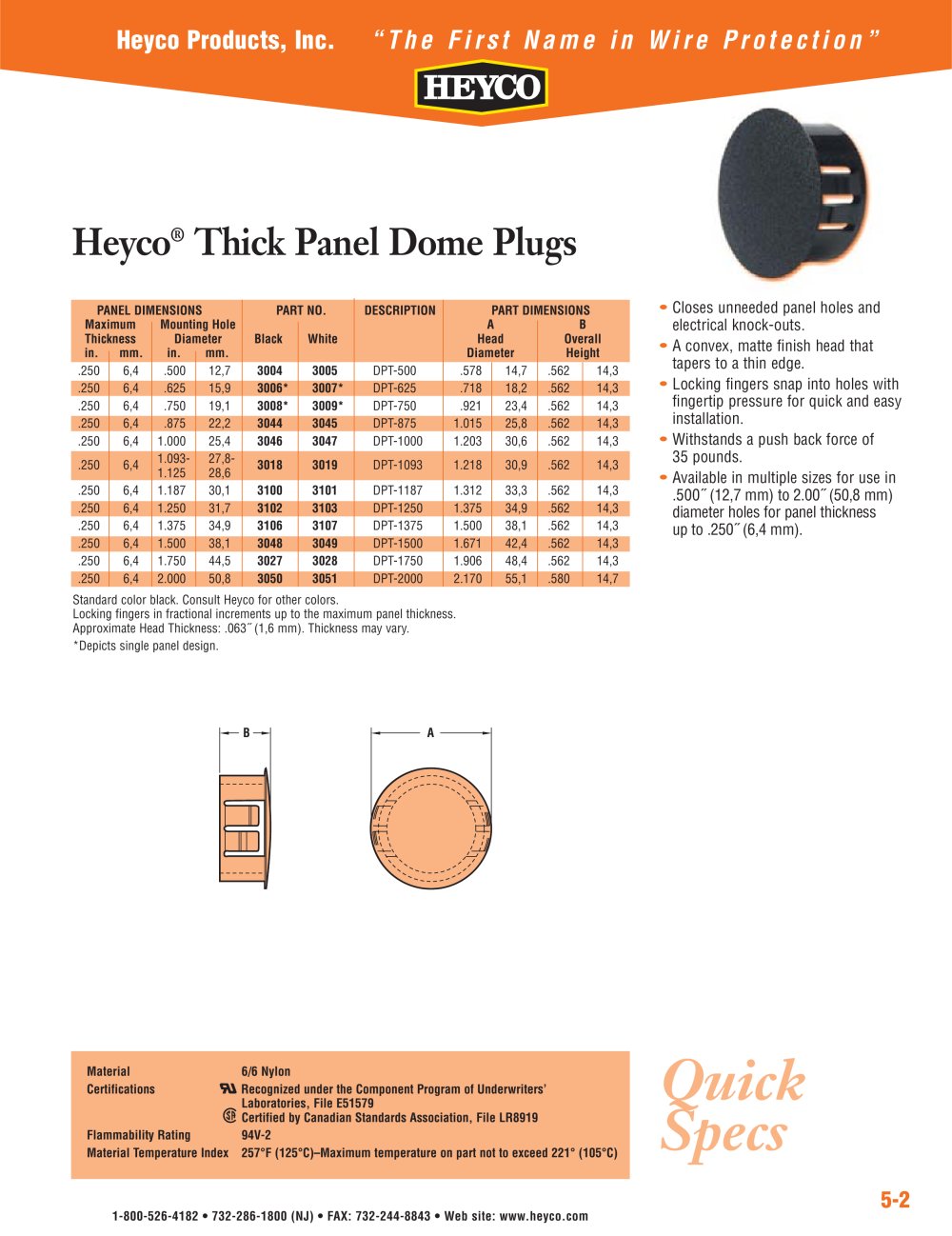

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 5-2 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Thick Panel Dome Plugs • Closes unneeded panel holes and electrical knock-outs. • A convex, matte finish head that tapers to a thin edge. • Locking fingers snap into holes with fingertip pressure for quick and easy installation. • Withstands a push back force of 35 pounds. • Available in multiple sizes for use in .500½ (12,7 mm) to 2.00½ (50,8 mm) diameter holes for panel thickness up to .250½ (6,4 mm). Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories, File E51579 Certified by Canadian Standards Association, File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221° (105°C) PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Black White Head Overall in. mm. in. mm. Diameter Height .250 6,4 .500 12,7 3004 3005 DPT-500 .578 14,7 .562 14,3 .250 6,4 .625 15,9 3006* 3007* DPT-625 .718 18,2 .562 14,3 .250 6,4 .750 19,1 3008* 3009* DPT-750 .921 23,4 .562 14,3 .250 6,4 .875 22,2 3044 3045 DPT-875 1.015 25,8 .562 14,3 .250 6,4 1.000 25,4 3046 3047 DPT-1000 1.203 30,6 .562 14,3 .250 6,4 1.093- 27,8- 3018 3019 DPT-1093 1.218 30,9 .562 14,3 1.125 28,6 .250 6,4 1.187 30,1 3100 3101 DPT-1187 1.312 33,3 .562 14,3 .250 6,4 1.250 31,7 3102 3103 DPT-1250 1.375 34,9 .562 14,3 .250 6,4 1.375 34,9 3106 3107 DPT-1375 1.500 38,1 .562 14,3 .250 6,4 1.500 38,1 3048 3049 DPT-1500 1.671 42,4 .562 14,3 .250 6,4 1.750 44,5 3027 3028 DPT-1750 1.906 48,4 .562 14,3 .250 6,4 2.000 50,8 3050 3051 DPT-2000 2.170 55,1 .580 14,7 Standard color black. Consult Heyco for other colors. Locking fingers in fractional increments up to the maximum panel thickness. Approximate Head Thickness: .063½ (1,6 mm). Thickness may vary. *Depicts single panel design. B A
