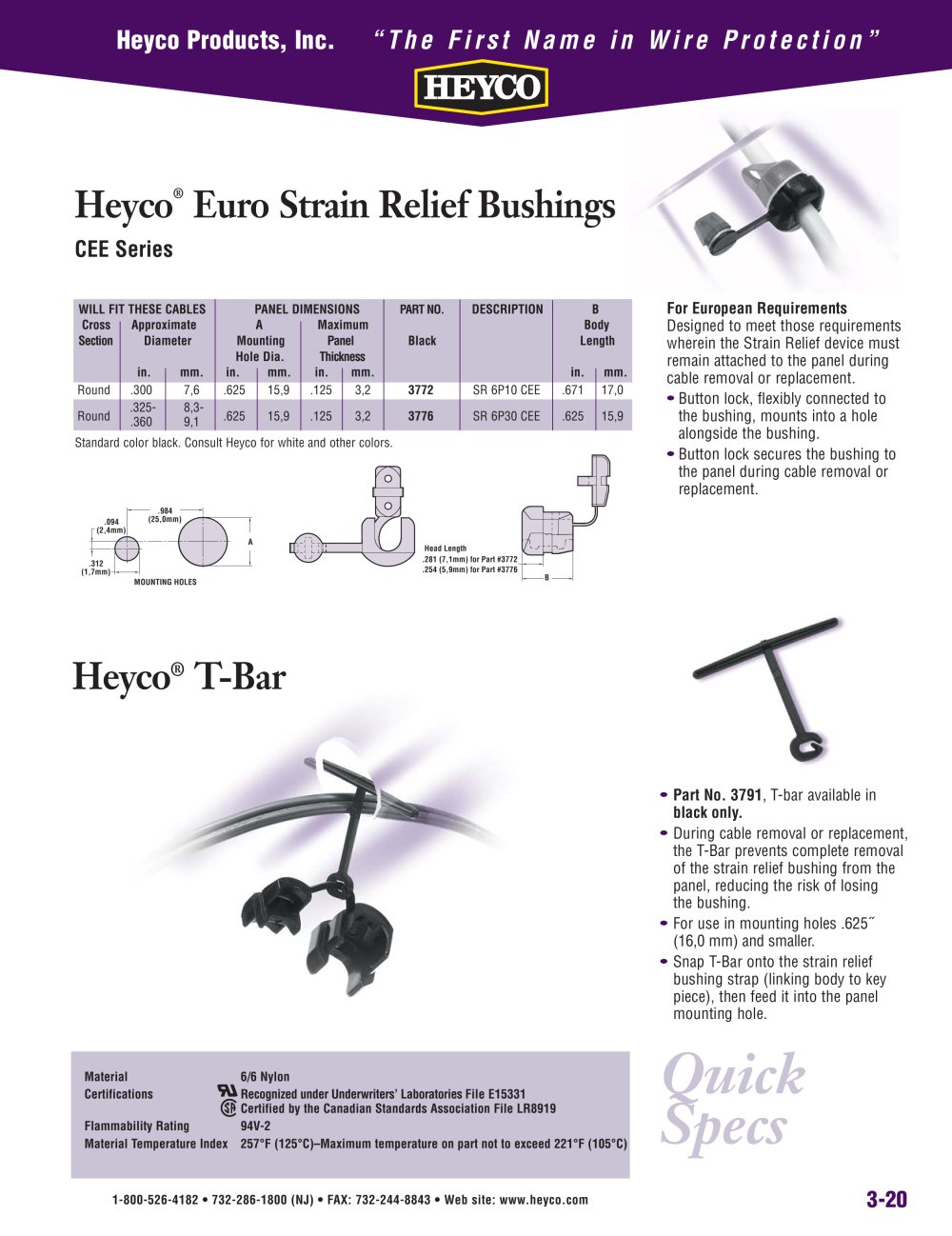

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 3-20 Quick Specs Heyco® T-Bar • Part No. 3791, T-bar available in black only. • During cable removal or replacement, the T-Bar prevents complete removal of the strain relief bushing from the panel, reducing the risk of losing the bushing. • For use in mounting holes .625½ (16,0 mm) and smaller. • Snap T-Bar onto the strain relief bushing strap (linking body to key piece), then feed it into the panel mounting hole. Heyco® Euro Strain Relief Bushings CEE Series WILL FIT THESE CABLES PANEL DIMENSIONS PART NO. DESCRIPTION B Cross Approximate A Maximum Body Section Diameter Mounting Panel Black Length Hole Dia. Thickness in. mm. in. mm. in. mm. in. mm. Round .300 7,6 .625 15,9 .125 3,2 3772 SR 6P10 CEE .671 17,0 Round .325- 8,3- .360 9,1 .625 15,9 .125 3,2 3776 SR 6P30 CEE .625 15,9 Standard color black. Consult Heyco for white and other colors. Material 6/6 Nylon Certifications Recognized under Underwriters’ Laboratories File E15331 Certified by the Canadian Standards Association File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) MOUNTING HOLES B .984 .094 (25,0mm) (2,4mm) A .281 (7,1mm) for Part #3772 .254 (5,9mm) for Part #3776 .312 (1,7mm) Head Length For European Requirements Designed to meet those requirements wherein the Strain Relief device must remain attached to the panel during cable removal or replacement. • Button lock, flexibly connected to the bushing, mounts into a hole alongside the bushing. • Button lock secures the bushing to the panel during cable removal or replacement.
