Heyco® Standard Appliance Terminal Blocks
1Pages

{{requestButtons}}

Catalog excerpts

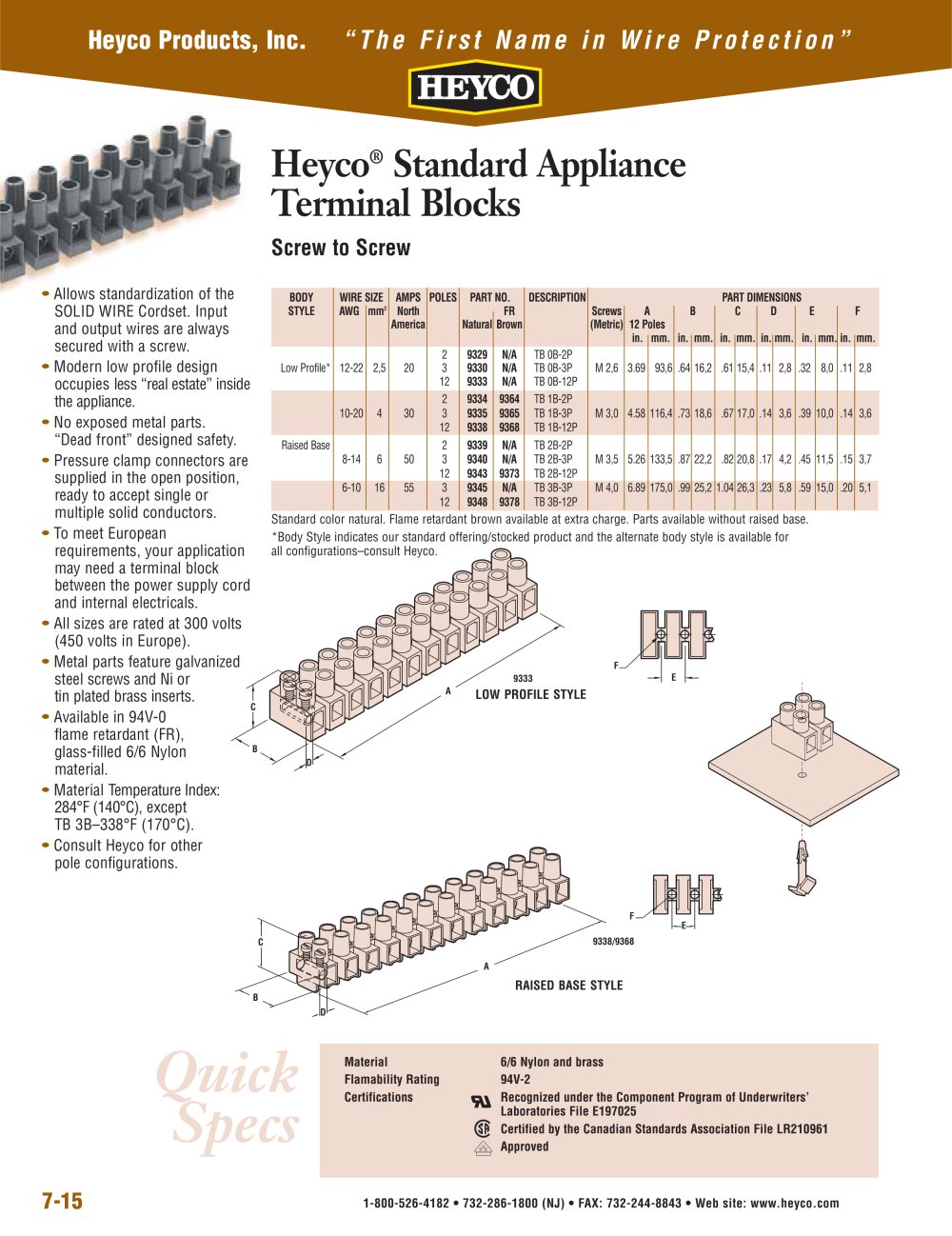

Heyco® Standard Appliance Terminal Blocks - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 7-15 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco® Standard Appliance Terminal Blocks Screw to Screw • Allows standardization of the SOLID WIRE Cordset. Input and output wires are always secured with a screw. • Modern low profile design occupies less “real estate” inside the appliance. • No exposed metal parts. “Dead front” designed safety. • Pressure clamp connectors are supplied in the open position, ready to accept single or multiple solid conductors. • To meet European requirements, your application may need a terminal block between the power supply cord and internal electricals. • All sizes are rated at 300 volts (450 volts in Europe). • Metal parts feature galvanized steel screws and Ni or tin plated brass inserts. • Available in 94V-0 flame retardant (FR), glass-filled 6/6 Nylon material. • Material Temperature Index: 284°F (140°C), except TB 3B–338°F (170°C). • Consult Heyco for other pole configurations. BODY WIRE SIZE AMPS POLES PART NO. DESCRIPTION PART DIMENSIONS STYLE AWG mm2 North FR Screws A B C D E F America Natural Brown (Metric) 12 Poles in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. 2 9329 N/A TB 0B-2P Low Profile* 12-22 2,5 20 3 9330 N/A TB 0B-3P M 2,6 3.69 93,6 .64 16,2 .61 15,4 .11 2,8 .32 8,0 .11 2,8 12 9333 N/A TB 0B-12P 2 9334 9364 TB 1B-2P 10-20 4 30 3 9335 9365 TB 1B-3P M 3,0 4.58 116,4 .73 18,6 .67 17,0 .14 3,6 .39 10,0 .14 3,6 12 9338 9368 TB 1B-12P Raised Base 2 9339 N/A TB 2B-2P 8-14 6 50 3 9340 N/A TB 2B-3P M 3,5 5.26 133,5 .87 22,2 .82 20,8 .17 4,2 .45 11,5 .15 3,7 12 9343 9373 TB 2B-12P 6-10 16 55 3 9345 N/A TB 3B-3P M 4,0 6.89 175,0 .99 25,2 1.04 26,3 .23 5,8 .59 15,0 .20 5,1 12 9348 9378 TB 3B-12P Standard color natural. Flame retardant brown available at extra charge. Parts available without raised base. *Body Style indicates our standard offering/stocked product and the alternate body style is available for all configurations–consult Heyco. A B C D 9338/9368 F E E F A B D C 9333 LOW PROFILE STYLE RAISED BASE STYLE Material 6/6 Nylon and brass Flamability Rating 94V-2 Certifications Recognized under the Component Program of Underwriters’ Laboratories File E197025 Certified by the Canadian Standards Association File LR210961 DVE Approved Quick Specs
