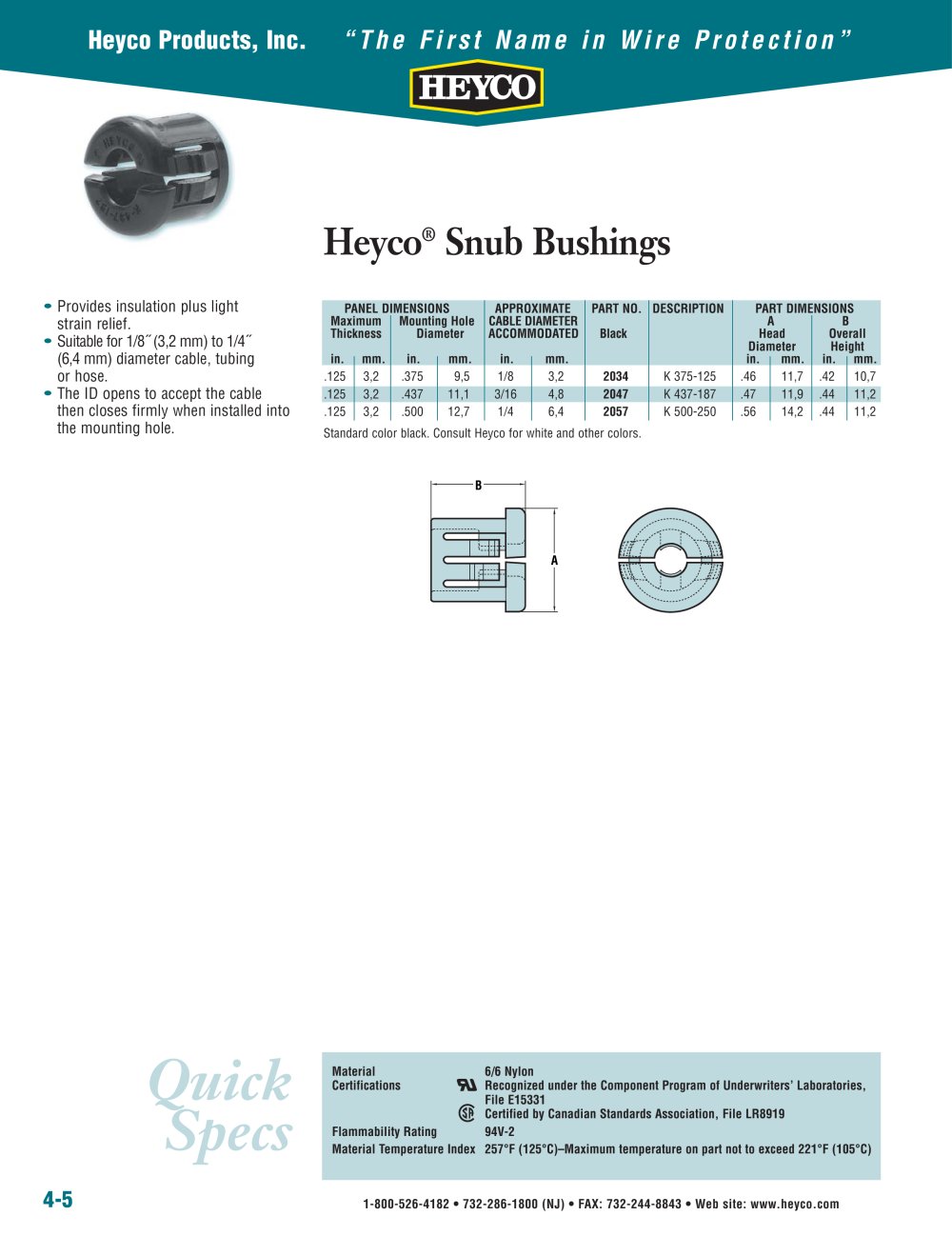

Heyco® Snub Bushings
1 / 1 PageView full catalog
Heyco® Snub Bushings
Product catalog summary
Material Specifications
Material used is 6/6 Nylon, recognized under the Component Program of Underwriters’ Laboratories (File E15331) and certified by the Canadian Standards Association (File LR8919). The flammability rating is 94V-2, with a material temperature index of 257°F (125°C), and the maximum temperature on the part should not exceed 221°F (105°C).
Material used is 6/6 Nylon, recognized under the Component Program of Underwriters’ Laboratories (File E15331) and certified by the Canadian Standards Association (File LR8919). The flammability rating is 94V-2, with a material temperature index of 257°F (125°C), and the maximum temperature on the part should not exceed 221°F (105°C).
Product Overview: Heyco® Snub Bushings
These bushings provide insulation and light strain relief, suitable for cables, tubing, or hoses with diameters ranging from 1/8˝ (3.2 mm) to 1/4˝ (6.4 mm). The internal diameter opens to accept the cable and closes firmly when installed into the mounting hole.
These bushings provide insulation and light strain relief, suitable for cables, tubing, or hoses with diameters ranging from 1/8˝ (3.2 mm) to 1/4˝ (6.4 mm). The internal diameter opens to accept the cable and closes firmly when installed into the mounting hole.
Panel Dimensions and Part Specifications
- For a maximum panel thickness of 0.125 inches (3.2 mm) and a mounting hole diameter of 0.375 inches (9.5 mm), the cable diameter accommodated is 1/8 inches (3.2 mm). Part number: 2034 K 375-125, with a head diameter of 0.46 inches (11.7 mm) and an overall height of 0.42 inches (10.7 mm).
- For a mounting hole diameter of 0.437 inches (11.1 mm), the cable diameter accommodated is 3/16 inches (4.8 mm). Part number: 2047 K 437-187, with a head diameter of 0.47 inches (11.9 mm) and an overall height of 0.44 inches (11.2 mm).
- For a mounting hole diameter of 0.500 inches (12.7 mm), the cable diameter accommodated is 1/4 inches (6.4 mm). Part number: 2057 K 500-250, with a head diameter of 0.56 inches (14.2 mm) and an overall height of 0.44 inches (11.2 mm).
