Heyco® Snap Lock Cable Clamps

Heyco® Snap Lock Cable Clamps
1Pages

Catalog excerpts

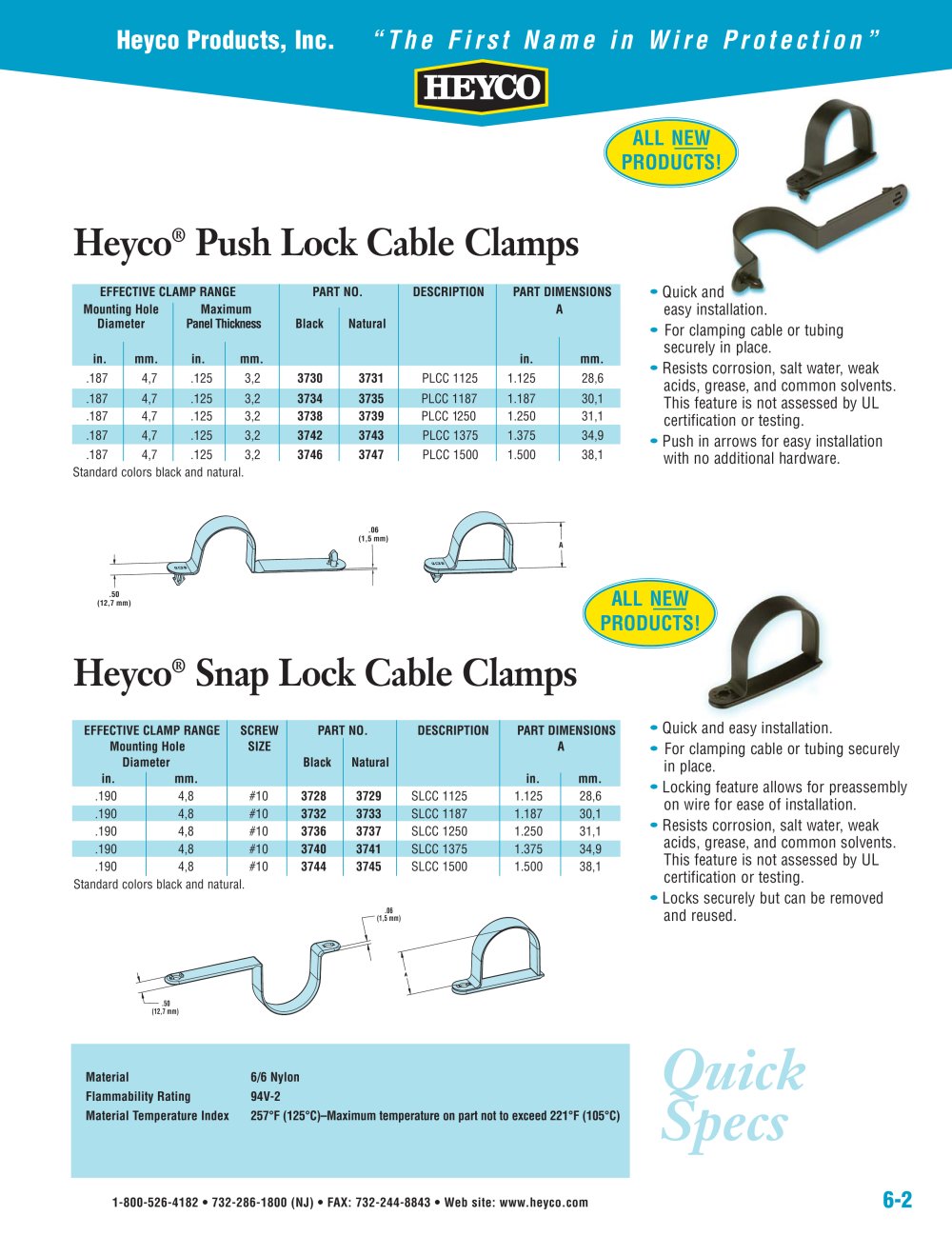

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-2 Quick Specs Heyco® Push Lock Cable Clamps EFFECTIVE CLAMP RANGE PART NO. DESCRIPTION PART DIMENSIONS Mounting Hole Maximum A Diameter Panel Thickness Black Natural in. mm. in. mm. in. mm. .187 4,7 .125 3,2 3730 3731 PLCC 1125 1.125 28,6 .187 4,7 .125 3,2 3734 3735 PLCC 1187 1.187 30,1 .187 4,7 .125 3,2 3738 3739 PLCC 1250 1.250 31,1 .187 4,7 .125 3,2 3742 3743 PLCC 1375 1.375 34,9 .187 4,7 .125 3,2 3746 3747 PLCC 1500 1.500 38,1 Standard colors black and natural. • Quick and easy installation. • For clamping cable or tubing securely in place. • Resists corrosion, salt water, weak acids, grease, and common solvents. This feature is not assessed by UL certification or testing. • Push in arrows for easy installation with no additional hardware. Material 6/6 Nylon Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) EFFECTIVE CLAMP RANGE SCREW PART NO. DESCRIPTION PART DIMENSIONS Mounting Hole SIZE A Diameter Black Natural in. mm. in. mm. .190 4,8 #10 3728 3729 SLCC 1125 1.125 28,6 .190 4,8 #10 3732 3733 SLCC 1187 1.187 30,1 .190 4,8 #10 3736 3737 SLCC 1250 1.250 31,1 .190 4,8 #10 3740 3741 SLCC 1375 1.375 34,9 .190 4,8 #10 3744 3745 SLCC 1500 1.500 38,1 Standard colors black and natural. • Quick and easy installation. • For clamping cable or tubing securely in place. • Locking feature allows for preassembly on wire for ease of installation. • Resists corrosion, salt water, weak acids, grease, and common solvents. This feature is not assessed by UL certification or testing. • Locks securely but can be removed and reused. A .50 (12,7 mm) .06 (1,5 mm) Heyco® Snap Lock Cable Clamps .50 (12,7 mm) .06 (1,5 mm) A ALL NEW PRODUCTS! ALL NEW PRODUCTS!

Open the catalog to page 1
