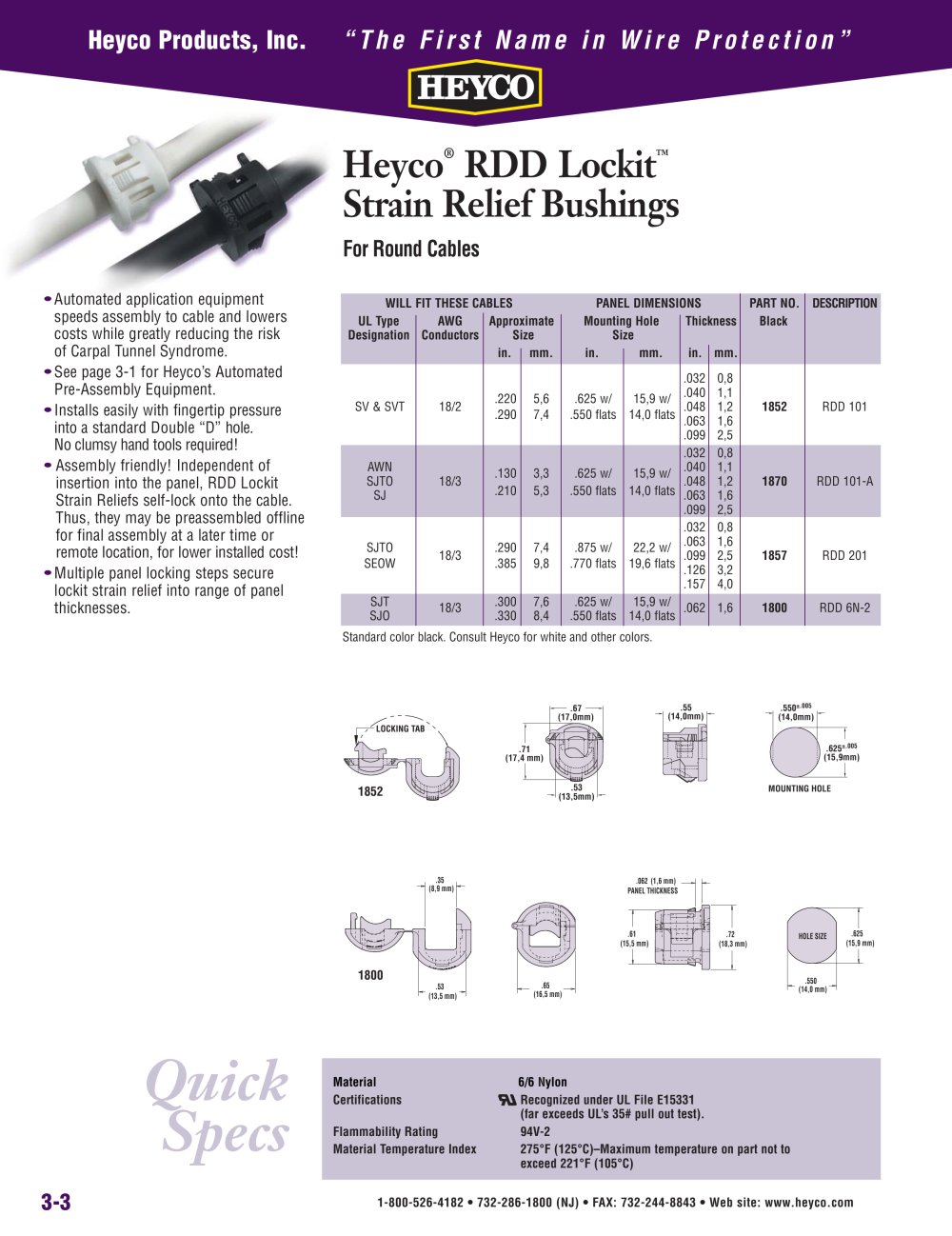

Heyco® RDD Lockit™ Strain Relief Bushings
Product catalog summary
Product Overview: Heyco RDD Lockit™ Strain Relief Bushings are designed for round cables, providing secure and efficient cable management. They are suitable for various cable types, including SV, SVT, AWN, SJTO, SJ, SEOW, and SJT, with different AWG sizes.
Specifications: The bushings fit cables with specific panel dimensions and thicknesses. They are made from 6/6 Nylon, recognized under UL File E15331, and have a flammability rating of 94V-2. The material temperature index is 275°F (125°C), with a maximum part temperature of 221°F (105°C).
Features: The bushings can be installed easily with fingertip pressure into a standard Double “D” hole, eliminating the need for hand tools. They are assembly-friendly, allowing preassembly offline for later installation, reducing costs. Multiple panel locking steps ensure secure attachment across various panel thicknesses.
Benefits: Automated application equipment enhances assembly speed and reduces costs, minimizing the risk of Carpal Tunnel Syndrome. The bushings self-lock onto cables independently of panel insertion, offering flexibility in assembly timing and location.
Additional Information: Standard color is black, with options for white and other colors available upon consultation with Heyco. For more details on automated pre-assembly equipment, refer to page 3-1 of the document.
