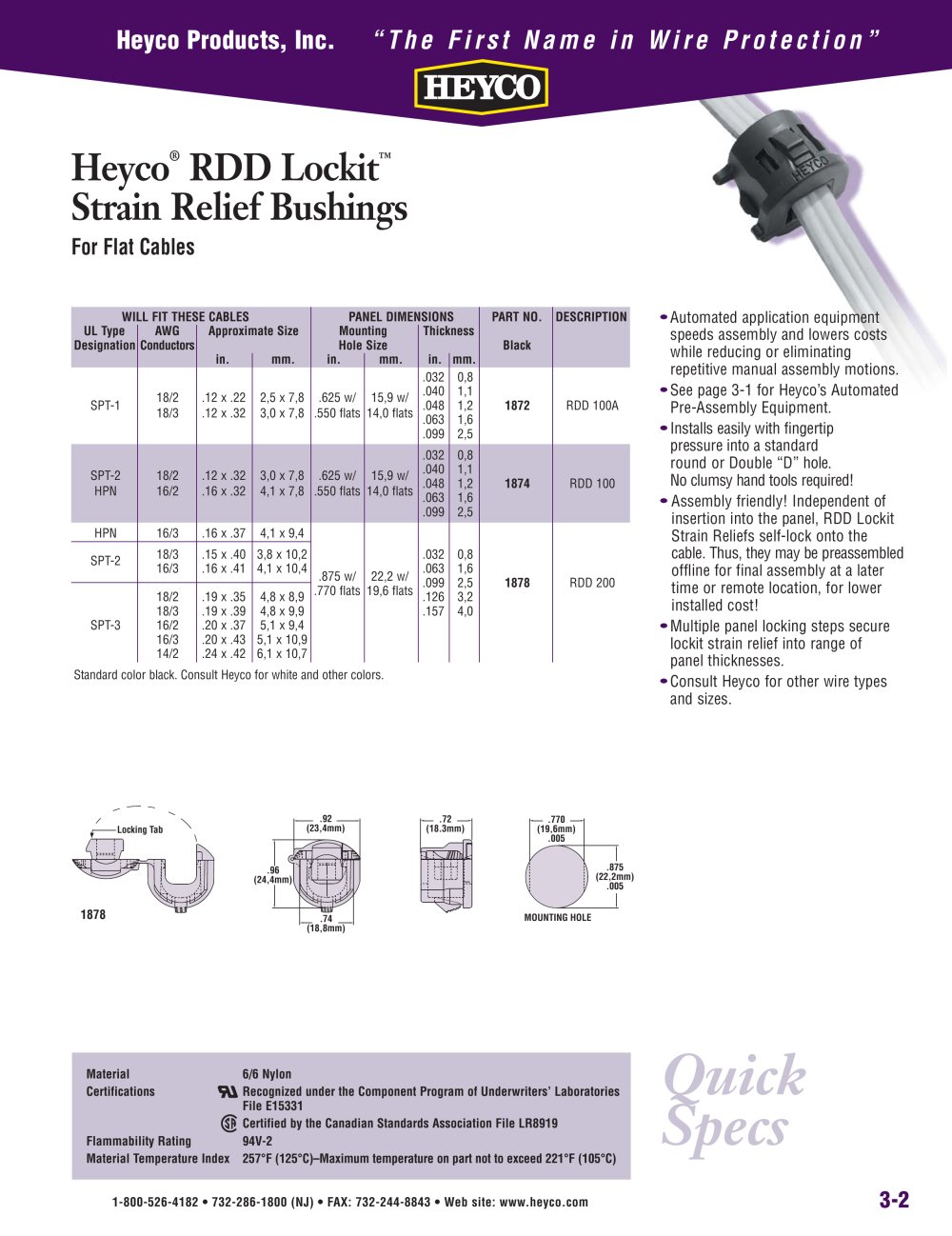

Heyco® RDD Lockit™ Strain Relief Bushings
1 / 1 PageView full catalog
Heyco® RDD Lockit™ Strain Relief Bushings
Product catalog summary
Specifications:
Heyco RDD Lockit Strain Relief Bushings are designed for flat cables and are available in standard black color, with options for white and other colors upon consultation. They are made from 6/6 Nylon and have a flammability rating of 94V-2. The material temperature index is 257°F (125°C), with a maximum part temperature not exceeding 221°F (105°C).
Certifications:
The bushings are recognized under the Component Program of Underwriters’ Laboratories (File E15331) and certified by the Canadian Standards Association (File LR8919).
Procedures:
The bushings can be installed easily with fingertip pressure into standard round or Double “D” holes, eliminating the need for hand tools. They are assembly-friendly, allowing for preassembly offline for later or remote final assembly, reducing installed costs.
Recommendations:
Automated application equipment is recommended to speed up assembly, lower costs, and reduce repetitive manual motions. Multiple panel locking steps secure the strain relief into a range of panel thicknesses.
Key Data from Tables:
The document provides detailed specifications for various cable types, including UL Type, AWG, approximate size, mounting hole size, and panel thickness. For example, for SPT-1 18/2 cables, the approximate size is .12 x .22 inches (2.5 x 7.8 mm), with a mounting hole size of .625 inches (15.9 mm) and a panel thickness of .032 inches (0.8 mm).
Heyco RDD Lockit Strain Relief Bushings are designed for flat cables and are available in standard black color, with options for white and other colors upon consultation. They are made from 6/6 Nylon and have a flammability rating of 94V-2. The material temperature index is 257°F (125°C), with a maximum part temperature not exceeding 221°F (105°C).
Certifications:
The bushings are recognized under the Component Program of Underwriters’ Laboratories (File E15331) and certified by the Canadian Standards Association (File LR8919).
Procedures:
The bushings can be installed easily with fingertip pressure into standard round or Double “D” holes, eliminating the need for hand tools. They are assembly-friendly, allowing for preassembly offline for later or remote final assembly, reducing installed costs.
Recommendations:
Automated application equipment is recommended to speed up assembly, lower costs, and reduce repetitive manual motions. Multiple panel locking steps secure the strain relief into a range of panel thicknesses.
Key Data from Tables:
The document provides detailed specifications for various cable types, including UL Type, AWG, approximate size, mounting hole size, and panel thickness. For example, for SPT-1 18/2 cables, the approximate size is .12 x .22 inches (2.5 x 7.8 mm), with a mounting hole size of .625 inches (15.9 mm) and a panel thickness of .032 inches (0.8 mm).
