Heyco® Quick Connect Terminals Flag Insulation Support Terminals

Heyco® Quick Connect Terminals Flag Insulation Support Terminals
1Pages

Catalog excerpts

Heyco® Quick Connect Terminals Flag Insulation Support Terminals - 1

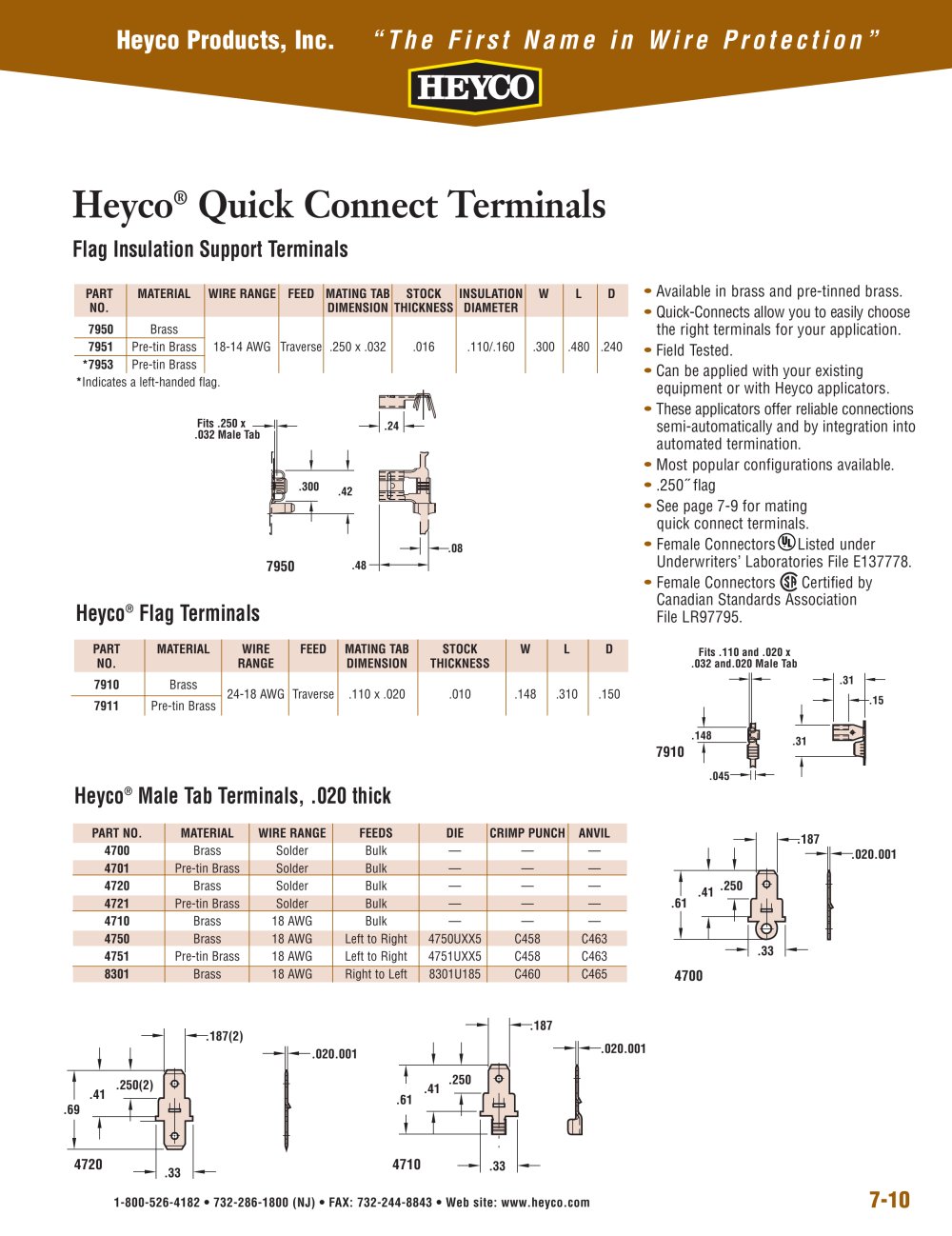

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 7-10 Heyco® Male Tab Terminals, .020 thick PART NO. MATERIAL WIRE RANGE FEEDS DIE CRIMP PUNCH ANVIL 4700 Brass Solder Bulk — — — 4701 Pre-tin Brass Solder Bulk — — — 4720 Brass Solder Bulk — — — 4721 Pre-tin Brass Solder Bulk — — — 4710 Brass 18 AWG Bulk — — — 4750 Brass 18 AWG Left to Right 4750UXX5 C458 C463 4751 Pre-tin Brass 18 AWG Left to Right 4751UXX5 C458 C463 8301 Brass 18 AWG Right to Left 8301U185 C460 C465 .33 .41 .250 .187 .020.001 .61 4700 .250 .41 .187 .020.001 .33 .61 .69 .33 .250(2) .41 .187(2) .020.001 4720 4710 PART MATERIAL WIRE RANGE FEED MATING TAB STOCK INSULATION W L D NO. DIMENSION THICKNESS DIAMETER 7950 Brass 7951 Pre-tin Brass 18-14 AWG Traverse .250 x .032 .016 .110/.160 .300 .480 .240 *7953 Pre-tin Brass *Indicates a left-handed flag. Fits .250 x .032 Male Tab .24 .08 .48 .300 .42 7950 Fits .110 and .020 x .032 and.020 Male Tab .15 .31 .31 .045 .148 7910 PART MATERIAL WIRE FEED MATING TAB STOCK W L D NO. RANGE DIMENSION THICKNESS 7910 Brass 24-18 AWG Traverse .110 x .020 .010 .148 .310 .150 7911 Pre-tin Brass Heyco® Flag Terminals • Available in brass and pre-tinned brass. • Quick-Connects allow you to easily choose the right terminals for your application. • Field Tested. • Can be applied with your existing equipment or with Heyco applicators. • These applicators offer reliable connections semi-automatically and by integration into automated termination. • Most popular configurations available. • .250½ flag • See page 7-9 for mating quick connect terminals. • Female Connectors Listed under Underwriters’ Laboratories File E137778. • Female Connectors Certified by Canadian Standards Association File LR97795. Heyco® Quick Connect Terminals Flag Insulation Support Terminals
