Heyco® Preassembled Cordset Components

Heyco® Preassembled Cordset Components

Product catalog summary

Overview: Heyco Products, Inc. offers a Tri-Tap Premold solution designed to enhance wire protection and efficiency in extension cord assembly. The product significantly reduces the number of crimp connections and material usage, thereby decreasing cycle time and cost.

Specifications:

Material: 6/6 Nylon
Rating: 125 Volts, 15 amps

Key Features:

Reduces crimp connections from 9 to 3, allowing simultaneous crimping of all terminals.
Available in both assembled and component forms.
Requires the use of Heyco Contacts in Heyco pre-molds.

Components:

S7400 includes Premold Body, Premold Cover, T-tap Blades, and T-tap Ground.
S7403 includes Premold Body, Premold Cover, T-tap Blades (18-14 AWG), and T-tap Ground (18-14 AWG).

Crimping Tools:

S7400 Female Receptacle Black for 14-10 AWG with specific die, crimp, punch, and anvil tools.
S7403 Female Receptacle Black for 18-14 AWG with specific die, crimp, punch, and anvil tools.

Additional Information: Terminating equipment is available as referenced on page 7-11 of the catalog.

Catalog excerpts

Heyco® Preassembled Cordset Components-1

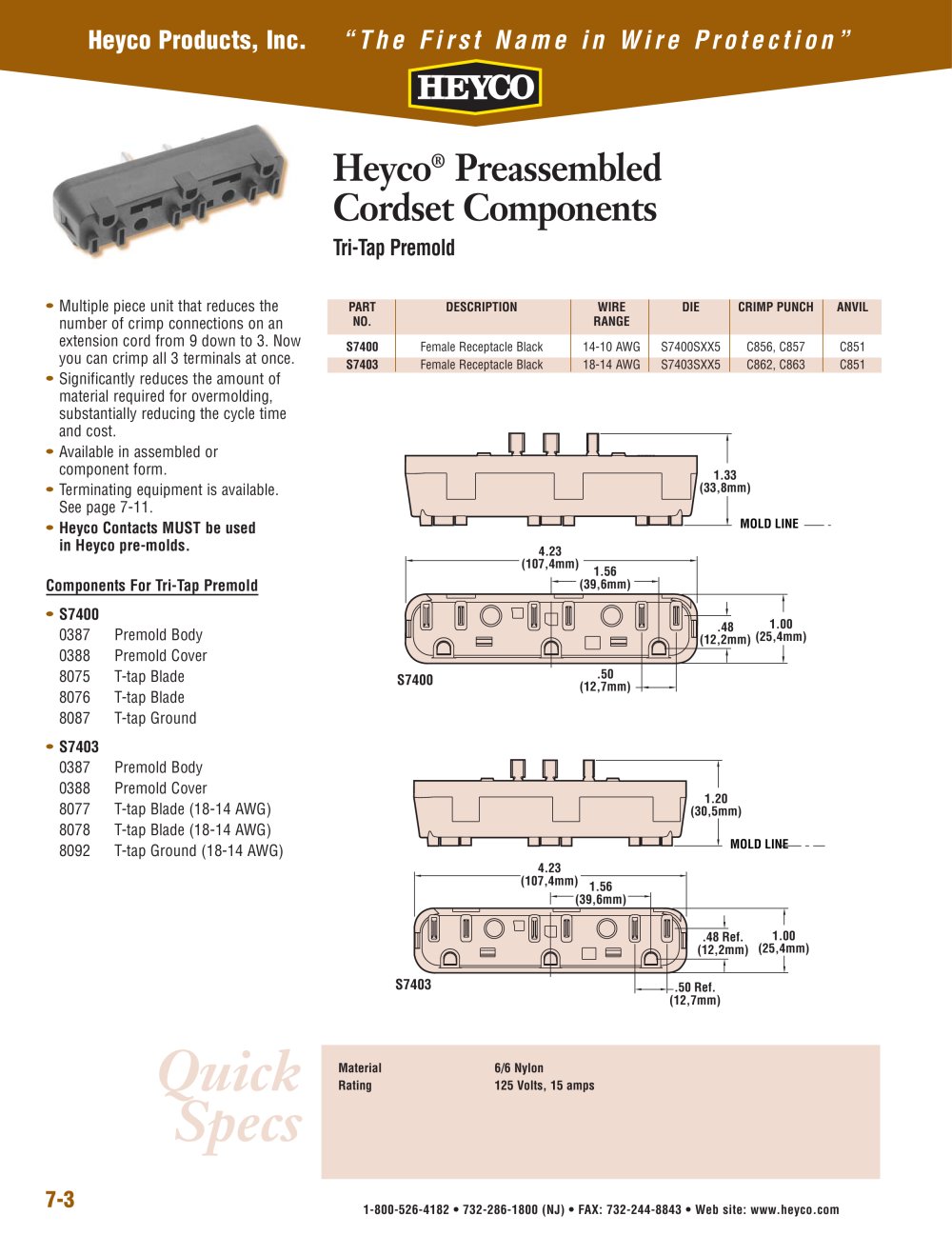

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 7-3 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com .50 (12,7mm) 1.33 (33,8mm) MOLD LINE 1.00 (25,4mm) .48 (12,2mm) 1.56 (39,6mm) 4.23 (107,4mm) • Multiple piece unit that reduces the number of crimp connections on an extension cord from 9 down to 3. Now you can crimp all 3 terminals at once. • Significantly reduces the amount of material required for overmolding, substantially reducing the cycle time and cost. • Available in assembled or component form. • Terminating equipment is available. See page 7-11. • Heyco Contacts MUST be used in Heyco pre-molds. Components For Tri-Tap Premold • S7400 0387 Premold Body 0388 Premold Cover 8075 T-tap Blade 8076 T-tap Blade 8087 T-tap Ground • S7403 0387 Premold Body 0388 Premold Cover 8077 T-tap Blade (18-14 AWG) 8078 T-tap Blade (18-14 AWG) 8092 T-tap Ground (18-14 AWG) S7400 PART DESCRIPTION WIRE DIE CRIMP PUNCH ANVIL NO. RANGE S7400 Female Receptacle Black 14-10 AWG S7400SXX5 C856, C857 C851 S7403 Female Receptacle Black 18-14 AWG S7403SXX5 C862, C863 C851 Heyco® Preassembled Cordset Components Tri-Tap Premold Quick Specs Material 6/6 Nylon Rating 125 Volts, 15 amps 1.20 (30,5mm) MOLD LINE .50 Ref. (12,7mm) 1.00 (25,4mm) .48 Ref. (12,2mm) 1.56 (39,6mm) 4.23 (107,4mm) S7403
