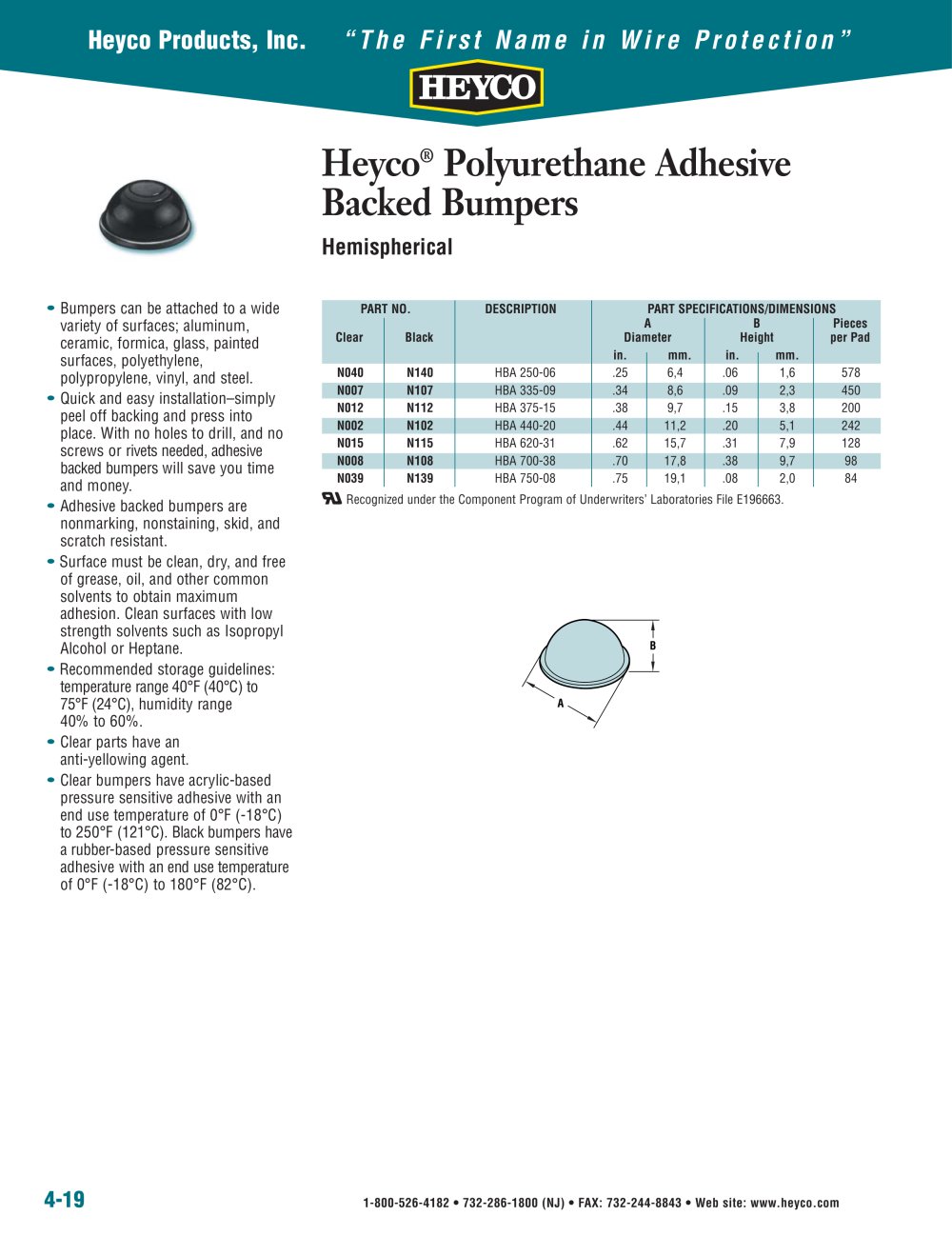

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 4-19 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco® Polyurethane Adhesive Backed Bumpers Hemispherical • Bumpers can be attached to a wide variety of surfaces; aluminum, ceramic, formica, glass, painted surfaces, polyethylene, polypropylene, vinyl, and steel. • Quick and easy installation–simply peel off backing and press into place. With no holes to drill, and no screws or rivets needed, adhesive backed bumpers will save you time and money. • Adhesive backed bumpers are nonmarking, nonstaining, skid, and scratch resistant. • Surface must be clean, dry, and free of grease, oil, and other common solvents to obtain maximum adhesion. Clean surfaces with low strength solvents such as Isopropyl Alcohol or Heptane. • Recommended storage guidelines: temperature range 40°F (40°C) to 75°F (24°C), humidity range 40% to 60%. • Clear parts have an anti-yellowing agent. • Clear bumpers have acrylic-based pressure sensitive adhesive with an end use temperature of 0°F (-18°C) to 250°F (121°C). Black bumpers have a rubber-based pressure sensitive adhesive with an end use temperature of 0°F (-18°C) to 180°F (82°C). PART NO. DESCRIPTION PART SPECIFICATIONS/DIMENSIONS A B Pieces Clear Black Diameter Height per Pad in. mm. in. mm. N040 N140 HBA 250-06 .25 6,4 .06 1,6 578 N007 N107 HBA 335-09 .34 8,6 .09 2,3 450 N012 N112 HBA 375-15 .38 9,7 .15 3,8 200 N002 N102 HBA 440-20 .44 11,2 .20 5,1 242 N015 N115 HBA 620-31 .62 15,7 .31 7,9 128 N008 N108 HBA 700-38 .70 17,8 .38 9,7 98 N039 N139 HBA 750-08 .75 19,1 .08 2,0 84 Recognized under the Component Program of Underwriters’ Laboratories File E196663. A B
