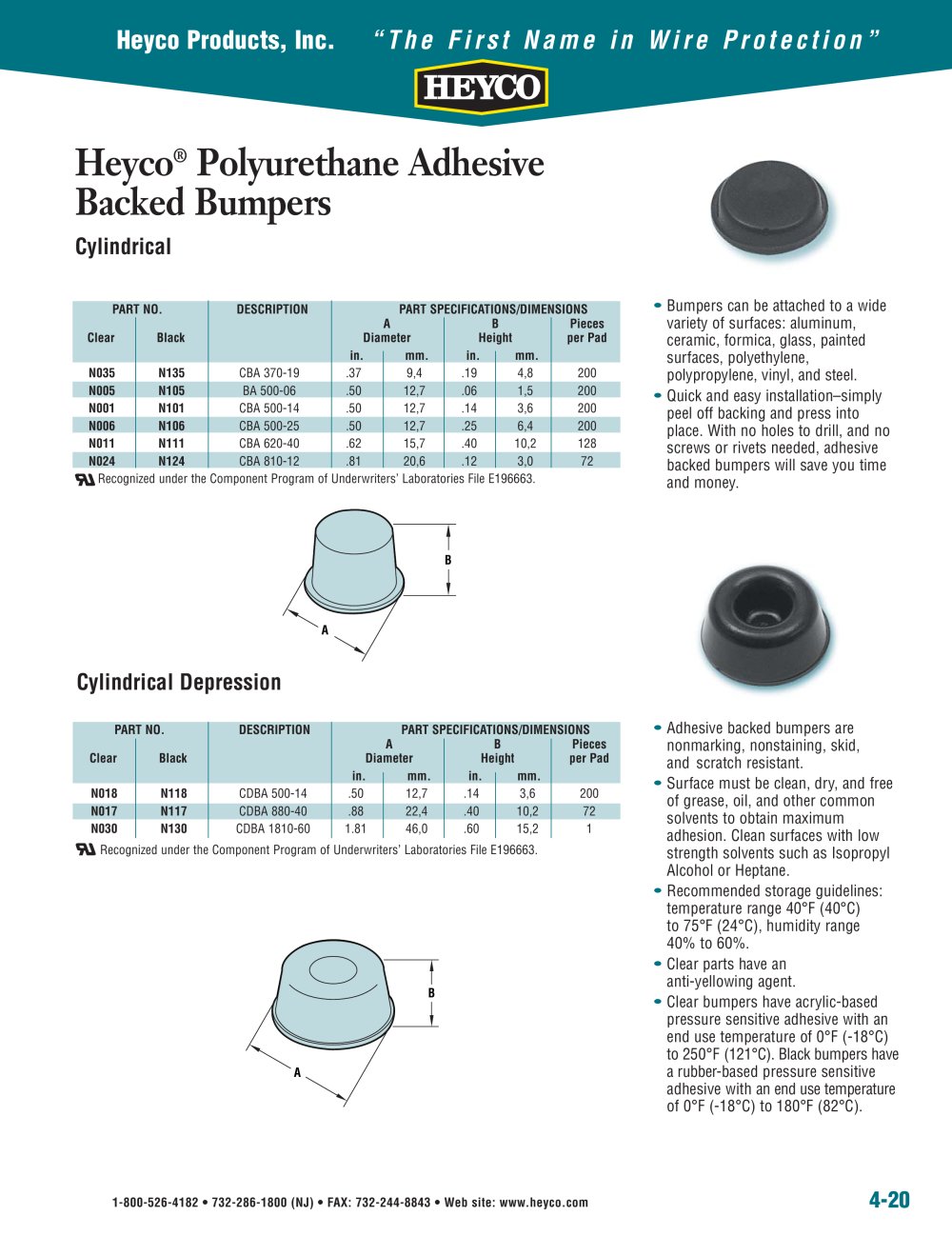

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 4-20 Cylindrical Depression Heyco® Polyurethane Adhesive Backed Bumpers Cylindrical A B A B • Bumpers can be attached to a wide variety of surfaces: aluminum, ceramic, formica, glass, painted surfaces, polyethylene, polypropylene, vinyl, and steel. • Quick and easy installation–simply peel off backing and press into place. With no holes to drill, and no screws or rivets needed, adhesive backed bumpers will save you time and money. • Adhesive backed bumpers are nonmarking, nonstaining, skid, and scratch resistant. • Surface must be clean, dry, and free of grease, oil, and other common solvents to obtain maximum adhesion. Clean surfaces with low strength solvents such as Isopropyl Alcohol or Heptane. • Recommended storage guidelines: temperature range 40°F (40°C) to 75°F (24°C), humidity range 40% to 60%. • Clear parts have an anti-yellowing agent. • Clear bumpers have acrylic-based pressure sensitive adhesive with an end use temperature of 0°F (-18°C) to 250°F (121°C). Black bumpers have a rubber-based pressure sensitive adhesive with an end use temperature of 0°F (-18°C) to 180°F (82°C). PART NO. DESCRIPTION PART SPECIFICATIONS/DIMENSIONS A B Pieces Clear Black Diameter Height per Pad in. mm. in. mm. N018 N118 CDBA 500-14 .50 12,7 .14 3,6 200 N017 N117 CDBA 880-40 .88 22,4 .40 10,2 72 N030 N130 CDBA 1810-60 1.81 46,0 .60 15,2 1 Recognized under the Component Program of Underwriters’ Laboratories File E196663. PART NO. DESCRIPTION PART SPECIFICATIONS/DIMENSIONS A B Pieces Clear Black Diameter Height per Pad in. mm. in. mm. N035 N135 CBA 370-19 .37 9,4 .19 4,8 200 N005 N105 BA 500-06 .50 12,7 .06 1,5 200 N001 N101 CBA 500-14 .50 12,7 .14 3,6 200 N006 N106 CBA 500-25 .50 12,7 .25 6,4 200 N011 N111 CBA 620-40 .62 15,7 .40 10,2 128 N024 N124 CBA 810-12 .81 20,6 .12 3,0 72 Recognized under the Component Program of Underwriters’ Laboratories File E196663.
