Heyco® Open/Closed Universal Bushings

Heyco® Open/Closed Universal Bushings
1 / 1 PageView full catalog

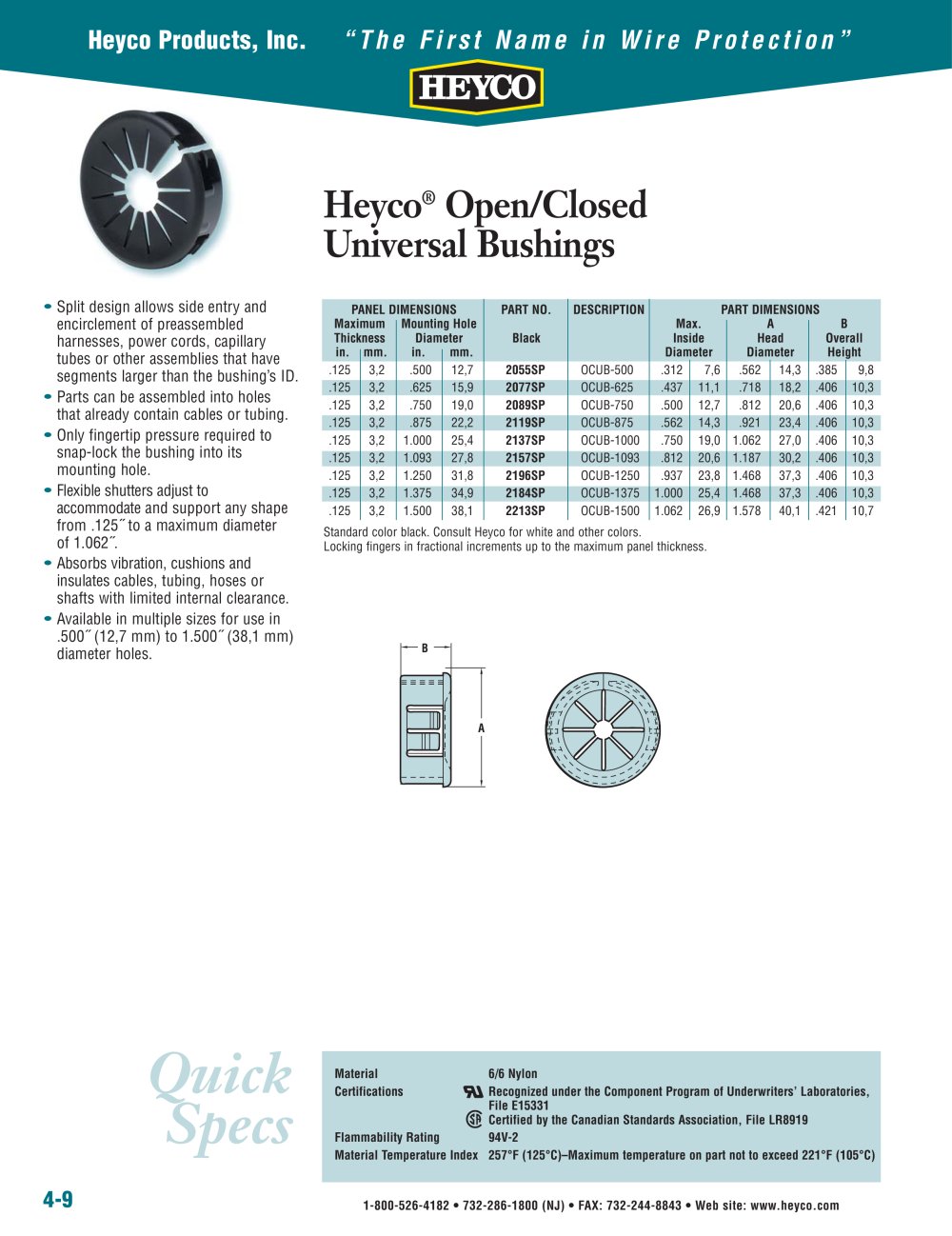

Heyco® Open/Closed Universal Bushings

Product catalog summary
Product Overview: Heyco Products, Inc. offers Open/Closed Universal Bushings designed for wire protection. These bushings feature a split design allowing for side entry and encirclement of preassembled harnesses, power cords, capillary tubes, or other assemblies with segments larger than the bushing's internal diameter.
Key Specifications:
  • Easy assembly with fingertip pressure to snap-lock into mounting holes.
  • Flexible shutters accommodate shapes from 0.125" to 1.062" in diameter.
  • Absorbs vibration and insulates cables, tubing, hoses, or shafts.
  • Available for hole diameters ranging from 0.500" (12.7 mm) to 1.500" (38.1 mm).
Material and Certifications:
  • Made from 6/6 Nylon.
  • Recognized under the Component Program of Underwriters’ Laboratories, File E15331.
  • Certified by the Canadian Standards Association, File LR8919.
  • Flammability Rating: 94V-2.
  • Material Temperature Index: 257°F (125°C), with a maximum part temperature of 221°F (105°C).
Product Dimensions: The bushings are available in various sizes, with specific part numbers and dimensions provided for each size. The standard color is black, with options for white and other colors upon consultation with Heyco.
See more
